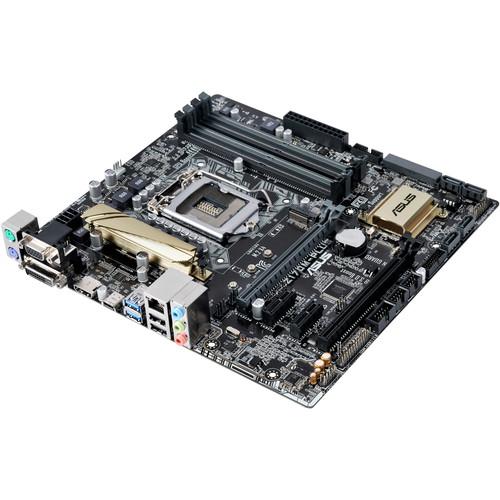

The ASUS Z170M-PLUS Micro-ATX Motherboard offers support for Intel's 6th-generation processors and the Z170 chipset. It comes with four DDR4 DIMM slots that hold up to 64GB of RAM, which can be overclocked to 3466 MHz. The single onboard M.2 connector operates on the PCI Express lanes to deliver a 32 Gb/s data transfer speed. To support storage and optical drives, this motherboard provides six SATA 6 Gb/s connectors. In addition, you get a SATA Express connector that is backwards compatible with up to two SATA drives.
This Z170M-PLUS motherboard is outfitted with two PCI Express x16 slots for supporting dedicated graphics cards in an AMD CrossFireX configuration. In addition, there are two PCIe 3.0 x1 slots. To complete the multimedia experience, this motherboard comes built with Realtek ALC887 that offers immersive sounds through the three audio jacks. For connecting with printers and external storage drives, it has a total of two USB 3.0 and two USB 2.0 ports, and one of these USB ports is designed with a type-C form factor. It also comes with one PS/2 keyboard port, one PS/2 mouse port, and a single Intel I219V Gigabit LAN port.
If you own a ASUS motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ASUS Z170M-PLUS Micro-ATX Motherboard Z170M-PLUS in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ASUS Z170M-PLUS Micro-ATX Motherboard Z170M-PLUS:
Integrated Intel HD Graphics supported Supports HDMI with max. resolution of 4096 x 2160 @ 24 Hz, 2560 x 1600 @ 60 Hz Supports DVI-D with max. resolution of 1920 x 1200 @ 60 Hz Supports VGA with max. resolution of 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider Supports up to 3 displays simultaneously
Multi-GPU Support
Supports AMD Quad-GPU CrossFireX technology
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 2 x PCIe 3.0/2.0 x1
Storage
Intel Z170 chipset 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices supported (both SATA & PCIE mode) 1 x SATA Express port, gray, compatible with 2 x SATA 6 Gb/s ports 6 x SATA 6 Gb/s ports, gray Supports Raid 0, 1, 5, 10 Supports Intel Smart Response Technology
LAN
Intel I219V Gigabit LAN controller Intel LAN-Dual interconnect between the integrated LAN controller and Physical Layer (PHY)
Audio
Realtek ALC887 8-Channel high-definition audio codec Supports jack-detection and front panel jack retasking
USB
Intel Z170 chipset 6 x USB 3.0/2.0 (2 x USB ports at back panel, blue, type-A, 4 x headers at mid-board) 6 x USB 2.0/1.1 (2 x USB ports at back panel, black, type-A, 4 x headers at mid-board) 1 x USB 5 Gb/s port at back panel, black, type-C, reversible, supports 3A power output)
Supported Features
ASUS 5X Protection II: - ASUS LANGuard - 2.5 X higher surge tolerance - ASUS Overvoltage Protection - circuit-protecting power design - ASUS DIGI+ VRM - 7 phase digital power design - ASUS DRAM Overcurrent Protection - prevents damage from short circuits - ASUS Stainless-Steel Back I/O - 3 X corrosion-resistance for greater durability ASUS EPU ASUS Exclusive Features: - TurboV EVO - GPU Boost - AI Suite 3 - Ai Charger - M.2 & SATA Express - Anti-Surge - ESD Guards - USB 3.0 Boost - Disk Unlocker - Mobo Connect - PC Cleaner ASUS Quiet Thermal Solution: - Fanless design heat-sink solution & MOS heatsink - ASUS Fan Xpert 3 ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Push Notice ASUS Q-Design: - ASUS Q-Slot - ASUS Q-DIMM Media Streamer Audio: - Audio Shielding: Ensures analog/digital separation and reduces multi-lateral interference - Dedicated Audio PCB Layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Japanese-made Audio Capacitors: Provide warm, natural, and immersive sound with clarity and fidelity
Operating Systems Supported
Windows 10 64-bit Windows 8.1 64-bit Windows 7 32/64-bit
Back I/O Ports
1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ-45) 1 x USB 5 Gb/s Type-C (3 A power output) 2 x USB 3.0 (blue) type-A 2 x USB 2.0 3 x Audio jacks
Internal I/O Ports
2 x USB 3.0 connectors support additional 4 x USB 3.0 ports (19-pin) 2 x USB 2.0 connectors support additional 4 x USB 2.0 ports 1 x SATA Express connector: gray, compatible with 2 x SATA 6 Gb/s ports 1 x M.2 Socket 3 1 x LPT header 1 x COM connector 6 x SATA 6 Gb/s connectors 1 x CPU fan connector (1 x 4-pin) 2 x Chassis fan connectors (2 x 4-pin) 1 x S/PDIF out header 1 x 24-pin EATX power connector 1 x 8-pin ATX 12V power connector 1 x Front panel audio connector (AAFP) 1 x System panel 1 x Clear CMOS jumper
BIOS
128 Mb Flash ROM UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
