User manual for the Asustor AS-204T Data Storage Server AS-204T

The user manual for the Asustor AS-204T Data Storage Server AS-204T provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - NAS Enclosures.

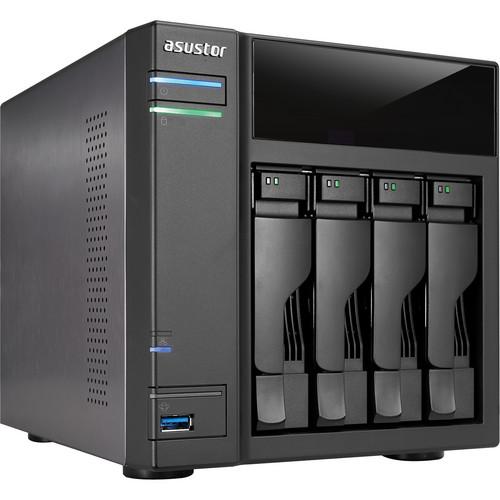

The AS-204T Data Storage Server from ASUSTOR is a full-featured multimedia storage center complete with a 1.2 GHz dual-core Intel Atom processor and 512MB DDR3 RAM. The enclosure is capable of housing both 2.5" and 3.5" SATA II and SATA III hard drives. In addition to hard drive compatibility, you can also take advantage of two USB 3.0 and two USB 2.0 ports to attach USB compatible peripheral devices. Once configured connect this storage server to the Internet via the integrated Gigabit Ethernet port located on the back of the unit.

With an array of intuitive applications you can manage all of your data from virtually anywhere. The web-based file management system gives you access to your files from any compatible web browser while iOS and Android apps allow remote access and management from compatible mobile devices.
If you own a Asustor nas enclosures and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Asustor AS-204T Data Storage Server AS-204T in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Asustor AS-204T Data Storage Server AS-204T:
Specifications
    Processor Intel ATOM 1.2 GHz dual-core processor
    Memory 512 MB DDR3 RAM
    Hard Drive Compatibility 2.5" / 3.5" SATA II/III or SSD
    Expansion 2 x USB 3.0
    2 x USB 2.0
    Network 1 x Gigabit Ethernet
    Output None
    System Fan 1 x 120 mm fan
    Infrared Receiver None
    Audio Jack None
    Input Power 100 - 240 VAC
    Certifications FCC, CE, VCCI, BSMI, C-TICK
    Operating System ADM 2.0 Onwards
    Built-in app central for various apps
    Supported Operating Systems Windows XP, Vista, 7, 8, Server 2003, Server 2008, Server 2012
    Mac OS X 10.6 and higher
    UNIX, Linux, and BSD
    Supported Languages English, German, French, Italian, Dutch, Russian, Japanese, Korean, Chinese, Traditional Chinese, Czech, Polish, Swedish, Danish, Norwegian, Finnish
    Supported Browsers Internet Explorer 9 and up
    FireFox
    Chrome
    Safari
    Network Protocols CIFS/SMB, AFP, NFS, FTP, WebDAV, Rsync, SSH, SFTP, iSCSI, HTTP, HTTPS
    File System Internal Disk: EXT4
    External Disk: FAT32, NTFS, EXT3, EXT4, HFS+
    Storage Management Support for multiple volumes with spare disks
    Volume Type
    Single disk, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
    Support for online RAID level migration
    Support for online RAID capacity expansion
    iSCSI Maximum Targets: 256
    Maximum LUNs: 256
    Target masking
    LUN mapping
    ISO file mounting
    Supports MCS
    Persistent (SCSI-3) reservations
    Disk Management Scheduled bad block scans
    Scheduled S.M.A.R.T scans
    Network TCP/IP (IPv4 & IPv6)
    Jumbo Frame (MTU)
    VLAN
    Cloud Connect
    Wireless Network
    DDNS and EZ-RouterCompatibility
    Supports Wake-on-LAN (WOL)
    Backup Solutions Rsync (remote sync) backup
    Cloud backup
    FTP backup
    External backup
    One touch backup
    System Administration Log Type: system log, connection log, file access log
    Real-time online user monitoring
    Network recycle bin
    User quota
    Virtual drive (ISO mounting, maximum 16)
    UPS support
    Access Control Maximum Number of Users: 4096
    Maximum Number of Groups: 512
    Maximum Number of Shared Folders: 512
    Maximum Number of Concurrent Connections: 512
    Supports Windows Active Directory
    Security AES 256-Bit folder encryption
    Firewall: prevent unauthorized access
    Network Defender: prevent network attacks
    Alert Notifications: E-mail, SMS
    Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
    File Explorer Web-based file management
    ISO file mounting
    Share links
    Surveillance Center Live monitoring (4 free channels)
    Multiple channel playback with audio
    Supported Browsers:
    Internet Explorer, Chrome, FireFox (Windows only)
    Event notification
    UPnP Media Server Supports PS3 and other digital media player capable devices
    Supports on-the-fly transcoding for most RAW images and audio (OGG, FLAC)
    Supported Image Formats:
    BMP, GIF, ICO, JPG, PNG, PSD, TIF, RAW Image⁴ (3FR, ARW, CR2, CRW, DCR, DNG, ERF, KDC, MEF, MOS, MRW, NEF, NRW, ORF, PEF, RAF, RAW, RW2, SR2, X3F)
    Supported Audio Formats:
    3GP, AAC, AC3, AIFC, AIFF, AMR, APE, AU, AWB, FLAC1, M4A, M4R, MP2, MP3, OGG Vorbis1, PCM, WAV, WMA
    Supported Video Formats:
    3GP, 3G2, ASF, AVI, DAT, FLV, ISO, M2T, M2V, M2TS, M4V, MKV, MPv4, MPEG1, MPEG2, MPEG4, MTS, MOV, QT, SWF, TP, TRP, TS, VOB, WMV, RMVB, VDR, MPE
    FTP Explorer Directory structure view with drag & drop transfers
    Task monitor
    Stopping of transmission task and resumption of connection
    Encrypted connections:
    Explicit over TLS, Implicit over TLS
    FTP site manager
    Bandwidth control
    Maximum simultaneous transfer control
    VPN Client Supported VPN Protocols:
    PPTP, OpenVPN
    Transmission package monitor
    PPTP Authentication:
    PAP, CHAP, MS CHAP, MS CHAP2
    PPTP Encryption:
    No MPPE, MPPE (40, 128 bit), maximum MPPE (128 bit)
    OpenVPN port control
    OpenVPN link compression
    iTunes Server For iTunes on Mac and Windows
    Supports AirPlay
    Supports iOS remote pairing
    Supported Audio Formats:
    AIF, M4A (AAC & Apple Loseless), M4P, M4R, MP3, WAV
    Supported Video Formats:
    M4V, MOV, MP4
    Supported Playlist Formats:
    M3U, WPL
    Download Center Supports BT (torrent and management link), HTTP and FTP downloads
    Torrent search
    Choose files before a BT task starts
    Customizable download schedule
    Bandwidth control
    RSS subscription and automatic downloading (broadcatching)
    ASUSTOR download assistant for Windows and Mac
    AiDownload for iOS and Android
    SoundsGood Import personal and public music collections
    Personal and public music collection permission control
    Playlist editor
    ID3 tag editor
    Local Speaker Support:
    USB
    Supported Audio Formats for Browser:
    MP3, WAV, Ogg
    Supported Audio Formats for Transcoding Through Browser:
    AIFF, Flac
    Supported Audio Formats for Local Speaker:
    MP3, WAV, Ogg, AIFF, Flac
    ASUS DAC support
    Operational Specifications
    Power Consumption Operation: 34 W
    Disk Hibernation: 21.5 W
    Sleep Mode: 0.8 W
    Noise Level 19.4 dB
    Operating Temperature 40 to 95°F / 5 to 35°C
    Humidity 5 to 95% RH
    Dimensions (HxWxD) 7.3 x 6.7 x 9.1" / 185.5 x 170.0 x 230.0 mm
    Weight 7.5 lb / 3.4 kg
    Packaging Info
    Package Weight 10.15 lb
    Box Dimensions (LxWxH) 12.7 x 11.8 x 9.5"
    The user manual for the Asustor AS-204T Data Storage Server AS-204T can be downloaded in .pdf format if it did not come with your new nas enclosures, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Asustor users keep a unique electronic library for Asustor nas enclosuress, where you can use our link to download the user manual for the Asustor AS-204T Data Storage Server AS-204T.

    The user manual lists all of the functions of the Asustor AS-204T Data Storage Server AS-204T, all the basic and advanced features and tells you how to use the nas enclosures. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Asustor service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Asustor AS-204T Data Storage Server AS-204T. User manuals are also available on the Asustor website under Computers & Solutions - Drives & Storage - NAS Enclosures.
