User manual ATEN 19" 16-Port LCD USB KVM Switch CL1316N

Operating instructions and pdf manual for use - ATEN 19" 16-Port LCD USB KVM Switch CL1316N User manual, User manual ATEN 19" 16-Port LCD USB KVM Switch CL1316N, ATEN, 19, 16-Port, LCD, USB, KVM, Switch, CL1316N, Video


User manual for ATEN 19" 16-Port LCD USB KVM Switch CL1316N

ATEN  19
  • Manufacturer: ATEN
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - LCD Consoles
  • Safety instructions
  • Startup and operation of the lcd consoles
  • Tips for setting up your ATEN
  • Settings and expert assistance
  • Contact ATEN service
  • Troubleshooting
  • Warranty information
ATEN  19 ATEN  19
Click to enlarge image

We recommend checking out our discussion threads on the ATEN 19" 16-Port LCD USB KVM Switch CL1316N, which address similar problems with connecting and setting up LCD Consoles ATEN.



User manual for the ATEN 19" 16-Port LCD USB KVM Switch CL1316N

The user manual for the ATEN 19" 16-Port LCD USB KVM Switch CL1316N provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - LCD Consoles.

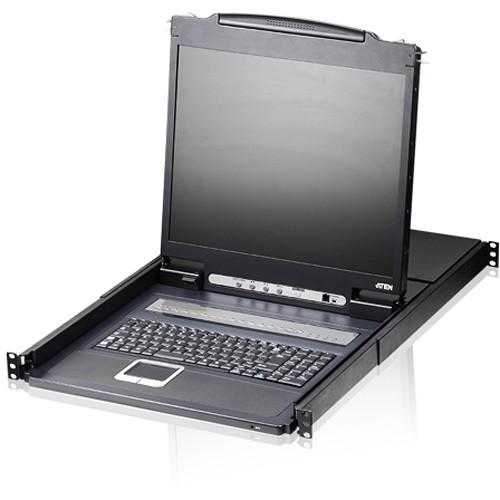

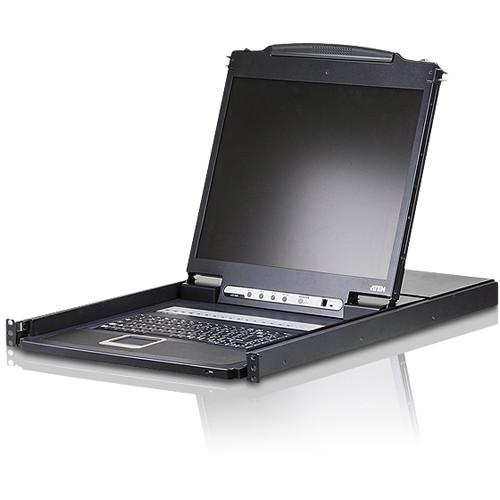

The 19" 16-Port LCD USB KVM Switch from Aten features an integrated 19" LED-backlit LCD panel allowing access and control with up to 16 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console.
If you own a ATEN lcd consoles and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ATEN 19" 16-Port LCD USB KVM Switch CL1316N in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ATEN 19" 16-Port LCD USB KVM Switch CL1316N:
Specifications
    Computer Connections Direct: 16
    Maximum: 256 (via Cascade)
    Port Selection OSD, Hotkeys, Push buttons
    Connectors KVM Ports: 16 x SPHD-17 Female (Yellow)
    FW Upgrade: 1 x RJ-11 Female (Black)
    Power: 1 x 3-prong AC Socket (IEC60320/C14)
    Switches Reset: 1 x Semi-recessed Pushbutton
    Power: 1 x Rocker
    FW Upgrade: 1 x Slide
    LCD Control: 4 x Pushbutton
    LCD On/Off: 1 x Pushbutton
    Port: 16 x Pushbutton
    LEDs Online: 16 (orange)
    Selected: 16 (green)
    Power KVM: 1 (dark green)
    Power LCD: 1 (orange)
    Lock Num: 1 (green)
    Lock Caps: 1 (green)
    Lock Scroll: 1 (green)
    Emulation Keyboard/Mouse: PS/2, USB
    Video Resolution 1280 × 1024 at 75 Hz, (DDC2B)
    Scan Interval 1 to 255 seconds
    Power 100 to 240 VAC, 50/60 Hz, 1 A
    Power Consumption 230 V, 22.9 W
    Environment Operating Temperature: 32 to 122°C (0 to 50˚C)
    Storage Temperature: -4 to 140°F (-20 to 60˚C)
    Humidity: 0 to 80% RH, (non-condensing)
    Housing Metal + Plastic
    Dimension 19 x 27.1 x 1.7" (48.3 x 68.9 x 4.4 cm)
    Weight 28.2 lb (12.77 kg)
    The user manual for the ATEN 19" 16-Port LCD USB KVM Switch CL1316N can be downloaded in .pdf format if it did not come with your new lcd consoles, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ATEN users keep a unique electronic library for ATEN lcd consoless, where you can use our link to download the user manual for the ATEN 19" 16-Port LCD USB KVM Switch CL1316N.

    The user manual lists all of the functions of the ATEN 19" 16-Port LCD USB KVM Switch CL1316N, all the basic and advanced features and tells you how to use the lcd consoles. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ATEN service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ATEN 19" 16-Port LCD USB KVM Switch CL1316N. User manuals are also available on the ATEN website under Computers & Solutions - Monitors & Displays - LCD Consoles.
