User manual for the ATEN 19" 8-Port LCD USB KVM Switch CL1308N
The user manual for the ATEN 19" 8-Port LCD USB KVM Switch CL1308N provides
necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - LCD Consoles.

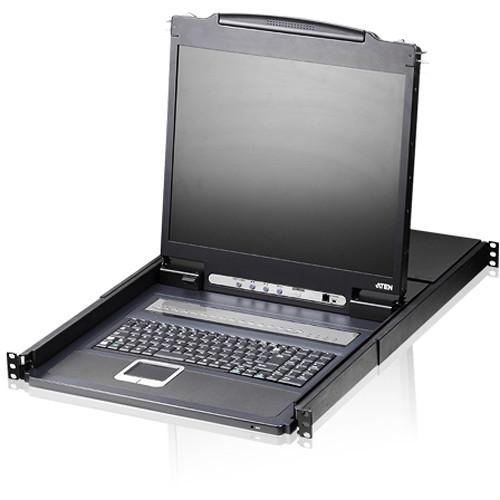

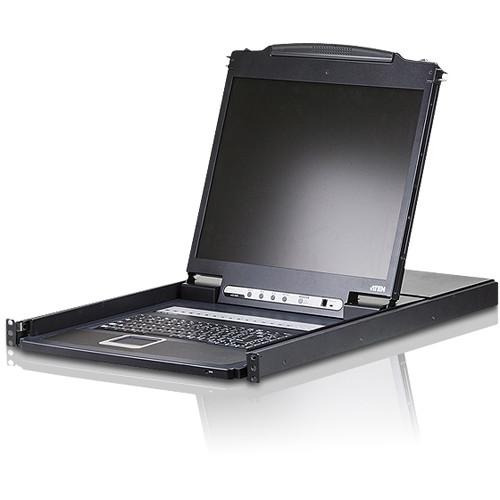

The 19" 8-Port LCD USB KVM Switch from Aten features an integrated 19" LED-backlit LCD panel allowing access and control with up to 8 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 128 computers that can be controlled from a single keyboard-monitor-mouse console.
|
If you own a ATEN lcd consoles and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ATEN 19" 8-Port LCD USB KVM Switch CL1308N in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the ATEN 19" 8-Port LCD USB KVM Switch CL1308N:
| Computer Connections | Direct: 8
Maximum: 128 (via Cascade) | | Port Selection | OSD, Hotkeys, Push buttons | | Connectors | KVM Ports: 8 x SPHD-17 Female (Yellow)
FW Upgrade: 1 x RJ-11 Female (Black)
Power: 1 x 3-prong AC Socket (IEC60320/C14) | | Switches | Reset: 1 x Semi-recessed Pushbutton
Power: 1 x Rocker
FW Upgrade: 1 x Slide
LCD Control: 4 x Pushbutton
LCD On/Off: 1 x Pushbutton
Port: 8 x Pushbutton | | LEDs | Online: 8 (orange)
Selected: 8 (green)
Power KVM: 1 (dark green)
Power LCD: 1 (orange)
Lock Num: 1 (green)
Lock Caps: 1 (green)
Lock Scroll: 1 (green) | | Emulation | Keyboard/Mouse: PS/2, USB | | Video Resolution | 1280 × 1024 at 75 Hz, (DDC2B) | | Scan Interval | 1 to 255 seconds | | Power | 100 to 240 VAC, 50/60 Hz, 1 A | | Power Consumption | 120 V, 22 W | | Environment | Operating Temperature: 32 to 122°C (0 to 50˚C)
Storage Temperature: -4 to 140°F (-20 to 60˚C)
Humidity: 0 to 80% RH, (non-condensing) | | Housing | Metal + Plastic | | Dimension | 19 x 27.1 x 1.7" (48.3 x 68.9 x 4.4 cm) | | Weight | 27.8 lb (12.59 kg) | |
The user manual for the ATEN 19" 8-Port LCD USB KVM Switch CL1308N can be downloaded in .pdf
format if it did not come with your new lcd consoles, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other ATEN users keep a unique electronic library
for ATEN lcd consoless,
where you can use our link to download the user manual for the ATEN 19" 8-Port LCD USB KVM Switch CL1308N.
The user manual lists all of the functions of the ATEN 19" 8-Port LCD USB KVM Switch CL1308N,
all the basic and advanced features and tells you how to use the lcd consoles.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from ATEN service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the ATEN 19" 8-Port LCD USB KVM Switch CL1308N. User manuals are also
available on the ATEN website under Computers & Solutions - Monitors & Displays - LCD Consoles.
