User manual for the ATEN 2L-5303P SPHD-15 to VGA, PS/2, and Audio KVM Cable 2L5303P
The user manual for the ATEN 2L-5303P SPHD-15 to VGA, PS/2, and Audio KVM Cable 2L5303P provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Peripherals - KVM Cables & Accessories.

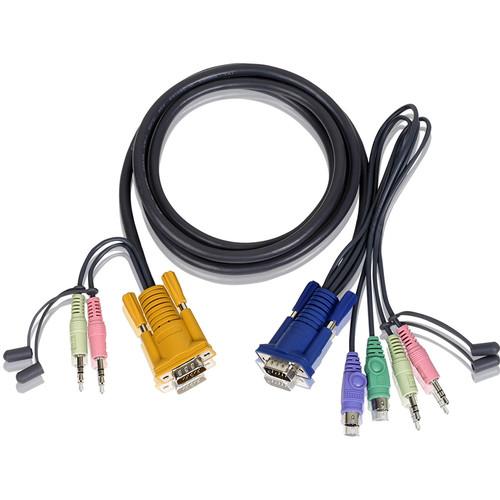

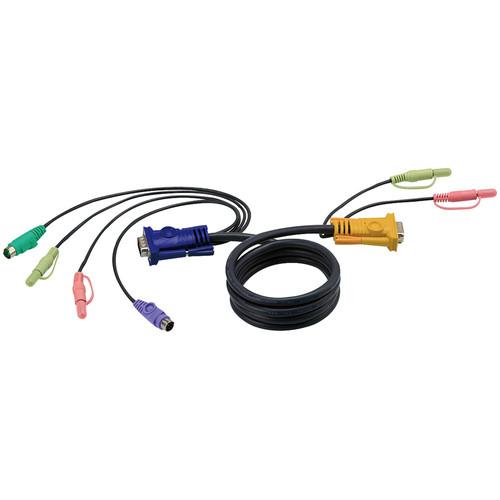

The 10' 2L-5303P SPHD-15 to VGA, PS/2 and Audio KVM Cable from ATEN can be used to connect a computer's keyboard, mouse, and video to an ATEN KVM switch via a 3-in-1 SPHD console connector. Additionally, the cable features two audio plugs on each end for connecting a microphone and speaker. The cable's connectors are color coded for convenience.
If you own a ATEN kvm cables & accessories and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ATEN 2L-5303P SPHD-15 to VGA, PS/2, and Audio KVM Cable 2L5303P in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ATEN 2L-5303P SPHD-15 to VGA, PS/2, and Audio KVM Cable 2L5303P:
Specifications
Connector 1
Keyboard and Mouse: 2 x 6-pin mini-DIN male Monitor: 1 x HDB-15 male Microphone and Speaker: 2 x Audio plug
Connector 2
Console: 1 x SPHD-15 male Microphone and Speaker: 2 x Audio plug
Length
10.0' / 3.0 m
Compatibility
Compatible with the following ATEN products: CE300, CS1732A, CS1732B, CS1734A, CS1734B, CS1754, CS1758, KE0220
