User manual ATEN CLCS1716IKIT LCD Console with 16-port IP KVM CLCS1716IKIT

Operating instructions and pdf manual for use - ATEN CLCS1716IKIT LCD Console with 16-port IP KVM CLCS1716IKIT User manual, User manual ATEN CLCS1716IKIT LCD Console with 16-port IP KVM CLCS1716IKIT, ATEN, CLCS1716IKIT, LCD, Console, with, 16-port,


User manual for ATEN CLCS1716IKIT LCD Console with 16-port IP KVM CLCS1716IKIT

ATEN CLCS1716IKIT LCD Console with 16-port IP KVM CLCS1716IKIT
  • Manufacturer: ATEN
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - LCD Consoles
  • Safety instructions
  • Startup and operation of the lcd consoles
  • Tips for setting up your ATEN
  • Settings and expert assistance
  • Contact ATEN service
  • Troubleshooting
  • Warranty information

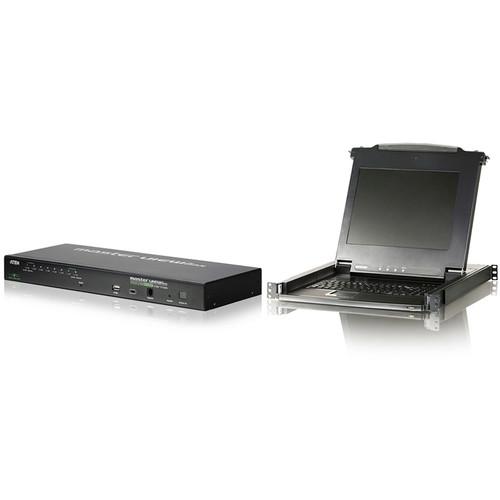

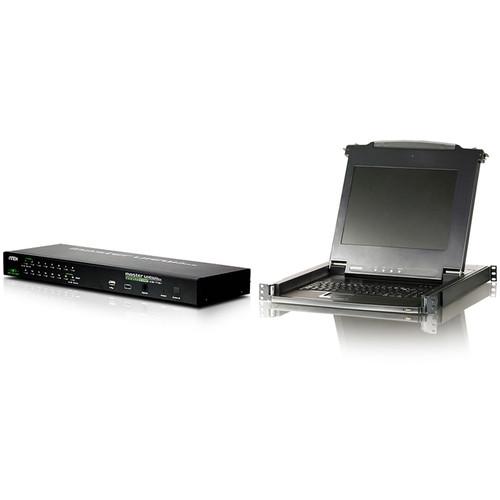

ATEN CLCS1716IKIT LCD Console with 16-port IP KVM CLCS1716IKIT ATEN CLCS1716IKIT LCD Console with 16-port IP KVM CLCS1716IKIT
Click to enlarge image

We recommend checking out our discussion threads on the ATEN CLCS1716IKIT LCD Console with 16-port IP KVM CLCS1716IKIT, which address similar problems with connecting and setting up LCD Consoles ATEN.



User manual for the ATEN CLCS1716IKIT LCD Console with 16-port IP KVM CLCS1716IKIT

The user manual for the ATEN CLCS1716IKIT LCD Console with 16-port IP KVM CLCS1716IKIT provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - LCD Consoles.

The CLCS1716IKIT LCD Console with 16-port IP KVM Bundle from Aten combines a 17" Single Rail LCD Console with a 16-port PS/2-USB KVM Over IP Switch for a full control center. The console functions as the front end of the switch, providing an integrated 17" LED-backlit LCD panel, a full keyboard, and a touchpad. The switch allows you to monitor and access up to 16 computers locally, and up to 256 computers through a daisy chain connection. When using the system remotely, you can access the switch over the Internet through a web browser with TCP/IP remote communications protocol. The CLCS1716IKIT features a message board, enabling the connected computers to communicate with each other through a program resembling an Internet chat session. The bundle supports security protocols, including a 128-bit SSL encryption for the browser, and an RC4 128-bit encryption for secure keyboard, mouse, and video data transmission.
If you own a ATEN lcd consoles and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ATEN CLCS1716IKIT LCD Console with 16-port IP KVM CLCS1716IKIT in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ATEN CLCS1716IKIT LCD Console with 16-port IP KVM CLCS1716IKIT:
Control Console
Power Consumption 120 V, 60 Hz, 22.8 W / 230 V, 50 Hz, 24 W
Emulation Keyboard: PS/2
Mouse: PS/2
Computer Connections Direct: 1
Connectors Keyboard, Mouse, Monitor: 1 x SPHD-15 Female
Power: 3-prong AC socket
Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature -4 to 140°F / -20 to 60°C
Humidity 0 to 80% RH, non-condensing
Housing Metal
Dimensions 18.9 x 21.2 x 1.7" / 48.0 x 53.8 x 4.4 cm
Weight 26.5 lb / 12.0 kg
Over IP Switch
Computer Connections Direct: 16
Daisy Chain: 256
Port Selection OSD, hotkey, pushbutton
Connectors Console Connectors: 1 x SPHD-18 Male
CPU Connectors: 16 x SPHD-17 Female
Daisy Chain: 1 x DB-25 Male
Power: 1 x DC jack
LAN: 1 x RJ45 Female
USB: 1 x USB Type A
Switches Reset: 1 x Semi-recessed pushbutton
Port Selection: 16 x Pushbutton
F/W Upgrade: 1 x Slide
LED Indicators 16 x On line
16 x Selected
2 x Station ID 7-segment
1 x Power on
1 x 10/100 MB per sec
Emulation Keyboard: USB, PS/2
Mouse: USB, PS/2
Video Local: 2048 x 1536, DDC2B
Remote: 1600 x 1200 @ 60Hz / 24-bit color depth
Scan Interval 1 to 255 sec
Power Consumption 5.3 VDC, 9.5 W, 34 BTU per hr
Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature -4 to 140°F / -20 to 60°C
Humidity 0 to 80% RH, non-condensing
Housing Metal
Dimensions 17.0 x 6.3 x 1.7" / 43.2 x 16.0 x 4.3 cm
Weight 6.2 lb / 2.8 kg
The user manual for the ATEN CLCS1716IKIT LCD Console with 16-port IP KVM CLCS1716IKIT can be downloaded in .pdf format if it did not come with your new lcd consoles, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ATEN users keep a unique electronic library for ATEN lcd consoless, where you can use our link to download the user manual for the ATEN CLCS1716IKIT LCD Console with 16-port IP KVM CLCS1716IKIT.

The user manual lists all of the functions of the ATEN CLCS1716IKIT LCD Console with 16-port IP KVM CLCS1716IKIT, all the basic and advanced features and tells you how to use the lcd consoles. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ATEN service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ATEN CLCS1716IKIT LCD Console with 16-port IP KVM CLCS1716IKIT. User manuals are also available on the ATEN website under Computers & Solutions - Monitors & Displays - LCD Consoles.
