User manual ATEN UC2324 4-Port USB to Serial RS-232 Hub UC2324

Operating instructions and pdf manual for use - ATEN UC2324 4-Port USB to Serial RS-232 Hub UC2324 User manual, User manual ATEN UC2324 4-Port USB to Serial RS-232 Hub UC2324, ATEN, UC2324, 4-Port, USB, to, Serial, RS-232, Hub, UC2324,


User manual for ATEN UC2324 4-Port USB to Serial RS-232 Hub UC2324

ATEN UC2324 4-Port USB to Serial RS-232 Hub UC2324
  • Manufacturer: ATEN
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Serial RS-422/RS-232 Cards
  • Safety instructions
  • Startup and operation of the serial rs-422/rs-232 cards
  • Tips for setting up your ATEN
  • Settings and expert assistance
  • Contact ATEN service
  • Troubleshooting
  • Warranty information
  • Price: 84 USD

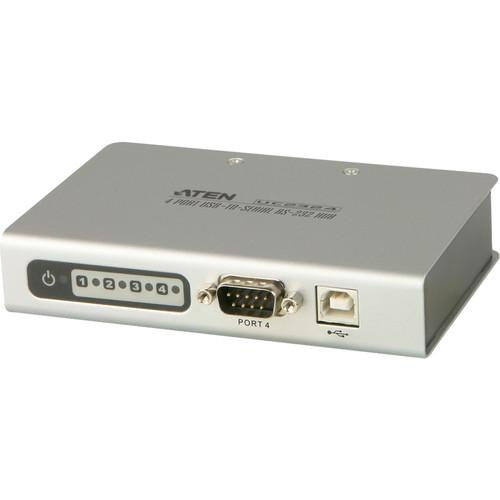

ATEN UC2324 4-Port USB to Serial RS-232 Hub UC2324 ATEN UC2324 4-Port USB to Serial RS-232 Hub UC2324
Click to enlarge image

We recommend checking out our discussion threads on the ATEN UC2324 4-Port USB to Serial RS-232 Hub UC2324, which address similar problems with connecting and setting up Serial RS-422/RS-232 Cards ATEN.



User manual for the ATEN UC2324 4-Port USB to Serial RS-232 Hub UC2324

The user manual for the ATEN UC2324 4-Port USB to Serial RS-232 Hub UC2324 provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Serial RS-422/RS-232 Cards.

The UC2324 4-Port USB to Serial RS-232 Hub from ATEN provides an external plug-and-play RS-232 serial connection for connecting handheld computing devices to computers, laptops, and notebooks. The hub is designed to offer a cost-effective solution for quickly and simply adding RS-232 serial ports with data transfer rates of up to 115.2 kb/s each. As the hub is hot-swappable, no IRQ, DMA, or I/O address resources are needed.
If you own a ATEN serial rs-422/rs-232 cards and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ATEN UC2324 4-Port USB to Serial RS-232 Hub UC2324 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ATEN UC2324 4-Port USB to Serial RS-232 Hub UC2324:
Number of Device Connections 4
Connectors 1 x USB Type B female (white)
4 x DB-9 male (black)
1 x DC jack
LEDs Port Status: 4 (green)
Power: 1 (orange)
Max Data Transfer Rate 115.2 kb/s
FIFO 16-byte
USB Specification USB 1.1 compliant, USB 2.0 compatible
RS-232 Pin Configuration TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI, GND
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Power Mode Bus powered, use of power adapter is optional
Power Consumption 0.6 W
Temperature & Humidity Operating Temp: 32 to 122°F / 0 to 50°C
Storage Temp: -4 to 140°F / -20 to 60°C
Humidity: 0 to 80% RH, non-condensing
OS Support Microsoft 2000/2003/XP/NT
Dimensions (LxWxH) 4.9 x 3.1 x 1.0" / 12.5 x 8.0 x 2.5 cm
Weight 0.71 lb / 0.32 kg
Packaging Info
Package Weight 1.35 lb
Box Dimensions (LxWxH) 9.4 x 6.3 x 2.4"
The user manual for the ATEN UC2324 4-Port USB to Serial RS-232 Hub UC2324 can be downloaded in .pdf format if it did not come with your new serial rs-422/rs-232 cards, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ATEN users keep a unique electronic library for ATEN serial rs-422/rs-232 cardss, where you can use our link to download the user manual for the ATEN UC2324 4-Port USB to Serial RS-232 Hub UC2324.

The user manual lists all of the functions of the ATEN UC2324 4-Port USB to Serial RS-232 Hub UC2324, all the basic and advanced features and tells you how to use the serial rs-422/rs-232 cards. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ATEN service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ATEN UC2324 4-Port USB to Serial RS-232 Hub UC2324. User manuals are also available on the ATEN website under Computers & Solutions - Networking - Serial RS-422/RS-232 Cards.
