User manual Atlas Sound APAKFAPS Amplifier and Speaker Package APAKFAPS

Operating instructions and pdf manual for use - Atlas Sound APAKFAPS Amplifier and Speaker Package APAKFAPS User manual, User manual Atlas Sound APAKFAPS Amplifier and Speaker Package APAKFAPS, Atlas, Sound, APAKFAPS, Amplifier, Speaker, Package, A


User manual for Atlas Sound APAKFAPS Amplifier and Speaker Package APAKFAPS

Atlas Sound APAKFAPS Amplifier and Speaker Package APAKFAPS
  • Manufacturer: Atlas Sound
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Install Sound Kits
  • Safety instructions
  • Startup and operation of the install sound kits
  • Tips for setting up your Atlas Sound
  • Settings and expert assistance
  • Contact Atlas Sound service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Atlas Sound APAKFAPS Amplifier and Speaker Package APAKFAPS, which address similar problems with connecting and setting up Install Sound Kits Atlas Sound.



User manual for the Atlas Sound APAKFAPS Amplifier and Speaker Package APAKFAPS

The user manual for the Atlas Sound APAKFAPS Amplifier and Speaker Package APAKFAPS provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Sound Kits.

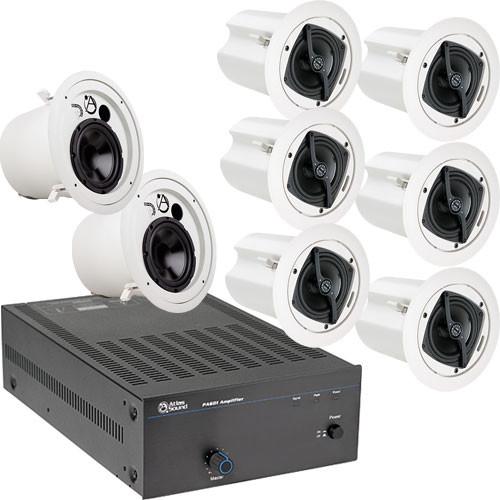

The AtlasSound APAKFAPS Amplifier and Speaker Package System consists of strategy PA601 amplifier, six FAP40T ceiling speakers and two FAPSUB subwoofers.
If you own a Atlas Sound install sound kits and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Atlas Sound APAKFAPS Amplifier and Speaker Package APAKFAPS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Atlas Sound APAKFAPS Amplifier and Speaker Package APAKFAPS:
Specifications
    Speaker
    Frequency Response 100Hz - 12kHz
    Power Taps 1, 2, 4, 8, 16
    Sensitivity 87dB
    Speaker Type Coaxial
    Depth 7.13" (18.1cm)
    Diameter 7.37" (18.73cm)
    Weight 8.5 lbs (3.86kg)
    Subwoofer
    Frequency Response 45 - 120Hz
    Power 60W
    Power Taps 1.9, 3.8, 7.5, 15, 30 & 60W
    Sensitivity 89dB
    Speaker Type In-Ceiling Sub
    Depth 12.75" (32.39cm)
    Diameter 15.75" (40.01cm)
    Weight 21.5 lbs (9.75kg)
    Power Amplifier
    Power Output 60W RMS
    Frequency Response 50Hz - 20kHz
    THD + N 0.5% or Less @ 1kHz, Rated Output
    0.1% or Less @ 1kHz, 5W Output
    Sensitivity 500mV, 20kOhms
    Signal to Noise Ratio >55dB, Balanced
    >75dB, Unbalanced
    Connectors 1 x Power Input
    1 x Line-Level Phoenix Input, Balanced
    1 x Line-Level RCA Input, Unbalanced
    1 x Line-Level RCA Output, Unbalanced
    1 x Screw Terminal Strip Loudspeaker Output
    Dimensions 3.7 x 8.3 x 14" (93 x 210 x 357mm)
    Weight 14 lbs (6.6kg)
    Packaging Info
    Package Weight 1.0 lb
    Box Dimensions (LxWxH) 1.0 x 1.0 x 1.0"
    The user manual for the Atlas Sound APAKFAPS Amplifier and Speaker Package APAKFAPS can be downloaded in .pdf format if it did not come with your new install sound kits, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Atlas Sound users keep a unique electronic library for Atlas Sound install sound kitss, where you can use our link to download the user manual for the Atlas Sound APAKFAPS Amplifier and Speaker Package APAKFAPS.

    The user manual lists all of the functions of the Atlas Sound APAKFAPS Amplifier and Speaker Package APAKFAPS, all the basic and advanced features and tells you how to use the install sound kits. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Atlas Sound service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Atlas Sound APAKFAPS Amplifier and Speaker Package APAKFAPS. User manuals are also available on the Atlas Sound website under Pro Audio - Installation Sound - Install Sound Kits.
