User manual Atlas Sound DPA-102PM Networkable 2-Channel Power DPA-102PM

Operating instructions and pdf manual for use - Atlas Sound DPA-102PM Networkable 2-Channel Power DPA-102PM User manual, User manual Atlas Sound DPA-102PM Networkable 2-Channel Power DPA-102PM, Atlas, Sound, DPA-102PM, Networkable, 2-Channel, Power


User manual for Atlas Sound DPA-102PM Networkable 2-Channel Power DPA-102PM

Atlas Sound DPA-102PM Networkable 2-Channel Power DPA-102PM
  • Manufacturer: Atlas Sound
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Power Amplifiers
  • Safety instructions
  • Startup and operation of the power amplifiers
  • Tips for setting up your Atlas Sound
  • Settings and expert assistance
  • Contact Atlas Sound service
  • Troubleshooting
  • Warranty information
  • Price: 325 USD
We recommend checking out our discussion threads on the Atlas Sound DPA-102PM Networkable 2-Channel Power DPA-102PM, which address similar problems with connecting and setting up Power Amplifiers Atlas Sound.



User manual for the Atlas Sound DPA-102PM Networkable 2-Channel Power DPA-102PM

The user manual for the Atlas Sound DPA-102PM Networkable 2-Channel Power DPA-102PM provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Power Amplifiers.

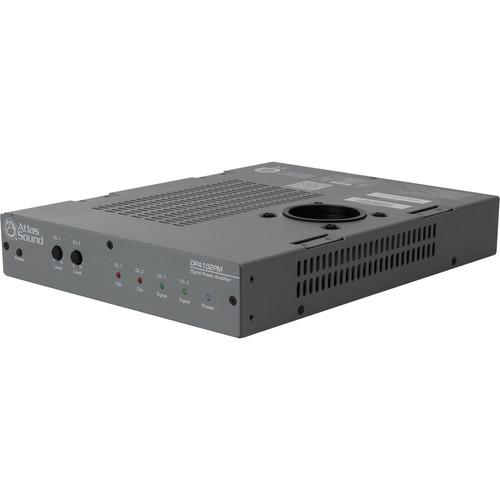

The Atlas Sound DPA-102PM Networkable 2-Channel Power Amplifier with DSP is web-enabled and has an assortment of DSP tools including level controls, EQs, limiters, high & low pass filters, delays, and summing to provide flexibility for a range of applications. This ready-to-use and out-of-the-box DPA-102PM Amplifier does not require a computer configuration or network connectivity.
If you own a Atlas Sound power amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Atlas Sound DPA-102PM Networkable 2-Channel Power DPA-102PM in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Atlas Sound DPA-102PM Networkable 2-Channel Power DPA-102PM:
Output Power 50 W per Channel @ 8 Ω
100 W per Channel @ 4 Ω
Settings Factory Ship Settings:
2-ch 4 Ω,
Front panel levels active
DSP set to flat & 0 dB
THD 0.2% at rated output
Frequency Response -3 dB 20 Hz @ 20 kHz (DSP filters engaged)
DSP Input level, output level, output limiter, 5-band parametric EQ per channel, high & low cut filters, delay 60 ms per channel, and matrix mixer
GUI Ethernet base, On-board web (No PC software for single unit monitoring or configuration)
Audio On Trigger Threshold: 5 mV
Off, no signal sense, 30 min
Level Control Assignable:
Front panel (removable knobs and security cover)
GUI control (PC, iPhone, Android, password protected)
Remote wired (10K Ω based, separate return per channel)
Protection Circuits Thermal, short, limiter
Signal to Noise Ratio -100 dB below rated output (A-weighted)
Input Sensitivity RCA unbalanced 750 mV, balanced 750 mV, Euro Block PHX type 3.5 mm
Input Impedance RCA Unbalanced: 10 kΩ
Balanced: 20 kΩ
Output Terminals Euro Block PHX Type 5.08 mm
Power Requirement 100 VAC to 240 VAC, 50/60 Hz
Power Consumption Standby Mode (Ethernet Active): 1 W, 22 mA, 3.14 BTU
Idle Active: 12.5 W, 173 mA, 41 BTU
Average Power: 4 Ω (Audio signal, 1⁄3 power), 116 W, 395 BTU
Maximum Power: 4 Ω (Audio signal, peak), 384 W, 4.9A, 1310 BTU
Dimensions 8.5 x 1.7 x 13.5" (21.6 x 4.5 x 34.3 cm)
Weight 4.9 lb (2.4 kg)
Packaging Info
Package Weight 7.45 lb
Box Dimensions (LxWxH) 17.6 x 10.5 x 3.5"
The user manual for the Atlas Sound DPA-102PM Networkable 2-Channel Power DPA-102PM can be downloaded in .pdf format if it did not come with your new power amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Atlas Sound users keep a unique electronic library for Atlas Sound power amplifierss, where you can use our link to download the user manual for the Atlas Sound DPA-102PM Networkable 2-Channel Power DPA-102PM.

The user manual lists all of the functions of the Atlas Sound DPA-102PM Networkable 2-Channel Power DPA-102PM, all the basic and advanced features and tells you how to use the power amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Atlas Sound service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Atlas Sound DPA-102PM Networkable 2-Channel Power DPA-102PM. User manuals are also available on the Atlas Sound website under Pro Audio - Live Sound - Power Amplifiers.
