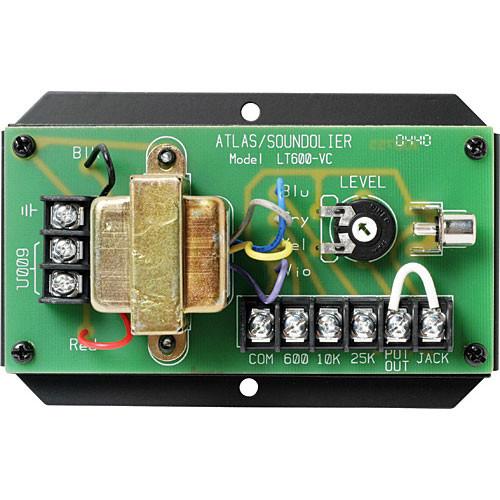

The Atlas LT600-VC Phone to Line Matching Transformer is designed to match the 600 ohm impedance of a standard telephone signal to 600, 10k and 25k ohms. The result enables the telephone signal to output into standard amplifiers, paging systems, telephone background music systems, etc. A standard 1/4" phone output connector is provided for easy hookup.
|
If you own a Atlas Sound accessories and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Atlas Sound LT600-VC Phone to Line Matching Transformer LT600-VC in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Atlas Sound LT600-VC Phone to Line Matching Transformer LT600-VC:
| Input Impedance | 600 Ohms | | Output Impedance | 600, 10k, 25k Ohms | | Frequency Response | 60Hz to 12kHz | | Input Connectors | Telephone Jack | | Output Connector | 1/4" Phone | | Weight | 2.5 lbs (1.1 kg) | | Dimensions (WxHxD) | 4.88 x 3.14 x 1.73 (124 x 80 x 44mm) | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 6.8 x 4.1 x 2.8" | |
