User manual for the Atlona 4K/UHD Dual-Distance 6x6 HDMI to HDBaseT AT-UHD-PRO3-66M
The user manual for the Atlona 4K/UHD Dual-Distance 6x6 HDMI to HDBaseT AT-UHD-PRO3-66M provides
necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Routers & Switchers.

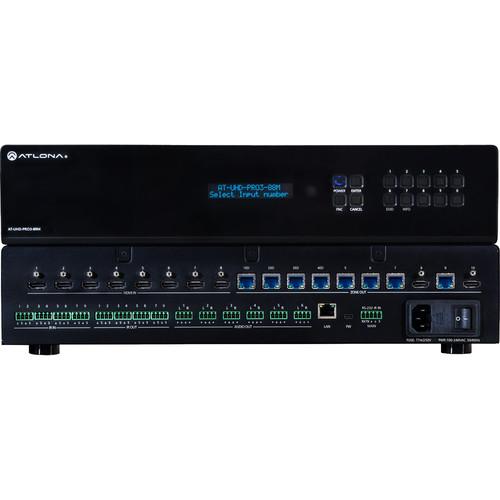

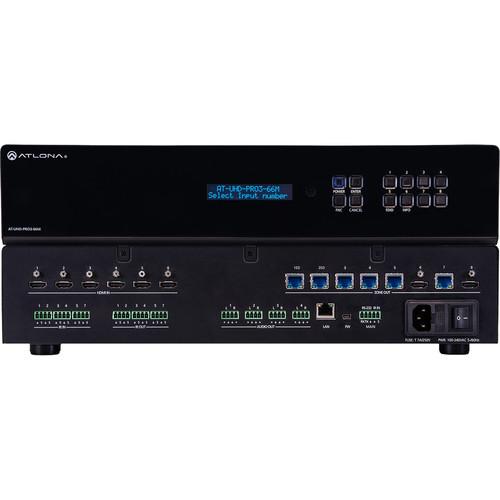

This Atlona 6x6 is a 2RU dual-distance HDBaseT matrix switcher supporting DCI 4K and Ultra HD 4K resolutions at 60 Hz (4096 x 2160 and 3840 x 2160). It's designed for multi-zone residential or commercial distribution applications and features 6 HDMI inputs and 6 HDBaseT outputs, as well two HDMI mirrored outputs. Route up to 328 over 2 HDBaseT outputs, and up to 230 ft over the other four, along with bidirectional RS-232 and IR control in both cases. The two HDMI mirrored outputs are designed for carrying HDMI-based audio to an AVR or as additional matrix outputs. Power over Ethernet capability is available for optional receivers.
This matrix switcher is HDCP 2.2 compliant and supports EDID communication. The matrix is control-system-friendly and integrates with any TCP/IP, RS-232, or IR based control signals. Incorporate the optional AT-IR-CS-TX IR emitter cable for AV system control.
If you own a Atlona routers & switchers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Atlona 4K/UHD Dual-Distance 6x6 HDMI to HDBaseT AT-UHD-PRO3-66M in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Atlona 4K/UHD Dual-Distance 6x6 HDMI to HDBaseT AT-UHD-PRO3-66M:
Specifications
Inputs
6 x HDMI
Outputs
6 x HDBaseT RJ45 2 x mirrored HDMI
Connectors
Firmware: LAN port HDBaseT: RJ45 HDMI: HDMI type A Audio: 4-pin captive screw LAN: RJ45, TCP/IP control IR: 2-pin captive screw RS-232: 3-pin captive screw Power: Internal, 100-240 VAC, 50/60 Hz
Resolutions
4096 x 2160 at 24/25/30/50/60 Hz 3840 x 2160 at 24/25/30/50/60 Hz 2048 x 1080p 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 Hz 1920 x 1080i at 50/59.94/60 Hz 1280 x 720p at 50/59.94/60 Hz 576p 576i 480p 480i
*4096 x 2160 at 50/60 Hz and 3840 x 2160 at 50/60 Hz supported at chroma subsampling 4:2:0 8-bit only
2560 x 2048, 2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 800 1280 x 768, 1152 x 768, 1024 x 768, 800 x 600, 640 x 480
HDBaseT Ports 1-2: CAT5e/6 at 4K: up to 230 ft (70 m)
HDBaseT Ports 1-2: CAT6a/7 at 4K: up to 328 ft (100 m)
HDBaseT Ports 1-2: CAT5e/6 at 1080p: up to 328 ft (100 m)
Remaining HDBaseT Ports: CAT5e/6 at 4K: up to 115 ft (35 m) CAT6a/7 at 4K: up to 130 ft (40 m) CAT5e/6 at 1080p: up to 197 ft (60 m) CAT6a/7 at 1080p: up to 230 ft (70 m) HDMI In/Out at 4K: up to 15 ft (5 m) HDMI In/Out at 1080p: up to 30 ft (10 m)
Bandwidth
10.2 Gbps
CEC
Pass-through
HDCP Compliance
Supports up to 2.2
Operating Temperature
32 to 104°F (0 to 40°C)
Storage Temperature
-40 to 158°F (-40 to 70°C)
Humidity
20 to 90%, non-condensing
Power Consumption
110 W Idle Consumption: 75 W
Power Supply
100 - 240 VAC, 50/60 Hz
Certifications
CE, FCC, RoHS, RCM, TUV
Dimensions
With Feet: 3.9 x 17.3 x 11.9" (10 x 44 x 30 cm) With Rack Ears: 3.5 x 19 x 11.9" (9 x 48 x 30 cm)
