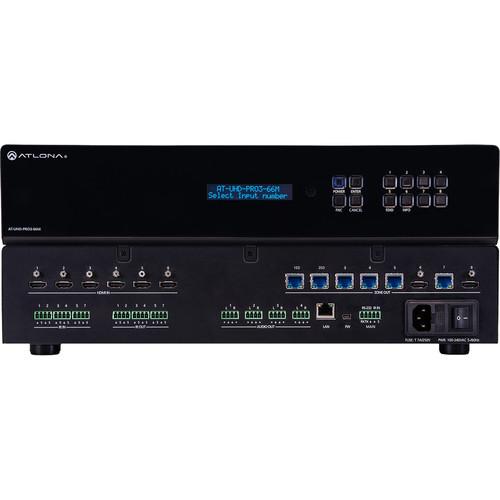

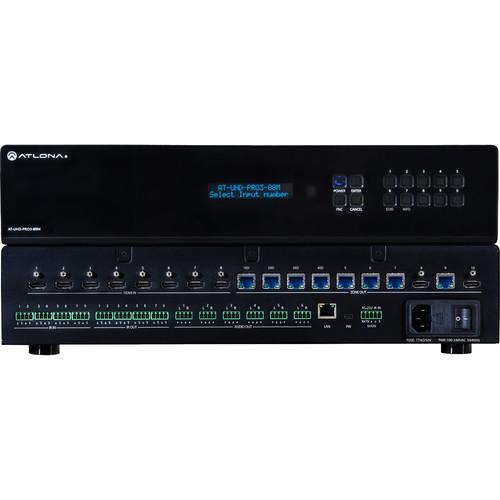

Click to enlarge image
|
We recommend checking out our discussion threads on the Atlona 4K/UHD Dual-Distance 8x8 HDMI to HDBaseT AT-UHD-PRO3-88M,
which address similar problems with connecting and setting up Routers & Switchers Atlona.
|
User manual for the Atlona 4K/UHD Dual-Distance 8x8 HDMI to HDBaseT AT-UHD-PRO3-88M
The user manual for the Atlona 4K/UHD Dual-Distance 8x8 HDMI to HDBaseT AT-UHD-PRO3-88M provides
necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Routers & Switchers.
This Atlona 8x8 is a 2RU dual-distance HDBaseT matrix switcher supporting DCI 4K and Ultra HD 4K resolutions at 60 Hz (4096 x 2160 and 3840 x 2160). It's designed for multi-zone residential or commercial distribution applications and features 8 HDMI inputs and 8 HDBaseT outputs, as well two HDMI mirrored outputs. Route up to 328 over 4 HDBaseT outputs, and up to 230 ft over the other four, along with bidirectional RS-232 and IR control in both cases. The two HDMI mirrored outputs are designed for carrying HDMI-based audio to an AVR or as additional matrix outputs. Power over Ethernet capability is available for optional receivers.
This matrix switcher is HDCP 2.2 compliant and supports EDID communication. The matrix is control-system-friendly and integrates with any TCP/IP, RS-232, or IR based control signals. Incorporate the optional AT-IR-CS-TX IR emitter cable for AV system control.
|
If you own a Atlona routers & switchers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Atlona 4K/UHD Dual-Distance 8x8 HDMI to HDBaseT AT-UHD-PRO3-88M in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Atlona 4K/UHD Dual-Distance 8x8 HDMI to HDBaseT AT-UHD-PRO3-88M:
| Inputs | 8 x HDMI | | Outputs | 8 x HDBaseT RJ45
2 x mirrored HDMI | | Connectors | Firmware: LAN port
HDBaseT: RJ45
HDMI: HDMI type A
Audio: 4-pin captive screw
LAN: RJ45, TCP/IP control
IR: 2-pin captive screw
RS-232: 3-pin captive screw
Power: Internal, 100-240 VAC, 50/60 Hz | | Resolutions | 4096 x 2160 at 24/25/30/50/60 Hz
3840 x 2160 at 24/25/30/50/60 Hz
2048 x 1080p
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 Hz
1920 x 1080i at 50/59.94/60 Hz
1280 x 720p at 50/59.94/60 Hz
576p
576i
480p
480i
*4096 x 2160 at 50/60 Hz and 3840 x 2160 at 50/60 Hz supported at chroma subsampling 4:2:0 8-bit only
2560 x 2048, 2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 800 1280 x 768, 1152 x 768, 1024 x 768, 800 x 600, 640 x 480 | | Color Space | YUV, RGB | | Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 | | Color Depth | 8-bit, 10-bit, 12-bit | | Audio Output | Analog Output: PCM 2-Ch (de-embedded)
HDMI/HDBaseT Output: PCM 2-Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos | | Sample Rate | 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz | | Bit Rate | Up to 24-bit | | Distance | HDBaseT Ports 1-4:
CAT5e/6 at 4K: up to 230 ft (70 m)
HDBaseT Ports 1-4:
CAT6a/7 at 4K: up to 328 ft (100 m)
HDBaseT Ports 1-4:
CAT5e/6 at 1080p: up to 328 ft (100 m)
Remaining HDBaseT Ports:
CAT5e/6 at 4K: up to 115 ft (35 m)
CAT6a/7 at 4K: up to 130 ft (40 m)
CAT5e/6 at 1080p: up to 197 ft (60 m)
CAT6a/7 at 1080p: up to 230 ft (70 m)
HDMI In/Out at 4K: up to 15 ft (5 m)
HDMI In/Out at 1080p: up to 30 ft (10 m) | | Bandwidth | 10.2 Gbps | | CEC | Pass-through | | HDCP Compliance | Supports up to 2.2 | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 20 to 90%, non-condensing | | Power Consumption | 225 W
Idle Consumption: 100 W | | Power Supply | 100 - 240 VAC, 50/60 Hz | | Certifications | CE, FCC, RoHS, RCM, TUV | | Dimensions | With Feet: 3.9 x 17.3 x 11.9" (10 x 44 x 30 cm)
With Rack Ears: 3.5 x 19 x 11.9" (9 x 48 x 30 cm) | | Weight | 11.4 lb (5.2 kg) | |
The user manual for the Atlona 4K/UHD Dual-Distance 8x8 HDMI to HDBaseT AT-UHD-PRO3-88M can be downloaded in .pdf
format if it did not come with your new routers & switchers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Atlona users keep a unique electronic library
for Atlona routers & switcherss,
where you can use our link to download the user manual for the Atlona 4K/UHD Dual-Distance 8x8 HDMI to HDBaseT AT-UHD-PRO3-88M.
The user manual lists all of the functions of the Atlona 4K/UHD Dual-Distance 8x8 HDMI to HDBaseT AT-UHD-PRO3-88M,
all the basic and advanced features and tells you how to use the routers & switchers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Atlona service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Atlona 4K/UHD Dual-Distance 8x8 HDMI to HDBaseT AT-UHD-PRO3-88M. User manuals are also
available on the Atlona website under Professional Video - Signal Processing & Distribution - Routers & Switchers.
