User manual for the Atlona AT-UHD-H2H-88M 4K/UHD HDMI to HDMI Matrix AT-UHD-H2H-88M
The user manual for the Atlona AT-UHD-H2H-88M 4K/UHD HDMI to HDMI Matrix AT-UHD-H2H-88M provides
necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Routers & Switchers.

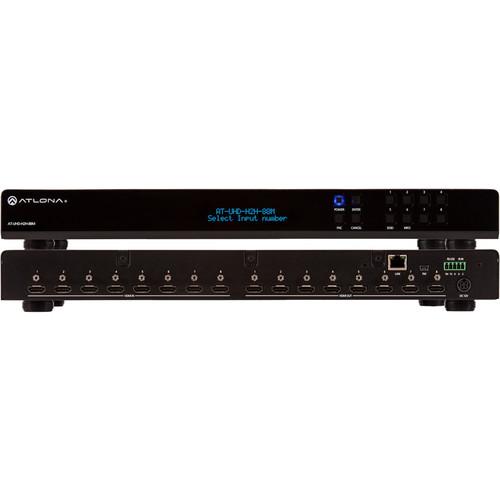

The AT-UHD-H2H-88M 4K/UHD HDMI to HDMI Matrix Switcher from Atola is an 8 x 8 switcher that routes any 4K/UHD @ 60Hz (4:2:0, 8-bit) source to any 4K/UHD destination with full HDCP 2.2 content protection. It supports various control functions like I/O routing from tablets, smart phones, or PCs. The switcher integrates with any TCP/IP, RS-232, or IR-based control system and can be controlled via the included IR remote or the controls available on the front panel. For ease of setup and management, the matrix includes a GUI-based integrated Web server for HDCP/EDID reporting, system configuration, and device status. The Web GUI uses an easy, intuitive drop down menu for fast setup and troubleshooting in the field.
If you own a Atlona routers & switchers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Atlona AT-UHD-H2H-88M 4K/UHD HDMI to HDMI Matrix AT-UHD-H2H-88M in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Atlona AT-UHD-H2H-88M 4K/UHD HDMI to HDMI Matrix AT-UHD-H2H-88M:
4096 x 2160 @ 50/60 Hz & 3840 x 2160 @ 50/60 Hz supported @ chroma subsampling 4:2:0 8-bit only.
VESA
2560 x 2048, 2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 800, 1280 x 768, 1152 x 768, 1024 x 768, 800 x 600, 640 x 480
With Feet: 2.2 x 17.3 x 10.0" (5.6 x 43.9 x 25.4 cm) With Rack Ears: 1.7 x 19.0 x 10.0" (4.3 x 48.3 x 25.4 cm) Rack Unit: 1 RU
Weight
6.55 lb (2.97 kg)
The user manual for the Atlona AT-UHD-H2H-88M 4K/UHD HDMI to HDMI Matrix AT-UHD-H2H-88M can be downloaded in .pdf
format if it did not come with your new routers & switchers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Atlona users keep a unique electronic library
for Atlona routers & switcherss,
where you can use our link to download the user manual for the Atlona AT-UHD-H2H-88M 4K/UHD HDMI to HDMI Matrix AT-UHD-H2H-88M.
The user manual lists all of the functions of the Atlona AT-UHD-H2H-88M 4K/UHD HDMI to HDMI Matrix AT-UHD-H2H-88M,
all the basic and advanced features and tells you how to use the routers & switchers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Atlona service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Atlona AT-UHD-H2H-88M 4K/UHD HDMI to HDMI Matrix AT-UHD-H2H-88M. User manuals are also
available on the Atlona website under Professional Video - Signal Processing & Distribution - Routers & Switchers.
