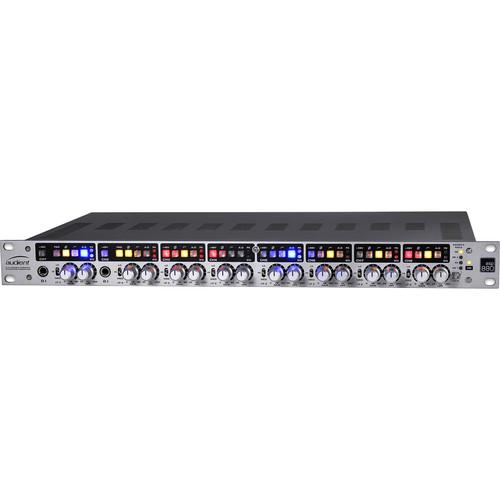

Intended for professional recording studios, the Audient ASP880 offers eight Class-A microphone preamplifiers from the company's consoles designed by David Dearden via XLR/TRS combo connectors as well as Burr Brown analog to digital conversion in an all-metal 1RU 19" rackmountable enclosure. It also features a pair of front panel Class-A JFET 1/4" DI instrument inputs for recording guitars, keyboards, drum machines, and more.

Each channel features a selectable +48V phantom power button, a selectable pad, a selectable polarity reverse switch, a variable high-pass filter, and a switch for inserting a signal processor between the preamplifier and A/D converter. A front-panel button allows you to select and lock the sample rate of the converter at 44.1, 48, 88.2, or 96 kHz. Digital outputs are provided by rear-panel ADAT, AES, and SPDIF connections. A word-clock input is also included.
If you own a Audient microphone preamps and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Audient ASP880 - 8-Channel Microphone Preamplifier and ADC in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Audient ASP880 - 8-Channel Microphone Preamplifier and ADC:
Specifications
    Connections 2x front panel 1/4" (6.3 mm) DI inputs
    8x back-panel XLR/TRS combo inputs
    1x D-Sub connector for line outputs 1-8 (send)
    1x D-sub connector for ADC inputs 1-8 (return)

    2x ADAT Out (1-8)
    1x word clock
    1x AES/SPDIF
    Input
    Mic Gain Range Mic: -10 to +60 dB (-10 dB Pad)
    Line: -16 to +44 dB (-10 dB Pad)
    DI: -10 to +60 dB (-10 dB pad)
    Phantom Power 48 V +/-4 V at 10 mA/Channel
    EIN < -127.5 dBu
    CMRR > 80 dB at 100 to 10 kHz
    Maximum Level Mic: +22 dBu (+32 dBu with Pad)
    D.I.: +16 dBu (typical), +22 dBu
    Input Impedance Mic LO: 220 ohms Balanced
    Mic MED: 12 kOhms Balanced
    Mic HI: 28 kOhms balanced Line (All Z): >6 kOhms balanced
    D.I.: 1 MOhm unbalanced
    Frequency Response Mic: +/-0. 5 dB from 10 Hz to 100 kHz
    D.I.: +/-0.5 dB from 10 Hz to 50 kHz
    Crosstalk < -85 dBu at 1,000 and 10,000 Hz
    THD+N Mic: 0.003% (-90.5 dBu)
    DI: <0.03% (-70 dBu)
    SNR Mic: > 90 dB
    D.I.: 89 dB
    HPF Sweepable from 25 to 250 Hz, 2nd Order (12 dB/Octave)
    XLR / Phone Jack Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
    Phono (1/4") TIP (Hot), RING (Cold) & SLEEVE (Shield)
    Output
    Maximum Output Level +27.5 dBu
    Output Impedance <100 ohms balanced
    A/D - D/A Conversions
    Maximum Input Level +18 dBu
    Reference Level 0 dBFS = +18 dBu
    Input Impedance >10 kOhms balanced
    Frequency Response +/-0.5 dB at 10 Hz to Fs/2
    Crosstalk <-80 dBu at 1 and 10 kHz
    THD + N -1 dBFS (1kHz): <0.002% (-94 dB)
    -6 dBFS (1 kHz): <0.002% (-94 dB)
    Dynamic Range 113 dB unweighted
    115 dB A-weighted
    LED PEAK LED LINEUP: +16 dBu (-2 dBFS)
    SIGNAL LED LINEUP: Variable Brightness from -30 dBu to -10 dBu (-28 dBFS)
    Digital Audio I/O
    Sample Rate ADAT 8x CHANNELS SMUX: 44.1 to 96 kHz
    AES | S/PDIF 8 Channels: 44.1 to 96 kHz
    Clock Internal or External
    Wordclock Input 75 ohm BNC
    Optional 75 ohm termination
    Power Supply Gloval low noise internal SMPS, fanless
    Line Voltage 90 to 264 V (a.c)
    Rails +/-18 VDC, +48 VDC & +5 VDC
    Fuse T1A (1 ampere time delay)
    Power Consumption Maximum 40 W
    Dimensions 19.0" x 1.75 x 12.6" (482 x 44.4 x 321 mm)
    Weight 8.8 lb (4.0 kg)
    Packaging Info
    Package Weight 11.45 lb
    Box Dimensions (LxWxH) 22.0 x 15.5 x 3.0"
