User manual for the Audio Ltd. Dual miniTX Transmitter and CX2-S S463447/121/5
The user manual for the Audio Ltd. Dual miniTX Transmitter and CX2-S S463447/121/5 provides
necessary instructions for the proper use of the product Pro Audio - Location Sound - Wireless Systems.

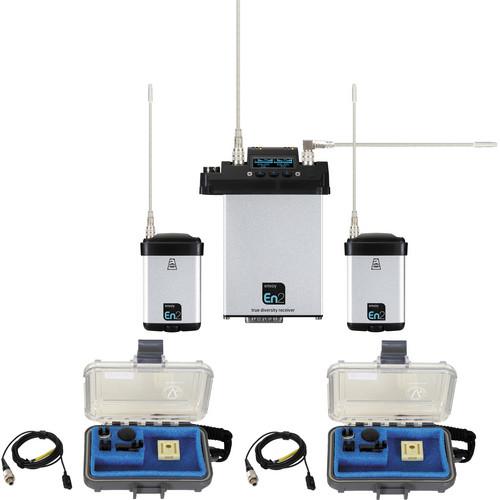

The Audio Ltd. Dual miniTX Transmitter and CX2-S Receiver System with VT500 Mics is designed for wireless audio transmission in live sound, recording, stage, and broadcast applications. The system consists of two En2 miniTX wireless transmitters, one En2 CX2-S slot-in receiver for Sony cameras, two Voice Technologies VT500 lavalier microphones, and a variety of accessories.
The transmitters are designed to be compact so that they are easy to conceal on the people you are recording. You adjust the settings on the transmitter using a keyring SwitchiR infrared remote control with LCD display, four buttons, and easy to navigate menus. You can control off/on, frequency check, frequency change, user identities, and battery status. The dual-channel true diversity receiver features an organic LED display and an easy to navigate tree of menus for controlling the receiver. You adjust the settings using three buttons on the front of the unit. Among the settings you can adjust, the receiver allows you to scan the RF spectrum for available frequency channels or scan for a specific wireless transmitter. The receiver can then track the frequency table using a digitally controlled tracking filter. You can also display an RF frequency analyzer for observing spectrum traffic in your area.
The receiver features true diversity reception, whereby two antennas are connected to two receiving circuits within the unit, and can automatically switch to whichever antenna is receiving a better signal without audible interruption. Up to two transmitters can be simultaneously paired with the receiver at one time, such as when recording both individuals in an interview. You plug the receiver directly into a Sony camera equipped with a slot for slot-in receivers.
The system comes included with two Voice Technologies VT500 lavaliere microphones. The microphones feature electret condenser elements, molded shockproof housings, and flexible cables that minimize handling noise. To improve intelligibility, the microphones feature a slight frequency response boost in the range of human speech.
|
If you own a Audio Ltd. wireless systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Audio Ltd. Dual miniTX Transmitter and CX2-S S463447/121/5 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Audio Ltd. Dual miniTX Transmitter and CX2-S S463447/121/5:
| Transmission Frequency | 512 to 542 MHz | | Switching Bandwidth | Up to 40 MHz in 25 kHz steps | | Frequency Presets | Up to 10 Frequency Tables
32 factory pre-set frequencies in each table | | Modulation Mode | Wideband FM | | Frequency Stability | ±0.002% | | Frequency Response | 50 to 18,000 Hz | | Signal to Noise Ratio | >100 dB (± 45 kHz deviation) | | Total Harmonic Distortion | <0.3% typical | | Output Power | 50 mW typical | | Gain Control | 0 to 30 dB in 8 steps | | Low Cut Filters | 2 settings; flat, 80 Hz | | Input Connector | Lemo 3-pin locking (4-pin option available) | | Control | Infra-red key-fob remote | | Battery Type | 2 x 1.5 V Alkaline LR3 AAA size | | Supply Voltage | 6 to 18 VDC (80 mA at 12 V) | | Operating Temperature | -4° to 131° F (-20º to +55º C) | | Dimensions (W x H x D) | 1.89" x 3.23 x 0.65" (48.0 x 82.0 x 16.5 mm) | | Weight | 3.5 oz (98 g) | | Type | Infra-red | | Buttons | 4 | | Display | LCD | | Battery | 6 V (PX28L or equivalent) | | Dimensions (L x W x D) | 2.4 x 1.2 x 0.5" (60 x 30 x 12 mm) | | Weight | 1.1 oz (30 g) | | Switching Bandwidth | Up to 80 MHz in 25 kHz steps | | Number of Channels | 2 (can be operated individually if required) | | Receiver Type | True diversity | | Frequency Presets | Up to 10 Frequency tables
32 factory pre-set frequencies
32 user-selectable frequencies (selectable in 25 kHz steps) | | Scan Modes | Scan for free channel
Scan for transmitter
Table scan with spectrum analyzer display in Tune Mode | | Modulation Mode | Wideband FM | | Frequency Stability | ±0.002% | | Sensitivity | -96 dBm (3.5uV) for >40 dB SINAD | | Image Rejection | >80 dB | | Frequency Response | 50 to 18 kHz | | Signal to Noise Ratio | >100 dB (±45 kHz deviation) | | Total Harmonic Distortion | <0.3% typical | | Output Voltage | 0 dBV typical (±45 kHz deviation, 1 kHz) | | Output Attenuation | 0 dB, -12 dB, -24 dB, -36 dB (selectable) | | Output Connector | 15-pin D-sub + Binder 7-pin (Sony) | | Display | OLED blue, 128 x 32 pixels | | Control | 3-button navigation (left, right and select) | | Supply Voltage | 6 to 18 VDC (200 mA at 12 V) | | Operating Temperature Range | -4° to 131° F (-20º to +55º C) | | Dimensions (W x H x D) | 3.50 x 4.49 x 0.98" (89.0 x 114 x 25.0 mm) | | Weight | 6.00 oz (170 g) | | Element | Electret condenser | | Frequency Range | 40 to 20,000 Hz | | Sensitivity | -59 dB (re 1 Volt/microbar) | | Noise Level | 26 dB (A-weighted) | | Maximum SPL | 118 dB | | Impedance | 3 kΩ | | Bias Voltage(s) | 1.3V (0.9-20V) | | Current Drain | 25 μA | | Cable Length | 59" (1.5 m) | | Cable Diameter | 0.06" (1.50 mm) | | Dimensions (L x W x D) | 0.5 x 0.3 x 0.14" (13 x 7.0 x 3.5 mm) | | Weight | 0.2 oz (7.0 g) | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 15.0 x 9.0 x 3.0" | |
The user manual for the Audio Ltd. Dual miniTX Transmitter and CX2-S S463447/121/5 can be downloaded in .pdf
format if it did not come with your new wireless systems, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Audio Ltd. users keep a unique electronic library
for Audio Ltd. wireless systemss,
where you can use our link to download the user manual for the Audio Ltd. Dual miniTX Transmitter and CX2-S S463447/121/5.
The user manual lists all of the functions of the Audio Ltd. Dual miniTX Transmitter and CX2-S S463447/121/5,
all the basic and advanced features and tells you how to use the wireless systems.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Audio Ltd. service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Audio Ltd. Dual miniTX Transmitter and CX2-S S463447/121/5. User manuals are also
available on the Audio Ltd. website under Pro Audio - Location Sound - Wireless Systems.
