User manual Audio-Technica AEW-R5200 Dual UHF Diversity Receiver AEW-R5200C

Operating instructions and pdf manual for use - Audio-Technica AEW-R5200 Dual UHF Diversity Receiver AEW-R5200C User manual, User manual Audio-Technica AEW-R5200 Dual UHF Diversity Receiver AEW-R5200C, Audio-Technica, AEW-R5200, Dual, UHF, Diversit


User manual for Audio-Technica AEW-R5200 Dual UHF Diversity Receiver AEW-R5200C

Audio-Technica AEW-R5200 Dual UHF Diversity Receiver AEW-R5200C
  • Manufacturer: Audio-Technica
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Wireless Receivers
  • Safety instructions
  • Startup and operation of the wireless receivers
  • Tips for setting up your Audio-Technica
  • Settings and expert assistance
  • Contact Audio-Technica service
  • Troubleshooting
  • Warranty information

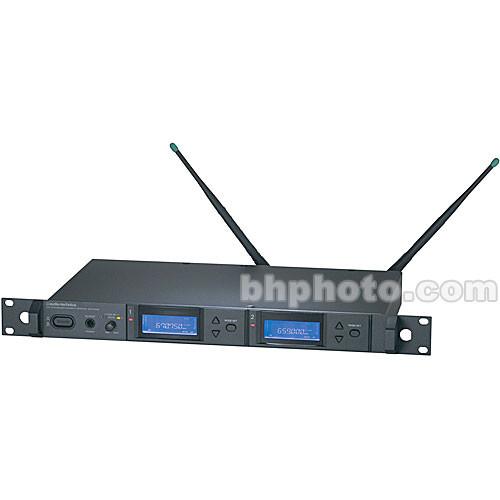

Audio-Technica AEW-R5200 Dual UHF Diversity Receiver AEW-R5200C Audio-Technica AEW-R5200 Dual UHF Diversity Receiver AEW-R5200C
Click to enlarge image

We recommend checking out our discussion threads on the Audio-Technica AEW-R5200 Dual UHF Diversity Receiver AEW-R5200C, which address similar problems with connecting and setting up Wireless Receivers Audio-Technica.



User manual for the Audio-Technica AEW-R5200 Dual UHF Diversity Receiver AEW-R5200C

The user manual for the Audio-Technica AEW-R5200 Dual UHF Diversity Receiver AEW-R5200C provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Receivers.

From Audio Technica, the AEW-R5200 dual receiver is designed for use with the 5000 series wireless microphone system. The receiver features two independent receivers with 200 UHF selectable frequencies each, enabling two transmitters to operate simultaneously. Diversity reception minimizes drop-out and RF interference, resulting in the strongest possible reception.
If you own a Audio-Technica wireless receivers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Audio-Technica AEW-R5200 Dual UHF Diversity Receiver AEW-R5200C in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Audio-Technica AEW-R5200 Dual UHF Diversity Receiver AEW-R5200C:
Type of Receiver Dual independent receivers, automatic-switching diversity
RF Carrier Frequency Range Band C - 541.500 MHz - 566.375 MHz
Approx. Working Range 300 feet
Overall Frequency Response 70 Hz to 15 kHz
Signal-to-Noise Ratio 115 dB at 40 kHz deviation (IEC-weighted), maximum modulation 75 kHz
# Of Channels 200 Channels
Type of Output(s) 2 - Balanced: XLRM-type
2 - Balanced: 1/4" TRS phone jack
Headphone Monitoring 1/4" TRS Phone
Power Requirements 100-240V AC 50/60 Hz; 15W
Battery Type/Approx. Life AC Powered Only
Display Back-Lit LCD Display & Battery / Signal Status LED
Mounting Options Table Surface / Rack Mountable rack ears included
Antenna Type BNC Flexible UHF
Dimensions 18.98 x 1.74 x 10.85" (482.0 x 44.0 x 275.5mm) (WxHxD)
Weight 8.8 lbs (4 kg)
Packaging Info
Package Weight 11.6 lb
Box Dimensions (LxWxH) 20.9 x 14.3 x 4.0"
The user manual for the Audio-Technica AEW-R5200 Dual UHF Diversity Receiver AEW-R5200C can be downloaded in .pdf format if it did not come with your new wireless receivers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Audio-Technica users keep a unique electronic library for Audio-Technica wireless receiverss, where you can use our link to download the user manual for the Audio-Technica AEW-R5200 Dual UHF Diversity Receiver AEW-R5200C.

The user manual lists all of the functions of the Audio-Technica AEW-R5200 Dual UHF Diversity Receiver AEW-R5200C, all the basic and advanced features and tells you how to use the wireless receivers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Audio-Technica service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Audio-Technica AEW-R5200 Dual UHF Diversity Receiver AEW-R5200C. User manuals are also available on the Audio-Technica website under Pro Audio - Live Sound - Wireless Receivers.
