User manual Audio-Technica ATW-3131b Wireless Lavalier Microphone ATW-3131BD

Operating instructions and pdf manual for use - Audio-Technica ATW-3131b Wireless Lavalier Microphone ATW-3131BD User manual, User manual Audio-Technica ATW-3131b Wireless Lavalier Microphone ATW-3131BD, Audio-Technica, ATW-3131b, Wireless, Lavalie


User manual for Audio-Technica ATW-3131b Wireless Lavalier Microphone ATW-3131BD

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Audio-Technica ATW-3131b Wireless Lavalier Microphone ATW-3131BD
  • Manufacturer: Audio-Technica
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your Audio-Technica
  • Settings and expert assistance
  • Contact Audio-Technica service
  • Troubleshooting
  • Warranty information
  • Price: 549 USD
We recommend checking out our discussion threads on the Audio-Technica ATW-3131b Wireless Lavalier Microphone ATW-3131BD, which address similar problems with connecting and setting up Wireless Systems Audio-Technica.



User manual for the Audio-Technica ATW-3131b Wireless Lavalier Microphone ATW-3131BD

The user manual for the Audio-Technica ATW-3131b Wireless Lavalier Microphone ATW-3131BD provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

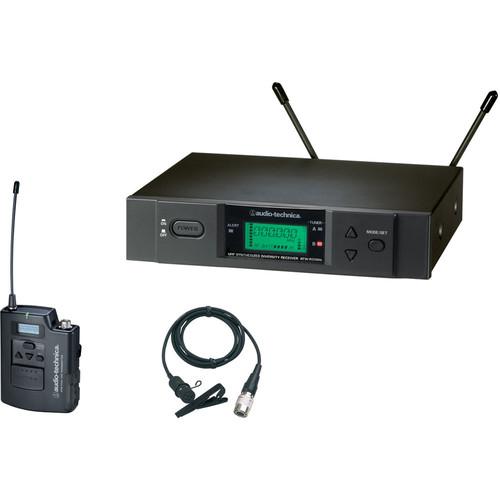

The Audio-Technica ATW-3131b is a frequency agile, true-diversity wireless lavalier microphone system which is part of the 3000 Series. It is designed to provide reliable, professional UHF technology for the most demanding audio applications. The system includes the ATW-R310b receiver, ATW-T310b UniPak Transmitter, and AT831cW Cardioid Lavalier Microphone.
If you own a Audio-Technica wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Audio-Technica ATW-3131b Wireless Lavalier Microphone ATW-3131BD in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Audio-Technica ATW-3131b Wireless Lavalier Microphone ATW-3131BDDownload user manual for Audio-Technica ATW-3131b Wireless Lavalier Microphone ATW-3131BD
(PDF file, 1.6 MB)
Additional parameters of the Audio-Technica ATW-3131b Wireless Lavalier Microphone ATW-3131BD:
Specifications
    System
    Type of System UHF Frequency Agile Bodypack
    RF Carrier Frequency Range Band D: 655.500 - 680.375 MHz
    Approx. Working Range 300' (91.4 m)
    Frequency Response 70 Hz to 15 kHz (+1 dB, -3 dB)
    Modulation Mode FM
    Maximum Deviation ±35 kHz
    Dynamic Range > 110 dB (A-weighted), typical
    Total Harmonic Distortion < 1% (at 1 kHz, ±17.5 kHz deviation)
    # Of Channels 200 Channels
    # Of Simultaneous Systems 6
    Operating Temperature 23 to 113°F (-5 to +45°C)
    Battery and LCD performance may be reduced at very low temperatures
    Receiver
    Type of Receiver True diversity
    Type of Outputs Unbalanced: 1/4" TS (mono) phone jack
    Balanced: XLRM-type
    Image Rejection 60 dB nominal, 55 dB minimum
    RF Sensitivity 20 dBuV at 60 dB S/N ratio
    Maximum Output Level XLR, balanced: +9 dBV
    1/4", unbalanced: +7 dBV
    Antenna Input BNC-type, 50 ohms
    Bias voltage 12V DC, 60 mA, each
    Power Requirements 120 VAC 60 Hz; 12-18 VDC, 500 mA, center positive, with external supply
    Display Back-Lit LCD Display & Battery / Signal Status LED
    Mounting Options Table Surface / Rack Mountable rack ears included
    Dimensions 8.27 x 1.73 x 6.47 (210.0 x 44.0 x 164.4 mm) (WxHxD)
    Weight 2.4 lb (1.1 kg)
    Transmitter
    Type of Transmitter Frequency Agile Bodypack
    Type of Input Connector High Impedance / Low Impedance / Bias UniPak Connection
    Level Control Input Level Control: -6 dB / 0 dB / +6 dB / +12 dB
    Mute Switch Power / Mute switch dual function
    Display Back-Lit LCD Display & Battery / Signal Status LED
    RF Output High: 30 mW, Low: 10 mW (switchable), at 50 ohms
    Spurious Emission Following federal and national regulations
    Batteries 2 x 1.5 V AA Alkaline not included
    Battery Life (approx.) High: 6 hours (alkaline)
    Low: 8 hours (alkaline)
    Depending on battery type and use pattern.
    Antenna Type BNC Flexible UHF
    Dimensions 2.60 x 3.43 x 0.94" (66.0 x 87.0 x 24.0 mm)(WxHxD)
    Weight 2.9 oz (81 g) without batteries
    Microphone
    Type of Microphone AT831cW Lavalier - Condenser
    Polar Pattern Cardioid
    Packaging Info
    Package Weight 5.6 lb
    Box Dimensions (LxWxH) 15.1 x 13.4 x 3.9"
    The user manual for the Audio-Technica ATW-3131b Wireless Lavalier Microphone ATW-3131BD can be downloaded in .pdf format if it did not come with your new wireless systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Audio-Technica users keep a unique electronic library for Audio-Technica wireless systemss, where you can use our link to download the user manual for the Audio-Technica ATW-3131b Wireless Lavalier Microphone ATW-3131BD.

    The user manual lists all of the functions of the Audio-Technica ATW-3131b Wireless Lavalier Microphone ATW-3131BD, all the basic and advanced features and tells you how to use the wireless systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Audio-Technica service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Audio-Technica ATW-3131b Wireless Lavalier Microphone ATW-3131BD. User manuals are also available on the Audio-Technica website under Pro Audio - Live Sound - Wireless Systems.
