User manual Audioengine HD6 Powered Speakers (Pair, Satin Black) HD6-BLK

Operating instructions and pdf manual for use - Audioengine HD6 Powered Speakers (Pair, Satin Black) HD6-BLK User manual, User manual Audioengine HD6 Powered Speakers (Pair, Satin Black) HD6-BLK, Audioengine, HD6, Powered, Speakers, Pair, Satin, Bl


User manual for Audioengine HD6 Powered Speakers (Pair, Satin Black) HD6-BLK

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Audioengine HD6 Powered Speakers (Pair, Satin Black) HD6-BLK
  • Manufacturer: Audioengine
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Speakers - Bookshelf Speakers
  • Safety instructions
  • Startup and operation of the bookshelf speakers
  • Tips for setting up your Audioengine
  • Settings and expert assistance
  • Contact Audioengine service
  • Troubleshooting
  • Warranty information
  • Price: 749 USD

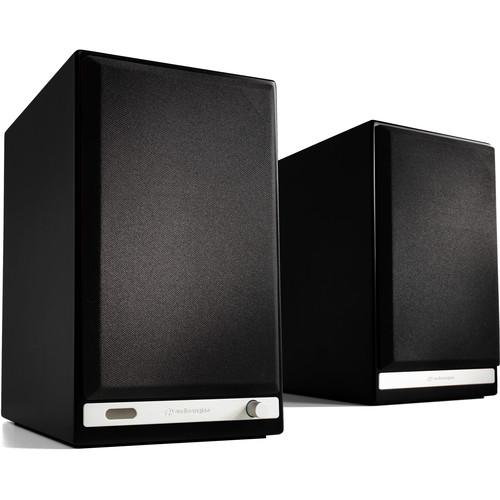

Audioengine HD6 Powered Speakers (Pair, Satin Black) HD6-BLK Audioengine HD6 Powered Speakers (Pair, Satin Black) HD6-BLK Audioengine HD6 Powered Speakers (Pair, Satin Black) HD6-BLK
Click to enlarge image

We recommend checking out our discussion threads on the Audioengine HD6 Powered Speakers (Pair, Satin Black) HD6-BLK, which address similar problems with connecting and setting up Bookshelf Speakers Audioengine.



User manual for the Audioengine HD6 Powered Speakers (Pair, Satin Black) HD6-BLK

The user manual for the Audioengine HD6 Powered Speakers (Pair, Satin Black) HD6-BLK provides necessary instructions for the proper use of the product TVs & Entertainment - Speakers - Bookshelf Speakers.

Designed to connect to virtually any device, the pair of satin black Audioengine HD6 Powered Speakers provide an analog RCA stereo input, a digital optical audio input, and ⅛" input. They consist of a 5.5" woofer and a 1" tweeter and can handle 50W per channel RMS, or 75W per channel peak. For your convenience, all connectivity is via the powered left speaker, which connects to the passive right speaker with the included speaker wire. In addition to the included speaker wire, an ⅛" audio cable, an RCA audio cable, magnetic removable grilles, and an IR remote are also included.
If you own a Audioengine bookshelf speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Audioengine HD6 Powered Speakers (Pair, Satin Black) HD6-BLK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Audioengine HD6 Powered Speakers (Pair, Satin Black) HD6-BLK:
Specifications
Speaker System
Speaker Design 2.0-channel powered bookshelf system
Drivers 1 x 5.5" (14.0 cm) Kevlar woofer, per speaker
1 x 1.0" (2.5 cm) silk dome tweeter, per speaker
Amplifier Output RMS: 50 W per channel
Peak: 75 W per channel
Amplifier Type Analog dual-class A/B monolithic
THD + N <0.05% at all power settings
SNR >95 dB (typical A-weighted)
Crosstalk -50 dB
Frequency Response 50 Hz to 22 kHz, ±1.5 dB
Connectivity
Input Connector Left, Powered Speaker: 1 x Optical audio
1 x RCA L/R pair
1 x ⅛" (3.5 mm) mini-jack
1 x Power inlet

Right, Passive Speaker: 1 x Binding post variable line-in
Output Connector Left, Powered Speaker: 1 x RCA L/R pair
1 x Binding post variable line-out
Analog Input Impedance 48 kOhms unbalanced (mini-jack and RCA inputs)
D/A Converter AKM AK4396
Bluetooth
Bluetooth Version Bluetooth 4.0 audio
Supported Bluetooth Profiles aptX, AAC, SBC
Bluetooth Range Up to 100' (30 m) typical
Latency ~30 ms
Input Bit Depth 24-bit upsampled
Optical I/O
Input Bit Depth Up to 24-bit native
Input Data Rate Up to 195 Kbps native
Physical and Environmental
Environmental Requirements Operating Temperature: 32 to 95°F (0 to 35°C)
Non-Operating Temperature: -4 to 113°F (-20 to 45°C)
Relative Humidity: 5 to 95%, non-condensing
Protection Features Output current limiting, thermal over-temperature, power on/off transient protection, replaceable external main fuse
Power Requirements 115/240 VAC, 50/60 Hz manually switchable
Power Consumption Idle: 10 W
Mute: 6 W
Sleep: 4 W
Dimensions Each Speaker: 11.75 x 7.25 x 10.0" (30.0 x 18.5 x 25.0 cm)
Weight Left, Powered Speaker: 17.5 lb (8.0 kg)
Right, Passive Speaker: 12.5 lb (5.5 kg)
Packaging Info
Package Weight 37.8 lb
Box Dimensions (LxWxH) 20.2 x 17.3 x 15.1"
The user manual for the Audioengine HD6 Powered Speakers (Pair, Satin Black) HD6-BLK can be downloaded in .pdf format if it did not come with your new bookshelf speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Audioengine users keep a unique electronic library for Audioengine bookshelf speakerss, where you can use our link to download the user manual for the Audioengine HD6 Powered Speakers (Pair, Satin Black) HD6-BLK.

The user manual lists all of the functions of the Audioengine HD6 Powered Speakers (Pair, Satin Black) HD6-BLK, all the basic and advanced features and tells you how to use the bookshelf speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Audioengine service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Audioengine HD6 Powered Speakers (Pair, Satin Black) HD6-BLK. User manuals are also available on the Audioengine website under TVs & Entertainment - Speakers - Bookshelf Speakers.
