User manual Audix RAD360 Handheld Wireless Microphone System W3OM6P

Operating instructions and pdf manual for use - Audix RAD360 Handheld Wireless Microphone System W3OM6P User manual, User manual Audix RAD360 Handheld Wireless Microphone System W3OM6P, Audix, RAD360, Handheld, Wireless, Microphone, System, W3OM6P,


User manual for Audix RAD360 Handheld Wireless Microphone System W3OM6P

Audix RAD360 Handheld Wireless Microphone System W3OM6P
  • Manufacturer: Audix
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your Audix
  • Settings and expert assistance
  • Contact Audix service
  • Troubleshooting
  • Warranty information
  • Price: 779 USD
We recommend checking out our discussion threads on the Audix RAD360 Handheld Wireless Microphone System W3OM6P, which address similar problems with connecting and setting up Wireless Systems Audix.



User manual for the Audix RAD360 Handheld Wireless Microphone System W3OM6P

The user manual for the Audix RAD360 Handheld Wireless Microphone System W3OM6P provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

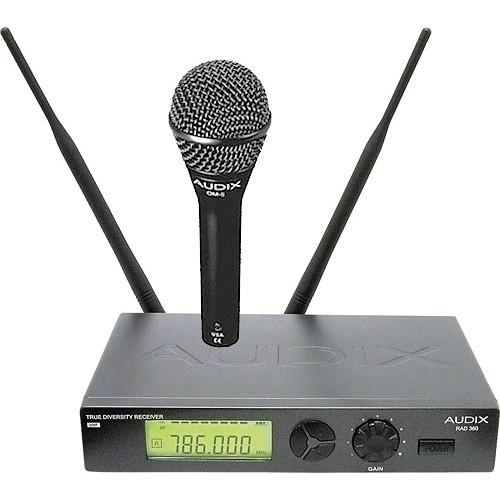

The Audix RAD360 is a UHF wireless microphone system designed to deliver professional results at a cost effective price point. The system consists of the RAD360-R UHF diversity receiver and RAD360-T handheld transmitter.
If you own a Audix wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Audix RAD360 Handheld Wireless Microphone System W3OM6P in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Audix RAD360 Handheld Wireless Microphone System W3OM6P:
Specifications
    System
    Type of System UHF Diversity Handheld
    RF Carrier Frequency Range 614 - 662MHz
    Frequency Channel P
    Approx. Working Range 200' Minimum
    Overall Frequency Response 40Hz to 18kHz
    Signal-to-Noise Ratio > 110dB
    Pilot Tone 32.768kHz
    Compander HDX
    # Of Channels 193
    # Of Simultaneous Systems not specified by manufacturer
    Receiver
    Type of Receiver RAD360-R Diversity
    Type of Outputs Balanced 3-pin XLR
    Unbalanced 1/4" Phone
    Headphone Monitoring No
    Power Requirements 120V AC 60Hz; 12-18V DC, 350 mA, with external power supply
    Battery Type/Approx. Life None
    Display LCD
    Mounting Options Optional RM1 and RM2 single and dual rackmount kits
    Antenna Type x2 3/4 Wave whip antenna
    Image Rejection 50dB nominal, 45dB minimum
    Signal-to-Noise Ratio 110dB @ 30kHz deviation (IEC-weighted), max modulation 75 Hz
    THD 1% (10 kHz deviation at 1 kHz)
    Sensitivity 26 dBμV (S/N 60 dB at 5 kHz deviation, IEC-weighted) < 2.5μV
    Audio Output Unbalanced: 40 mV (at 1 kHz, 10kHz deviation, 10k ohm load) (AF Level set at "0")
    Balanced: 8mV (at 1 kHz, 10kHz deviation, 600 ohm load)
    Deviation Peak Deviation
    Balanced: -24 to +18dBu
    Unbalanced: -30 to +12dBu (adjustable in 6 dB-steps)
    Image Image Rejection: > 72dB
    Adjacent Channel Rejection: > 68dB
    Intermodulation Spacing: > 68dB
    Power Supply 120V AC 60 Hz; 12-18V DC, 350 mA, with external supply
    Dimensions 8.35 x 1.1 x 6.5" (212 x 38 x 165mm)(WxHxD)
    Weight 2.32lbs (1050 g)
    Transmitter
    Type of Transmitter RAD360-T Handheld
    Type of Input Connector None
    Type of Microphone OM6
    Polar Pattern Hypercardioid
    Interchangeable Mic Heads No
    Battery Type/Approx. Life 2x AA up to 12 hours (not included) Current Consumption: 100mA typical
    RF Output Power 50 mW Max
    Spurious Emission < -54 dBm
    SPL > 140dB (depending on capsule)
    Mute Switch 3-Position Switch On/Mute/Off
    Level Control Input Level Adjust
    Antenna Type Internal
    Display None
    Dimensions 9.4 x 2.1" (238.67 x 53.4mm) (Length x Diameter)
    Weight 12.35 oz (350 g)
    Packaging Info
    Package Weight 7.0 lb
    Box Dimensions (LxWxH) 14.9 x 13.5 x 3.8"
    The user manual for the Audix RAD360 Handheld Wireless Microphone System W3OM6P can be downloaded in .pdf format if it did not come with your new wireless systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Audix users keep a unique electronic library for Audix wireless systemss, where you can use our link to download the user manual for the Audix RAD360 Handheld Wireless Microphone System W3OM6P.

    The user manual lists all of the functions of the Audix RAD360 Handheld Wireless Microphone System W3OM6P, all the basic and advanced features and tells you how to use the wireless systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Audix service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Audix RAD360 Handheld Wireless Microphone System W3OM6P. User manuals are also available on the Audix website under Pro Audio - Live Sound - Wireless Systems.
