User manual for the Aurora Multimedia DXW-2-RX1 HDBaseT Wall Plate DXW-2-RX1-W
The user manual for the Aurora Multimedia DXW-2-RX1 HDBaseT Wall Plate DXW-2-RX1-W provides
necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.

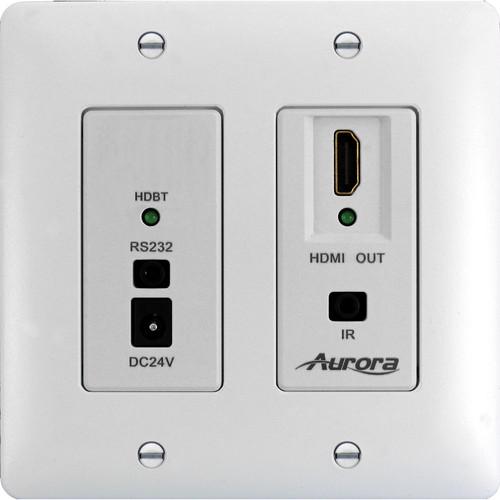

The white DXW-2-RX1 HDBaseT Wall Plate Receiver from Aurora Multimedia is a two-gang Decora style HDBaseT receiver wall plate with HDMI output, RS-232, and IR. A single CAT 5e/6/6A cable is used to receive signals up to 4K x 2K from a compatible transmitter located up to 230' away. Power can be received over the HDBaseT connection (PoH) along with the signals or generated locally and sent to the transmitter unit. To simplify even further, the unit can be powered from the front or rear. The DXW-2-RX1 can be mounted behind displays or in any other situation requiring a neat installation.
If you own a Aurora Multimedia video extenders & repeaters and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Aurora Multimedia DXW-2-RX1 HDBaseT Wall Plate DXW-2-RX1-W in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Aurora Multimedia DXW-2-RX1 HDBaseT Wall Plate DXW-2-RX1-W:
Specifications
HDMI Compliance
HDMI 3D
HDCP Compliant
Yes
Distance
230' (70.1 m) over one CAT 5e/6/7 cable (1080p 60 Hz 48 bit)
Max Resolution
4K x 2K
Color Depth
48 bit
Connectors
Front: HDMI, output RS-232 DC power IR
Rear: RJ-45, HDBaseT input
Control
IR: IR pass through for controlling remote devices Serial: Capable of being controlled remotely through compatible transmitter
Power Options
24 VDC PoH
Dimensions
2 Gang, 3.7 x 4.3 x 1.3" (9.5 x 11.0 x 3.4 cm)
Weight
1 lb (0.5 kg)
