User manual Aurora Multimedia DXW-2E-RX2 HDBaseT Wall Plate DXW-2E-RX2-B

Operating instructions and pdf manual for use - Aurora Multimedia DXW-2E-RX2 HDBaseT Wall Plate DXW-2E-RX2-B User manual, User manual Aurora Multimedia DXW-2E-RX2 HDBaseT Wall Plate DXW-2E-RX2-B, Aurora, Multimedia, DXW-2E-RX2, HDBaseT, Wall, Plate


User manual for Aurora Multimedia DXW-2E-RX2 HDBaseT Wall Plate DXW-2E-RX2-B

Aurora Multimedia DXW-2E-RX2 HDBaseT Wall Plate DXW-2E-RX2-B
  • Manufacturer: Aurora Multimedia
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters
  • Safety instructions
  • Startup and operation of the video extenders & repeaters
  • Tips for setting up your Aurora Multimedia
  • Settings and expert assistance
  • Contact Aurora Multimedia service
  • Troubleshooting
  • Warranty information
  • Price: 419 USD
Aurora Multimedia DXW-2E-RX2 HDBaseT Wall Plate DXW-2E-RX2-B Aurora Multimedia DXW-2E-RX2 HDBaseT Wall Plate DXW-2E-RX2-B
Click to enlarge image

We recommend checking out our discussion threads on the Aurora Multimedia DXW-2E-RX2 HDBaseT Wall Plate DXW-2E-RX2-B, which address similar problems with connecting and setting up Video Extenders & Repeaters Aurora Multimedia.



User manual for the Aurora Multimedia DXW-2E-RX2 HDBaseT Wall Plate DXW-2E-RX2-B

The user manual for the Aurora Multimedia DXW-2E-RX2 HDBaseT Wall Plate DXW-2E-RX2-B provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.

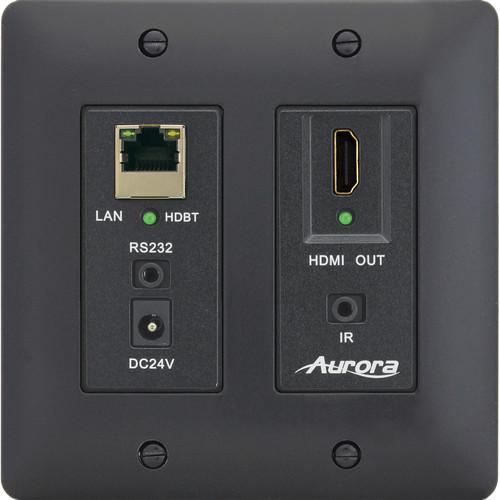

The black DXW-2E-RX2 HDBaseT Wall Plate Receiver from Aurora Multimedia is a two-gang Decora style HDBaseT receiver wall plate with HDMI output, Ethernet, RS-232, and IR. A single CAT 5e/6/6A cable is used to receive signals up to 4K x 2K from a compatible transmitter located up to 330' away. Power can be received over the HDBaseT connection (PoH) along with the signals or generated locally and sent to the transmitter unit. To simplify even further, the unit can be powered from the front or rear. The DXW-2E-RX2 can be mounted behind displays or in any other situation requiring neat mounting.
If you own a Aurora Multimedia video extenders & repeaters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Aurora Multimedia DXW-2E-RX2 HDBaseT Wall Plate DXW-2E-RX2-B in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Aurora Multimedia DXW-2E-RX2 HDBaseT Wall Plate DXW-2E-RX2-B:
HDMI Compliance HDMI 3D
HDCP Compliance Yes
Distance 330' (100.6 m) over one CAT 5e/6/7 cable (1080p 60 Hz 48 bit)
Max Resolution 4K x 2K
Color Depth 48 bit
Connectors HDMI, output
RJ-45, LAN
RS-232
DC power
Control IR: IR pass through for controlling remote devices
LAN: 10/100 RJ-45
Serial: Remotely controllable via compatible transmitter
Power Options 24 VDC
PoH
Dimensions 2 Gang, 3.7 x 4.3 x 1.3" (9.5 x 11.0 x 3.4 cm)
Weight 1 lb (0.5 kg)
The user manual for the Aurora Multimedia DXW-2E-RX2 HDBaseT Wall Plate DXW-2E-RX2-B can be downloaded in .pdf format if it did not come with your new video extenders & repeaters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Aurora Multimedia users keep a unique electronic library for Aurora Multimedia video extenders & repeaterss, where you can use our link to download the user manual for the Aurora Multimedia DXW-2E-RX2 HDBaseT Wall Plate DXW-2E-RX2-B.

The user manual lists all of the functions of the Aurora Multimedia DXW-2E-RX2 HDBaseT Wall Plate DXW-2E-RX2-B, all the basic and advanced features and tells you how to use the video extenders & repeaters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Aurora Multimedia service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Aurora Multimedia DXW-2E-RX2 HDBaseT Wall Plate DXW-2E-RX2-B. User manuals are also available on the Aurora Multimedia website under Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.
