User manual for the Avalon Design AD2022 Dual Mono Pure Class A AD2022-BL

The user manual for the Avalon Design AD2022 Dual Mono Pure Class A AD2022-BL provides necessary instructions for the proper use of the product Pro Audio - Recording - Microphone Preamps.

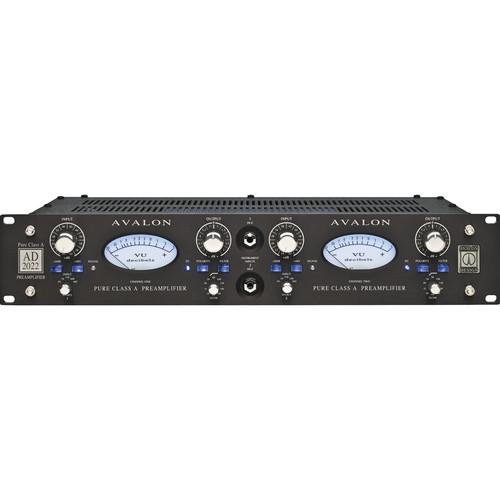

The AD2022 Dual Mono Symmetrical Pure Class A Preamplifier from Avalon Design includes the original sonic capabilities and transparency of M2, M22, and M5 Preamplifiers and several additional features including selectable microphone source loading for optimized cable/mic matching, improved, high-voltage Class A-regulated power supplies, two high Z instrument inputs, variable-passive high pass filter, polytetrafluoroethylene / silver wiring, and double-plated circuit boards for superior low level signal transfer.

The AD2022 Preamplifier incorporates an advanced, high-performance microphone transformer. Split low-ratio primary windings are carefully combined within a custom mu-metal core for extended smooth frequency response and very low distortion.

Sealer silver relays are used for minimal signal invasion. Input signal selector, high pass filter, polarity-phase reverse, 48V power, and the 20 dB input attenuator utilize local, sealed relay operation. A variable passive high pass filter provides a minimum phase shift design while eliminating low frequency rumble, wind noise, and mechanical vibration at sub sonic frequencies.

Two 100% discrete, high-voltage, symmetrical Pure Class A signal amplifiers are utilized per channel. The first operates in a cascaded-cascode FET configuration, while the second stage amplifier is fully bipolar. The twin amplifiers share the total available gain requirement. This shared architecture increases high level headroom capability, improves transient response, and doubles the internal bandwidth of the high performance pure Class A signal amplifiers.

The high-current, DC-coupled, discrete Class A amplifiers are utilized for the output drive interface with 36 dB capability into all known loads. Two large, high-quality analog VU meters indicate accurate signal readings, while bi-color LEDs offer peak indication at 0 and 20 dB.
If you own a Avalon Design microphone preamps and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Avalon Design AD2022 Dual Mono Pure Class A AD2022-BL in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Avalon Design AD2022 Dual Mono Pure Class A AD2022-BL:
Topology Circuit: Twin cascode FET and bipolar low level signal amplifiers, high-voltage, 100% discrete, symmetrical Pure Class A
Input Type and Load: Transformer balanced low ratio, 50, 150, 600, and 1,500 Ω input load selection
Mic Maximum Level: 36 dB balanced XLR 2-pin hot (with -20 dB passive attenuator)
Maximum Level Instrument: 18 dB at 100 kΩ instrument input level, standard mono 1/4" jack
Input Attenuator -20 dB resistive pre transformer primary, sealed silver relay
Phantom Power 48 V regulated 50 mA capability, sealed silver relay
Filter High Pass Filter: Passive, variable from 30 to 185 Hz @ 6 dB/octave, sealed silver relay
Polarity Reverse: Sealed silver relay on microphone input
Gain Range Input: 20 to 64 dB (in 4 dB steps)
Output: ±3 dB variable conductive plastic potentiometer
Output Level Maximum: 36 dB balanced 600 Ω, DC coupled, discrete symmetrical Pure Class A
Output Type XLR connector, 2-pin hot
Noise -126 dB 150 Ω (EIN unweighted)
-102 dB (20 kHz unweighted)
Distortion THD, IMD: 0.05% nominal
Frequency Response -3 dB: 1 Hz to 12O kHz transformer limit
Bandwidth System: DC to 1 MHz
Meter High quality, illuminated analog VU meter (0 dB equals to 4 dB) (output meter)
Bi-color LEDs
0 and 20 dB peak detection circuit (peak meter)
Power Supply B2T: External toroidal 100 to 240 VAC, 50 to 60 Hz selectable, 150 W maximum

Power supply included.

Dimensions Preamplifier Unit: 19.00 x 12.00 x 3.50" (482.60 x 304.80 x 88.90 mm)
B2T Power Supply: 5.00 x 7.00 x 3.25" (127.00 x 177.80 x 82.55 mm)
Weight Preamplifier Unit: 15.0 lb (6.8 kg)
B2T Power Supply: 7.0 lb (3.1 kg)
