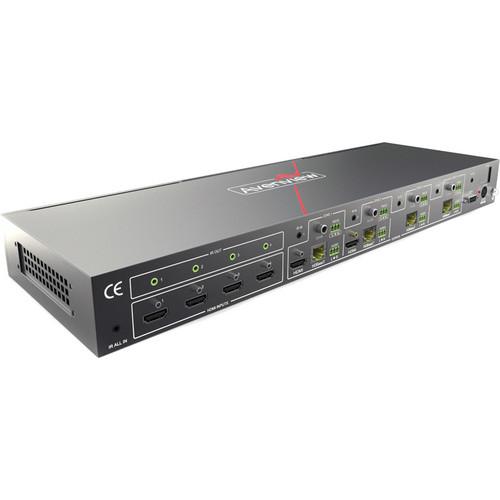

The SW-HBT4K-C6-4X4E HDMI HdBaseT Matrix Switcher with PoE/IR/RS232/Ethernet/4K from Avenview supports the transmission of video and multi-channel digital audio along with IR, RS-232 and LAN (Internet) over four CAT5e/6/7 cables. This matrix can be controlled via Telnet or Web GUI to output four HD sources over any four single CAT5e/6/7 outputs to any of the four screens to be displayed.

This 1RU rackmountable transmitter unit features four UTP output ports which allow you to extend all signals up to 330' away. This transmitter is compatible with the HBT-C6POE-R and HBT-C6PLT-R receivers (sold separately). These receiver units can be powered by the 24V from the transmitter Tx PoE (Power over the CATx cable to the RX).
If you own a Avenview hdmi & a/v switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Avenview SW-HBT4K-C6-4X4E HDMI HdBaseT Matrix SW-HBT4K-C6-4X4E in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Avenview SW-HBT4K-C6-4X4E HDMI HdBaseT Matrix SW-HBT4K-C6-4X4E:
LAN/Ethernet 100 Mbps
Video Bandwidth 300 MHz (10.2 Gbps)
Supported Resolutions 480i - 1080p @ 50/60 Hz,
1080p @ 24, 3D
Ultra HD (3840 x 2160) @ 24/25/30 Hz
DCI 4K (4096 x 2160) @ 24 Hz
Audio Support LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
HDMI 49' (15 m)/ 1080p @ 8-bit
19.7' (6 m) / 1080p @ 12-bit
ESD Protection Human Body Model: ± 8 kV (air-gap discharge)
± 4 kV (contact discharge)
Input Connectors 4 x 19-pin female, type A, HDMI,
5 x 3.5 mm stereo phone jack, IR Receiver
1 x 9-pin D-Sub, RS-232
1 x RJ45, IP Control / LAN Serving
1 x USB Mini type B, for firmware updates
Output Connectors 4 x RJ45, WE/SS 8P8C with 2 LED indicators
4 x 3.5 mm stereo phone jack, IR Emitter
IR Frequency 30 - 50 kHz
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Relative Humidity 20 to 90%, non-condensing
Power Supply 24 VDC, 3.75 A

US/EU standards, CE/FCC/UL certified

Power Consumption 66 W, PoE
Dimensions 9.8 x 17.1 x 1.7" (24.9 x 43.6 x 4.4 cm)
Weight 7.3 lb (3.3 kg)
The user manual for the Avenview SW-HBT4K-C6-4X4E HDMI HdBaseT Matrix SW-HBT4K-C6-4X4E can be downloaded in .pdf format if it did not come with your new hdmi & a/v switchers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Avenview users keep a unique electronic library for Avenview hdmi & a/v switcherss, where you can use our link to download the user manual for the Avenview SW-HBT4K-C6-4X4E HDMI HdBaseT Matrix SW-HBT4K-C6-4X4E.

The user manual lists all of the functions of the Avenview SW-HBT4K-C6-4X4E HDMI HdBaseT Matrix SW-HBT4K-C6-4X4E, all the basic and advanced features and tells you how to use the hdmi & a/v switchers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Avenview service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Avenview SW-HBT4K-C6-4X4E HDMI HdBaseT Matrix SW-HBT4K-C6-4X4E. User manuals are also available on the Avenview website under TVs & Entertainment - Switchers, Extenders & Wireless - HDMI & A/V Switchers.
