User manual for Avenview W-HDM3D-100-SET HDMI Extender Set W-HDM3D-100-SET

Avenview W-HDM3D-100-SET HDMI Extender Set W-HDM3D-100-SET
  • Manufacturer: Avenview
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Switchers, Extenders & Wireless - HDMI Signal Extenders
  • Safety instructions
  • Startup and operation of the hdmi signal extenders
  • Tips for setting up your Avenview
  • Settings and expert assistance
  • Contact Avenview service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Avenview W-HDM3D-100-SET HDMI Extender Set W-HDM3D-100-SET, which address similar problems with connecting and setting up HDMI Signal Extenders Avenview.



User manual for the Avenview W-HDM3D-100-SET HDMI Extender Set W-HDM3D-100-SET

The user manual for the Avenview W-HDM3D-100-SET HDMI Extender Set W-HDM3D-100-SET provides necessary instructions for the proper use of the product TVs & Entertainment - Switchers, Extenders & Wireless - HDMI Signal Extenders.

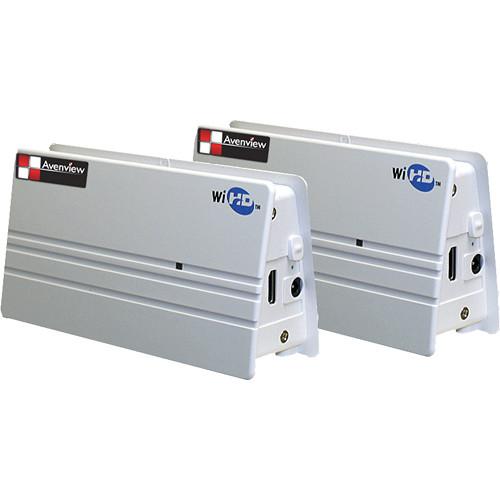

The wireless 60 GHz W-HDM3D-100-SET HDMI Extender Set from Avenview comprises of a transmitter and receiver unit that support 3D and Full HD video outputs. The wireless transmission between the extender and receiver is unaffected by cell phones, RFID, and wireless 802.11 b/g/n. The 60 GHz signals have a range of 32.8' (10m), and cannot pass through walls. The 128-bit AES encryption ensures that no other devices can communicate with this extender set.

The 60 GHz W-HDM3D-S-100 transmitter wirelessly sends high-quality audio and video (up to 1080p / 60 Hz) to a paired W-HDM3D-R-100 receiver in a typical operating room. The transmitter connects to a video source (such as an endoscopic camera) via an HDMI or HDMI-to-DVI cable. The receiver can be connected via an HDMI or HDMI-to-DVI cable to a video monitor.

Up to six pairs of the W-HDM3D-100-SET transmitter/receiver combinations can be used simultaneously within the same room if they operate at different frequencies within the 60 GHz band.
If you own a Avenview hdmi signal extenders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Avenview W-HDM3D-100-SET HDMI Extender Set W-HDM3D-100-SET in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Avenview W-HDM3D-100-SET HDMI Extender Set W-HDM3D-100-SET:
Specifications
    Transmitter
    HDMI Compliance HDMI 1.4a
    HDCP Compliance Yes
    Video Bandwidth 4 Gb/s over-the-air data transfer rate
    Video Resolutions 480i / 480p / 720p / 1080i / 1080p @ 60 Hz
    Transmission Range Full HD: (1080p) approximately 32.8' (10.0 m)
    Audio Support Surround Sound (up to 7.1 channel) or Stereo Digital Audio
    Input Connectors 1 x HDMI female
    Output Connectors 1 x HDMI (local out)
    Power Consumption Normal 15 W / Standby 10 W / Off 1 W
    Power Supply 90 to 240 VAC approximately, 50 to 60 Hz input
    5 VDC, 2 A
    LED Indicators 1 LED display, power indication
    Operating Temperature 32 to 104°F (0 to 40°C)
    Storage Temperature -4 to 140°F (-20 to 60°C)
    Relative Humidity 20 to 90% RH (no condensation)
    Dimensions (L x W x H) 6.5 x 3.4 x 2.0" (165.1 x 86.4 x 50.8 mm)
    Weight 0.50 lb ( 0.23 kg)
    Receiver
    HDMI Compliance HDMI 1.4a
    HDCP Compliance Yes
    Video Bandwidth 4 Gb/s over-the-air data transfer rate
    Video Resolutions 480i / 480p / 720p / 1080i / 1080p @ 60 Hz
    Transmission Range Full HD: (1080p) approximately 32.8' (10.0 m)
    Audio Support Surround Sound (up to 7.1 channel) or Stereo Digital Audio
    Input Connectors 1 x HDMI female
    Output Connectors 1 x HDMI (local out)
    Power Consumption Normal 15 W / Standby 10 W / Off 1 W
    Power Supply 90 to 240 VAC approximately, 50 to 60 Hz input
    5 VDC, 2 A
    LED Indicators 1 LED display, power indication
    Operating Temperature 32 to 104°F (0 to 40°C)
    Storage Temperature -4 to 140°F (-20 to 60°C)
    Relative Humidity 20 to 90% RH (no condensation)
    Dimensions (L x W x H) 6.5 x 3.4 x 2.0" (165.1 x 86.4 x 50.8 mm)
    Weight 0.50 lb ( 0.23 kg)
    Packaging Info
    Package Weight 5.1 lb
    Box Dimensions (LxWxH) 21.0 x 18.0 x 7.0"
    The user manual for the Avenview W-HDM3D-100-SET HDMI Extender Set W-HDM3D-100-SET can be downloaded in .pdf format if it did not come with your new hdmi signal extenders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Avenview users keep a unique electronic library for Avenview hdmi signal extenderss, where you can use our link to download the user manual for the Avenview W-HDM3D-100-SET HDMI Extender Set W-HDM3D-100-SET.

    The user manual lists all of the functions of the Avenview W-HDM3D-100-SET HDMI Extender Set W-HDM3D-100-SET, all the basic and advanced features and tells you how to use the hdmi signal extenders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Avenview service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Avenview W-HDM3D-100-SET HDMI Extender Set W-HDM3D-100-SET. User manuals are also available on the Avenview website under TVs & Entertainment - Switchers, Extenders & Wireless - HDMI Signal Extenders.
