User manual Avid Pro Tools / Duet - Personal Music Studio 9900-65584-00

Operating instructions and pdf manual for use - Avid Pro Tools / Duet - Personal Music Studio 9900-65584-00 User manual, User manual Avid Pro Tools / Duet - Personal Music Studio 9900-65584-00, Avid, Pro, Tools, /, Duet, Personal, Music, Studio, 99


User manual for Avid Pro Tools / Duet - Personal Music Studio 9900-65584-00

Avid Pro Tools / Duet - Personal Music Studio 9900-65584-00
  • Manufacturer: Avid
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - Audio Interfaces & Systems
  • Safety instructions
  • Startup and operation of the audio interfaces & systems
  • Tips for setting up your Avid
  • Settings and expert assistance
  • Contact Avid service
  • Troubleshooting
  • Warranty information
  • Price: 799 USD

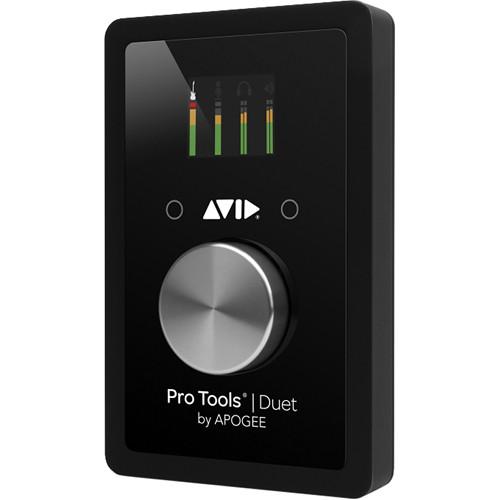

Avid Pro Tools / Duet - Personal Music Studio 9900-65584-00 Avid Pro Tools / Duet - Personal Music Studio 9900-65584-00
Click to enlarge image

We recommend checking out our discussion threads on the Avid Pro Tools / Duet - Personal Music Studio 9900-65584-00, which address similar problems with connecting and setting up Audio Interfaces & Systems Avid.



User manual for the Avid Pro Tools / Duet - Personal Music Studio 9900-65584-00

The user manual for the Avid Pro Tools / Duet - Personal Music Studio 9900-65584-00 provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

Pro Tools / Duet from Avid is a powerful yet portable music creation and audio recording studio designed for singer/songwriters and loop-based musicians. By combining the industry-standard Pro Tools software with the two input/four output Duet audio interface from Apogee, the bundle provides everything needed to create professional-level productions. The Avid branded USB audio interface features state-of-the-art A/D and D/A conversion and world-class microphone preamps, delivering the legendary Apogee sound quality.

Aside from functioning as an audio interface, the Duet is also an efficient interface controller. Using the included EUCON-enabled Pro Tools IO Control software allows for taking direct control of the recording and monitoring functions through the software control panel. Solidly built with die-cast aluminum, steel, and a scratch-resistant display panel the interface provides a robust chassis with added protection against daily abuse and the unpredictability of travel. Plus, its compact size makes it an easy fit in any desktop studio environment, or placed into a bag or backpack, for on-the-go creation.

Pro Tools from Avid, an industry standard software, is now based on a 64-bit architecture. While there are several important enhancements, the software is now able to access as much RAM as is present on a computer system over the previous 4 GB limit. What this means is that virtual instruments that contain large sample file bases can now be fully loaded, while the number of instruments that can be simultaneously available in a session is also increased.

Another major feature that many have clamored for is offline bouncing. Now preparing intermediary or final mixes is much faster. Sound quality is maintained throughout due to the time-stamped automation while multiple files in different file formats can be created simultaneously. Record input monitoring has been enhanced with ultra-low latency even when routing through plug-ins. And those working with audio for picture will appreciate the ability to play Avid DNxHD files and other HD formats directly within the timeline without transcoding.
If you own a Avid audio interfaces & systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Avid Pro Tools / Duet - Personal Music Studio 9900-65584-00 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Avid Pro Tools / Duet - Personal Music Studio 9900-65584-00:
Hardware
Interface USB 2.0
Converter 24-bit/192 kHz
A/D Conversion Maximum Input Level: +20 dBu, referenced +4 dBu
Maximum Input Level: +6 dBV, referenced -10 dBV
Input Impedance: 5kΩ
Frequency Response: 20 Hz to 20 kHz, > +/-0.2 dB @ 44.1 kHz
Relative THD+N: -106 dB @ 96 kHz
Dynamic Range: 114 dB, A-weighted
D/A Conversion Maximum Output Level: +20 dBu, referenced +4 dBu
Maximum Output Level: +6 dBV, referenced -10 dBV
Line Output Impedance: 90Ω
Maximum Headphone Output Level : 19 dBu
HPH Output Impedance: 30Ω
Frequency response: 20 Hz to 20 kHz, > +/- 0.05 dB @ 44.1 kHz
Relative THD+N: -113 dB @ 96 kHz
Dynamic Range: 123 dB, A-weighted
Analog Inputs 2 x XLR/TRS combo connectors via breakout cable
Mic Preamps Gain: Up to 75 dB
EIN: 128 dB (unweighted) @ 60 dB, 150Ω input
Max Input Level: +20 dBu
Input Impedance: 3kΩ
Hi-Z Input Max Input Level: 14 dBu
Input Impedance: >2MΩ
MIDI 1 x USB-A type MIDI I/O for connecting CoreMIDI-compatible keyboard, synthesizer, or DJ controller
Other 48V phantom power selectable on analog inputs
Soft Limit selectable on analog inputs
Low-latency monitoring
Control knob
Two configurable top-panel touchpads
Display Full color, high-resolution OLED display for viewing input and output levels and settings
Power Requirements USB bus-powered on Mac
DC power supply included for PC use
Dimensions (WxDxH) 4.0 x 6.3 x 1.5" (102 x 160 x 38 mm)
Weight 1.1 lb (0.5 kg)
System Requirements For Pro Tools Software

Mac
Avid-qualified Mac
OS X Mountain Lion 10.8, 10.9 Mavericks
4 GB RAM minimum (8 GB for video playback)
15 GB free hard drive space for installation
USB port for iLok (plus Internet connection for software download)
iLok 2 (original iLok not supported)

PC
Avid-qualified PC
Windows 7 or 8 Home Premium, Professional, or Ultimate (64-bit)
4 GB RAM minimum (8 GB for video playback)
15 GB free hard drive space for installation
USB port for iLok (plus Internet connection for software download)
iLok 2 (original iLok not supported)
Packaging Info
Package Weight 2.85 lb
Box Dimensions (LxWxH) 8.976 x 6.772 x 4.252"
The user manual for the Avid Pro Tools / Duet - Personal Music Studio 9900-65584-00 can be downloaded in .pdf format if it did not come with your new audio interfaces & systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Avid users keep a unique electronic library for Avid audio interfaces & systemss, where you can use our link to download the user manual for the Avid Pro Tools / Duet - Personal Music Studio 9900-65584-00.

The user manual lists all of the functions of the Avid Pro Tools / Duet - Personal Music Studio 9900-65584-00, all the basic and advanced features and tells you how to use the audio interfaces & systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Avid service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Avid Pro Tools / Duet - Personal Music Studio 9900-65584-00. User manuals are also available on the Avid website under Pro Audio - Computer Audio - Audio Interfaces & Systems.
