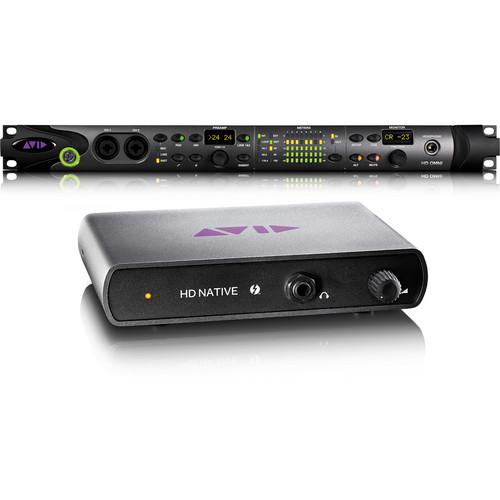

The Pro Tools HD Native Thunderbolt Interface and HD OMNI Interface Bundle from Avid is a music and post-production core system that allows the professional to create complex, high-quality audio productions, using the full capabilities of Pro Tools HD software in a lower-cost, native solution.
Pro Tools HD and HDX systems deliver both card based and computer based DSP but with an incremental increase in cost. With the Pro Tools HD Native system, a single PCI card handles the mixing and routing duties, with the rest of the DSP processing handled by the computer. Now Avid has taken the card and housed it in a Thunderbolt equipped chassis for enhanced portability when paired with a Thunderbolt equipped laptop computer.
Pro Tools software has been the industry-standard digital audio production platform for years. Pro Tools HD 10 software tightly integrates the HD Native hardware and computer together as one, delivering performance and reliability, even with large mixes. It includes all the tools, advanced workflows, virtual instruments, and plug-ins needed to compose, record, edit, and mix music and/or sound for picture.
The HD OMNI interface can be used to record instrument and vocal performances, while providing dedicated cue mixes for artists and monitoring their performance through a discrete mix. Overdub and Foley recording capabilities are available for post production, in addition to creating monitor mixes with up to 7.1 channels. 7.1 mixes can be folded down to almost any channel configuration subset required.
For those occasions when the Pro Tools software doesn't need to be launched, or the computer turned on, the interface features a built-in, customizable, 14-input monitor mixer, allowing for the continued monitoring of external sources, such as keyboards, drum machines, and digital music players.
If you own a Avid audio interfaces & systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Avid Pro Tools HD Native Thunderbolt Interface and 9920-65109-00 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Avid Pro Tools HD Native Thunderbolt Interface and 9920-65109-00:
Specifications
Converters
24-bit
Sample Rates
44.1, 48, 88.2, 96, 176.4 and 192 kHz
Analog In
2 x XLR/TRS combi Microphone/Line (front panel) 2 x XLR Microphone (rear panel) 4 x 1/4" TRS phone Line (rear panel) 2 x 1/4" TRS phone Return (rear panel)
Analog Outputs
1 x 25-pin D-Sub (outputs 1-8) 2 x 1/4" TRS phone AUX 2 x 1/4" TRS phone Send 1 x 1/4" TRS phone Headphone
Digital Input Connectors
1 x XLR AES/EBU (supports AES Single-Wire 192 kHz) 1 x TOSLink ADAT optical (also functions in 2-channel optical S/PDIF mode) 1 x RCA coaxial S/PDIF
Digital Output Connectors
1 x 25-pin D-Sub AES/EBU 8 channels (supports AES Single-Wire 192 kHz) 1 x TOSLink ADAT optical (also functions in 2-channel optical S/PDIF mode) 1 x RCA coaxial S/PDIF
Other Connectors
2 x BNC Wordclock I/O 2 x BNC Loop Sync I/O 2 x DigiLink Mini Ports 1 x 9-pin Expansion Port
MIDI In/Out
No
Microphone Inputs
Frequency Response: 20 Hz to 20 kHz (+/-0.05 dB) Gain Range: 65 dB EIN: -128 dB THD+N: -107 dB (0.00045%) CMRR: -93 dB
Line Inputs
Frequency Response: 20 Hz to 20 kHz (+/-0.03 dB) Dynamic Range: 118 dB (A-weighted) THD+N: -111 dB (0.00028%)
Line Outputs
Frequency Response: 20 Hz to 20 kHz (+/-0.03 dB) Dynamic Range: 120 dB (A-weighted) THD+N: -108 dB (0.00039%) Line Output Level /Trim: +10 dBu or +24 dBu/-40 dB to + (0.1 dB steps)
Headphone Outputs
Frequency Response: 20 Hz to 20 kHz(+/-0.03 dB) Dynamic Range: 118 dB (A-weighted) THD+N: -107 dB (0.00045%)
Power Requirements
100/240V, 50/60 Hz, internal power supply
Minimum System Requirements
Mac Thunderbolt equipped computer Intel Core 2 Duo 2.33 GHz processor or faster Mac OS X Lion 32- or 64-bit 4 GB RAM (8 GB or more recommended) NVIDIA Quadro FX family (FX 560 or higher recommended) graphics card Minimum 80 GB 7200 RPM hard disk internal hard drive One or more hard disk drives dedicated for audio record and playback USB port for iLok authorization
PC Thunderbolt equipped computer Intel Core 2 Duo 2.33 GHz processor or faster Windows 7 Professional SP1 (64-bit) 4 GB RAM (8 GB or more recommended) NVIDIA Quadro FX family (FX 560 or higher recommended) graphics card Minimum 80 GB 7200 RPM hard disk internal hard drive One or more hard disk drives dedicated for audio record and playback USB port for iLok authorization
Dimensions (WxDxH)
1U rack-mountable chassis
Weight
16 lb (7.26 kg)
Specialties
Curv and Soft Clip processing
14 input channels to 2 multi-channel monitoring paths, each with its own fold-down configuration
