User manual for the Avid Pro Tools HD Native Thunderbolt Interface and 9935-65310-00
The user manual for the Avid Pro Tools HD Native Thunderbolt Interface and 9935-65310-00 provides
necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

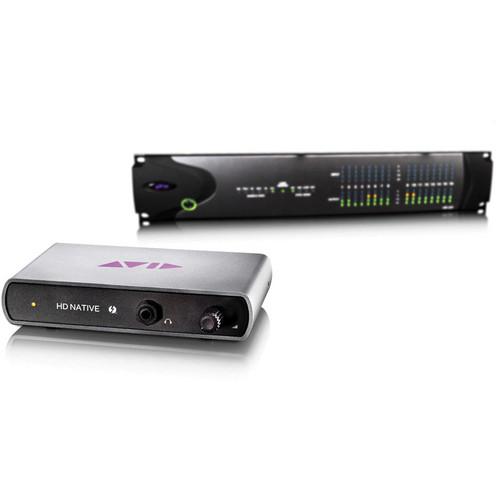

The Pro Tools HD Native Thunderbolt Interface and 16x16 Analog Audio Interface Bundle from Avid is a music and post-production core system that allows the professional to create complex, high-quality audio productions, using the full capabilities of Pro Tools HD software in a lower-cost, native solution.
Pro Tools HD and HDX systems deliver both card based and computer based DSP but with an incremental increase in cost. With the Pro Tools HD Native system, a single PCI card handles the mixing and routing duties, with the rest of the DSP processing handled by the computer. Now Avid has taken the card and housed it in a Thunderbolt equipped chassis for enhanced portability when paired with a Thunderbolt equipped laptop computer.
Pro Tools software has been the industry-standard digital audio production platform for years. Pro Tools HD 10 software tightly integrates the HD Native hardware and computer together as one, delivering performance and reliability, even with large mixes. It includes all the tools, advanced workflows, virtual instruments, and plug-ins needed to compose, record, edit, and mix music and/or sound for picture.
The 2U rack-mountable HD I/O 16x16 Analog interface provides sixteen ultra low latency analog inputs and analog outputs utilizing state-of-the-art analog-to-digital and digital-to-analog conversion. Two channels of digital I/O in AES, coaxial and optical S/PDIF formats is also available, along with ADAT I/O, Wordclock and Sync I/O. Together, the Native Thunderbolt Interface and audio interface provide all the benefits of the company's HD and HDX systems, without the upfront cost and the need for multiple PCI slot computers.
If you own a Avid audio interfaces & systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Avid Pro Tools HD Native Thunderbolt Interface and 9935-65310-00 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Avid Pro Tools HD Native Thunderbolt Interface and 9935-65310-00:
Specifications
Converters
24-bit
Sample Rates
44.1, 48, 88.2, 96, 176.4 and 192kHz
Analog In
4 x 25-pin D-Sub (16 inputs)
Analog Outputs
2 x 25-pin D-Sub (16 outputs)
Digital Input Connectors
1 x XLR AES/EBU (supports AES Single-Wire 192 kHz) 1 x Lightpipe ADAT optical (also functions in 2-channel optical S/PDIF mode) 1 x RCA coaxial S/PDIF
Digital Output Connectors
1 x XLR AES/EBU (supports AES Single-Wire 192 kHz) 1 x Lightpipe ADAT optical (also functions in 2-channel optical S/PDIF mode) 1 x RCA coaxial S/PDIF
Other Connectors
2 x BNC Wordclock I/O 2 x BNC Loop Sync I/O 2 x DigiLink Mini Ports 1 x 9-pin Expansion Port
MIDI In/Out
No
Headphone Output
No
THD + N
ADC: -114dB (0.0002%) DAC: -110dB (0.00032%)
Dynamic Range
ADC: -122dB DAC: -125dB
Frequency Response
ADC: 20Hz to 20kHz, +/-0.03dB DAC: 20Hz to 20kHz, +/-0.15dB
Power Requirements
100/240V, 50/60Hz, internal power supply
Minimum System Requirements
Mac Thunderbolt equipped computer Intel Core 2 Duo 2.33 GHz processor or faster Mac OS X Lion 32- or 64-bit 4 GB RAM (8 GB or more recommended) NVIDIA Quadro FX family (FX 560 or higher recommended) graphics card Minimum 80 GB 7200 RPM hard disk internal hard drive One or more hard disk drives dedicated for audio record and playback USB port for iLok authorization
PC Thunderbolt equipped computer Intel Core 2 Duo 2.33 GHz processor or faster Windows 7 Professional SP1 (64-bit) 4 GB RAM (8 GB or more recommended) NVIDIA Quadro FX family (FX 560 or higher recommended) graphics card Minimum 80 GB 7200 RPM hard disk internal hard drive One or more hard disk drives dedicated for audio record and playback USB port for iLok authorization
Dimensions (WxDxH)
2U rack-mountable chassis
Weight
25 lb (11.34 kg)
Specialties
Curv and Soft Clip processing Card swap only - no further expansion available
