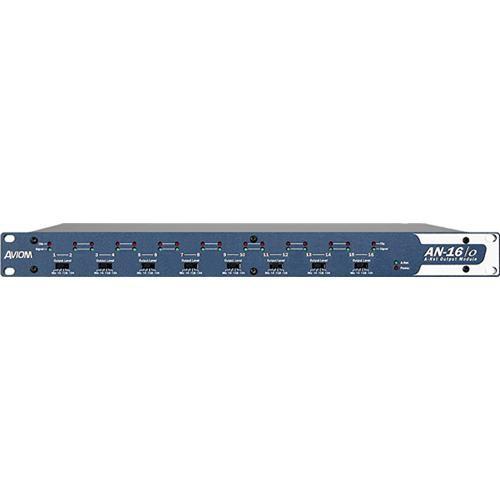

The Aviom AN-16/o V.4 16-Channel Analog Output Module adds an additional 16 output connectors to the Aviom Pro16 series digital network snake systems. This flexible, digital output module features 16 outputs on balanced DB25-pin connectors and switchable output level controls with +24dBu, +18dBu, +4dBu, and mic level switched on each channel.
If you own a Aviom networked audio systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Aviom AN-16/o V.4 16-Channel Analog Output Module AN-16/O V.4 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Aviom AN-16/o V.4 16-Channel Analog Output Module AN-16/O V.4:
ADC 24-Bit
DAC 24-Bit
Sample Rates 1x: 39.7-52kHz
2x: 79.4-104kHz
4x: 158.8-208kHz
Analog Outputs DB25 multipin connectors (2); Tascam analog audio pinout
Digital Inputs Aviom A-Net
Digital Outputs Aviom A-Net
Other Connectors RS232 Remote
MIDI IN and Out
Maximum Output Level Variable: +24dBu, +18dBu, +4dBu, and Mic
Frequency Response 3dB: 2Hz and 23kHz
+/- 0.5dB: 10Hz-22kHz (at 1x sample rate)
THD + N < .002% at -10dBFS
Dimensions 19 x 5.7 x 1" (482.6 x 146 x 25.4mm)
Weight 6.8lb (3.8 kg)
