User manual for the Aviom F6 Modular I/O Frame F6

The user manual for the Aviom F6 Modular I/O Frame F6 provides necessary instructions for the proper use of the product Pro Audio - General Accessories - Audio Patchbays.

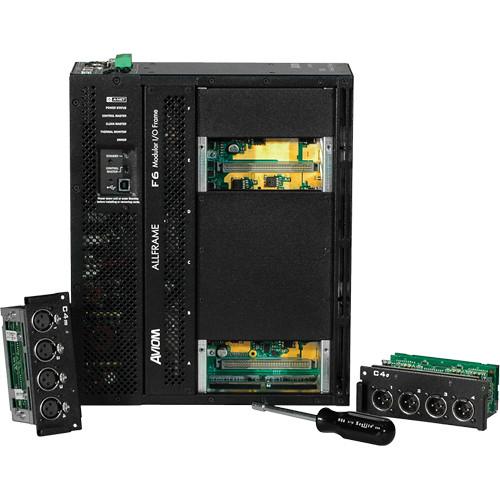

The F6 Modular I/O Frame from Aviom holds up to six AllFrame Multi-Modular I/O System audio I/O cards and can be reconfigured by the user by changing cards as needed.
If you own a Aviom audio patchbays and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Aviom F6 Modular I/O Frame F6 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Aviom F6 Modular I/O Frame F6:
Channels Up to 24 inputs
Up to 24 outputs
Card Slots 6; User configurable
A-Net Input/Output 2 x EtherCon RJ45 connectors
2 x 100 Mb/s Ethernet SFP fiber optic transceiver slots

SFP transceivers sold separately

I/O Ports 2 copper Cat-5e and 2 fiber; 4 total
SFP 100 Mb/s Fast Ethernet; Class 1 laser device
SFP: use duplex LC connector
Supports Single-mode or Multi-mode fiber

SFP fiber transceivers are not included and must be purchased separately.

Cable Length 400' (120 m) Cat-5e between devices; Cat-6 cabling is suggested for best performance at long distances. Fiber optic distance performance varies according to the type of SFP transceivers used (single/multi) and the transceiver's light-handling specifications.
Sample Rates 1x: 39.7 to 52 kHz; 2x: 79.4 to 104 kHz; 24-bit resolution
Routing Via computer using Pro64 Network Manager software;
Mic preamp remote control from RCI/MCS or Yamaha devices using m-control
Computer Interface 1 x USB; Type B connector
Latency Analog input to analog output: <800 µs
Ambient Operating Temperature 32 to 122°F (0 to 50°C)
Cooling 3 ultra-quiet low-velocity fans; Thermal monitor circuitry provides warnings for fan failure or excessive temperature.
Voltage 22 to 60 VDC, inclusive of tolerance
Maximum Current 1.08 A @ 60 V
1.16 A @ 56 V
1.35 A @ 48 V
1.41 A @ 44 V
2.70 A @ 24 V
2.95 A @ 22 V
Power Requirements Requires a Phihong POE80U-560G; a UL60950-1 Certified/Listed ITE power supply having a SELV (Safety Extra Low Voltage) rated output voltage. Power Over A-Net (PoA) connects to A-Net port B only.
DC Power Requirements Requires a UL60950-1 Certified/Listed ITE power supply having a SELV (Safety Extra Low Voltage) rated output voltage between 30 and 60 VDC. To guarantee proper startup, this supply should be rated for at least 100 W.
DC Power Input DC Power, Euroblock: 2-pin Euroblock, 5 mm
Pin 1: (+) 30 to 60 VDC; Pin 2 (-) Ground

DC Power, XLR: 4-pin XLR
Pin 1: Ground; Pin 2/3: no connect; Pin 4: 30 to 60 VDC
Capable of sourcing 5 A of in-rush current for 5 ms (0.1 ms rise time)
Standby Mode 2-pin Euroblock, 5 mm
Pin 3: (+) ; Pin 4 (-) Ground
LED 2-pin Euroblock, 5 mm
Pin 5: (+) ; Pin 6 (-) Ground
Screw Type Type: Phillips Hex Washer Head
Size: 4-40
Length: 1/4"
Use a #1 Phillips screwdriver or 3/16-inch hex nut driver.
Dimensions 10.50 x 12.60 x 3.85" (269.24 x 320.04 x 97.79 mm)
Minimum Backing Box Dimensions: 12 x 14 x 4" (304.8 x 355.6 x 101.6 mm)
Rack Mount Requires 6U space when using optional RK6 Rack Mount Kit.
Weight 14 lb (6.35 kg)
The user manual for the Aviom F6 Modular I/O Frame F6 can be downloaded in .pdf format if it did not come with your new audio patchbays, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Aviom users keep a unique electronic library for Aviom audio patchbayss, where you can use our link to download the user manual for the Aviom F6 Modular I/O Frame F6.

The user manual lists all of the functions of the Aviom F6 Modular I/O Frame F6, all the basic and advanced features and tells you how to use the audio patchbays. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Aviom service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Aviom F6 Modular I/O Frame F6. User manuals are also available on the Aviom website under Pro Audio - General Accessories - Audio Patchbays.
