User manual for the Axis Communications 5023-121 High Power over Ethernet 5023-121

The user manual for the Axis Communications 5023-121 High Power over Ethernet 5023-121 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired Networking - Power over Ethernet (PoE).

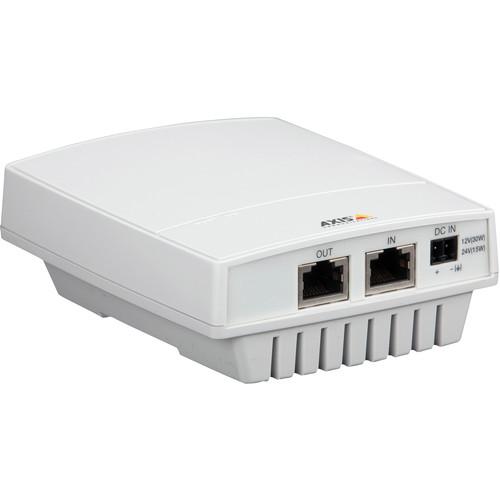

The Axis Communications 5023-121 High Power over Ethernet Midspan offers an easy, fast, and cost-effective solution for powering network video products, specifically PTZ (pan/tilt/zoom) dome and fixed outdoor network cameras without the need to install power outlets and electrical cabling.

Axis High Power over Ethernet (High PoE) Midspan enables the Axis network video products to receive data and power over the same Ethernet cable. This product makes it easier to install network video products in areas where power cabling and outlets are unavailable. Thus, installation costs are reduced.
If you own a Axis Communications power over ethernet (poe) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Axis Communications 5023-121 High Power over Ethernet 5023-121 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Axis Communications 5023-121 High Power over Ethernet 5023-121:
Function Data and power are fed to a network video product through an Ethernet cable; use together with a high PoE splitter for a network video product without built-in PoE support
Data Rate 10/100/1000 Mbps
Connectors Shielded RJ-45, EIA 568A and 568B
Network Cables Shielded category 5 (or higher)
Wiring Data provided over pairs 1/2 and 3/6 for 10/100 Ethernet, over all 4 pairs for Gigabit Ethernet power over spare pairs 4/5 (+) and 7/8 (-)
Output Power 51 VDC at: 12 VDC IN (maximum 30 W) 24 VDC IN (maximum 15 W)
Input Power 12/24 VDC (maximum 38/20 W)
Installation & Management Plug-and-play installation; automatically detects PoE and high PoE-enabled devices and supplies inline power Local LED management display
Display & Indicators Port interfaces are located on the front panel Power indicator: DC power Network indicator: Port
Compliance IEEE 802.3af compliant (maximum 15 W) at 12/24 VDC input, IEEE 802.3at compliant (maximum 30 W) at 12 VDC input
Mounting Wall or shelf mounting
Approvals FCC Part 15, Class B with FTP cabling
EN 55022 Class B (Emissions), EN 55024 (Immunity), VCCI, EN 60950-1, ICES-003, C-TICK
Operating Conditions Humidity maximum 95% RH (non-condensing) -4 to 149°F (-20 to 65°C)
Storage -40 to 165°F (-40 to 74°C)
Board Dimensions (H x W x D) 4.6 x 3.7 x 1.6" (117 x 95 x 41 mm)
Weight 0.4 lb (0.18 kg)
Packaging Info
Package Weight 0.6 lb
Box Dimensions (LxWxH) 6.5 x 4.3 x 2.0"
The user manual for the Axis Communications 5023-121 High Power over Ethernet 5023-121 can be downloaded in .pdf format if it did not come with your new power over ethernet (poe), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Axis Communications users keep a unique electronic library for Axis Communications power over ethernet (poe)s, where you can use our link to download the user manual for the Axis Communications 5023-121 High Power over Ethernet 5023-121.

The user manual lists all of the functions of the Axis Communications 5023-121 High Power over Ethernet 5023-121, all the basic and advanced features and tells you how to use the power over ethernet (poe). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Axis Communications service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Axis Communications 5023-121 High Power over Ethernet 5023-121. User manuals are also available on the Axis Communications website under Surveillance - Surveillance Video - Wired Networking - Power over Ethernet (PoE).
