User manual for the Axis Communications AXIS M1054 Network Camera 0338-004
The user manual for the Axis Communications AXIS M1054 Network Camera 0338-004 provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

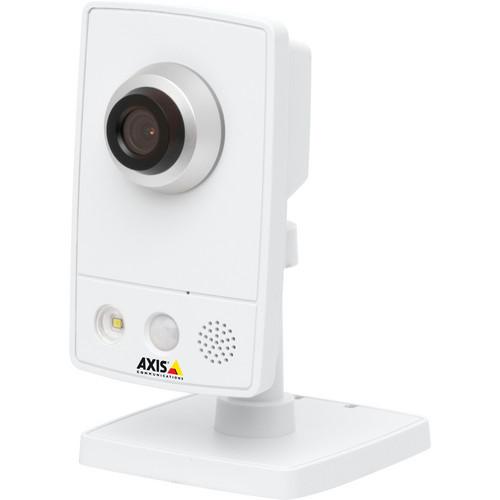

The Axis Communications AXIS M1054 Network Camera delivers advanced network functionality while retaining a stylish and discreet appearance. Utilizing a 1/4" CMOS with over 1 million pixels, this camera generates quality video images with a high degree of sharpness and color fidelity. Progressive scan technology ensures smooth image capture of fast moving objects. Video can be streamed simultaneously in the H.264 and MJPEG compression formats, allowing efficient data management according to available storage and network resources.
This camera features a built-in PIR function which can detect movement even in the dark. There's also an integrated white LED light for illuminating dimly lit surveillance scenes. A built-in microphone and speaker allow remote audio monitoring as well as 2-way voice communication over the network. Alarm I/O ports allow the use of external triggering devices.
This camera, with its small and stylish design, is well suited for use in small businesses, boutiques, restaurants, hotels, or residences. PoE technology will allow the camera to be powered via its Ethernet cable, making it easy to install the camera in areas with no close proximity to an AC outlet.
|
If you own a Axis Communications wired ip cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Axis Communications AXIS M1054 Network Camera 0338-004 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Axis Communications AXIS M1054 Network Camera 0338-004:
| Image Sensor | 1/4" color progressive scan RGB CMOS | | Resolution | 1280 x 800 | | Lens | Focal Length: 2.9mm, F2.0
Focus: Fixed
AOV: 84° (horizontal) | | Iris Operation | Fixed | | Minimum Illumination | 0 lux LED on | | IR Illumination | Built-in white illumination LED (1W) | | Analog Video Output | None | | Built-In Microphone | Built-in microphone and speaker | | Controls | Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, rotation
Text and image overlay, privacy mask
Mirroring
1/24500 s to 1/6 s shutter time | | Motion Detection | Video motion detection, active tampering alarm, audio detection
Alarm events: Activation of illumination LED, audio clip playback, external output activation
Passive infrared (PIR) motion sensor with configurable sensitivity. Max range: 6 m | | Alarm I/O | 1 in, 1 out | | Compression Format | H.264 (MPEG-4 Part 10/AVC), Motion JPEG | | Picture Size | 1280 x 800 to 160 x 90 | | Video Streaming | Multiple, individually configurable streams in H.264 and Motion JPEG | | Frame Rate | 30 FPS in all resolutions | | Supported Protocols | IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS | | Card Slot | None | | Network Interface | RJ-45 10BASE-T/100BASE-TX | | Power Requirements | 4.9-5.1VDC (includes AC adapter)
Power over Ethernet IEEE 802.3af Class 2 (max. 6.49W) | | Operating Temperature | 32 - 113°F (0 - 40°C) | | Dimensions (WxHxD) | (without stand)
2.3 x 3.7 x 1.6" (59 x 95 x 41mm) | | Weight | 0.4 lbs (160g) | | Package Weight | 1.37 lb | | Box Dimensions (LxWxH) | 7.1 x 6.9 x 4.0" | |
The user manual for the Axis Communications AXIS M1054 Network Camera 0338-004 can be downloaded in .pdf
format if it did not come with your new wired ip cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Axis Communications users keep a unique electronic library
for Axis Communications wired ip camerass,
where you can use our link to download the user manual for the Axis Communications AXIS M1054 Network Camera 0338-004.
The user manual lists all of the functions of the Axis Communications AXIS M1054 Network Camera 0338-004,
all the basic and advanced features and tells you how to use the wired ip cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Axis Communications service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Axis Communications AXIS M1054 Network Camera 0338-004. User manuals are also
available on the Axis Communications website under Surveillance - Surveillance Video - Wired IP Cameras.
