User manual for the Axis Communications AXIS P3364-LVE 1 Mp Outdoor Day 0473-001

The user manual for the Axis Communications AXIS P3364-LVE 1 Mp Outdoor Day 0473-001 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

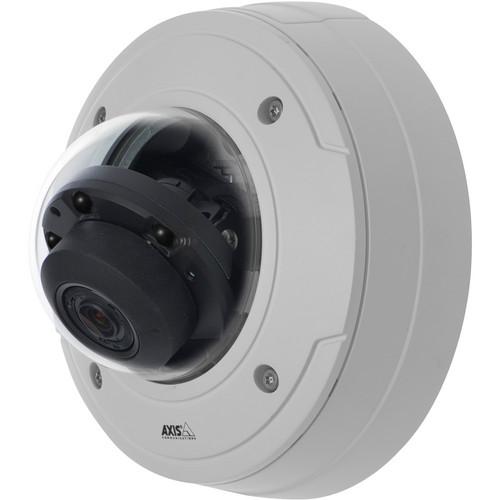

The AXIS Communications AXIS P3364-LVE 1 Mp Outdoor Day & Night IP Dome Camera with 12mm Lens is an outdoor-ready fixed dome network camera that is suitable for unobtrusive day and night video surveillance in exposed areas such as city surveillance, airports, railway stations, retail stores, office buildings, museums, schools, and university campuses. The AXIS P3364-LVE camera records videos in HDTV 720p or 1 Mp and provides multiple, individually configurable H.264 and Motion JPEG video streams. It supports the Lightfinder technology, which makes this camera sensitive to low light. It also supports P-Iris control for optimal image clarity.

The AXIS P3364-LVE Day & Night Camera incorporates long-life LED technology for power efficiency. Adjustable in angle and intensity, the built-in IR solution offers easy configuration optimizing for the scene. This camera features remote focus capability that eliminates hands-on focusing at the camera, and remote zoom that allows the camera's angle of view to be optimized. It offers digital PTZ (Pan / Tilt / Zoom) and has low, environment-friendly power consumption supplied by standard Power over Ethernet (IEEE 802.3af) class 3.
If you own a Axis Communications wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Axis Communications AXIS P3364-LVE 1 Mp Outdoor Day 0473-001 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Axis Communications AXIS P3364-LVE 1 Mp Outdoor Day 0473-001Download user manual for Axis Communications AXIS P3364-LVE 1 Mp Outdoor Day 0473-001
(PDF file, 3.09 MB)
Additional parameters of the Axis Communications AXIS P3364-LVE 1 Mp Outdoor Day 0473-001:
Specifications
Camera
Image Sensor Device 1/3" Progressive Scan RGB CMOS
Day/Night Automatically removable IR cut filter
Minimum Illumination At f/1.4
Color: 0.18 lux
B&W: 0.04 lux, 0 lux with IR illumination on
Shutter time Power line frequency
50 Hz: 1/24,500 to 2 sec
60 Hz: 1/29,500 to 2 sec
Lens
Type Varifocal, remote focus and zoom, P-Iris control, IR-corrected, megapixel resolution
Focal Length 3.3 to 12 mm
Angle of View 82 to 24°, f/1.4
Video
Video Compression H.264 (MPEG-4 Part 10/AVC)
H.264 Baseline and Main Profile
Motion JPEG
Resolution 1280 x 960 (approximately 1.3 Mp) to 160 x 90
Frame Rate H.264 and Motion JPEG:
Power Line Frequency
30 fps in 60 Hz
25 fps in 50 Hz
PTZ Mode Digital PTZ, preset positions, guard tour
Audio
Audio Streaming 2-way
Audio Compression AAC LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz
Configurable bit rate
Network
Security Password protection, IP address filtering, HTTPS encryption,IEEE 802.1X network access control, digest authentication, user access log

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit.

Supported Protocols IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit.

System Integration
Data Streaming Event data
General
Casing Polycarbonate transparent cover
Aluminum inner camera module with encapsulated electronics
IK10 impact-resistant casing with aluminum base
Memory 256 MB RAM, 128 MB Flash
Power Power over Ethernet IEEE 802.3af Class 3
Power Consumption 12.1 W, maximum with IR illumination on
5.9 W, maximum with IR illumination off
Connectors RJ-45 10BASE-T / 100BASE-TX PoE
Terminal block for 1 alarm input and 1 output
3.5 mm mic / line in, 3.5 mm line out
IR Illumination Power-efficient, long-life IR LEDs with adjustable angle of illumination and intensity
Range of reach up to 100' (30 m) depending on scene
Edge Storage SD/SDHC memory card slot (card sold separately)
Support for recording to network share (network attached storage or file server)
Approvals EN 62471, EN 50121-4, EN 55022, EN 55024, EN 61000-6-1, EN 61000-6-2, IEC/EN/UL 60950-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC 60529 IP66, NEMA 250 Type 4X, IEC 62236-4, IEC 62262 IK10, FCC Part 15, Subpart B Class B, ICES-003 Class B digital, VCCI, ITE, C-tick AS/NZS CISPR 22, KCC AS/NZS CISPR 22, KN 22, KN 24
Operating Conditions Temperature: 32 to 122°F (0 to 50°C)
Humidity: 10 to 85% RH (non-condensing)
Dimensions Ø x W x D: 3.8 x 7.0 x 4.7" (96.0 x 178.0 x 119.0 mm)
Weight 3.1 lb (1.4 kg)
Packaging Info
Package Weight 5.4 lb
Box Dimensions (LxWxH) 16.0 x 12.0 x 6.5"
Product Demo 1
Product Demo 2
Product Demo 3
