User manual Axis Communications AXIS P7701 Video Decoder 0319-004

Operating instructions and pdf manual for use - Axis Communications AXIS P7701 Video Decoder 0319-004 User manual, User manual Axis Communications AXIS P7701 Video Decoder 0319-004, Axis, Communications, AXIS, P7701, Video, Decoder, 0319-004,


User manual for Axis Communications AXIS P7701 Video Decoder 0319-004

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

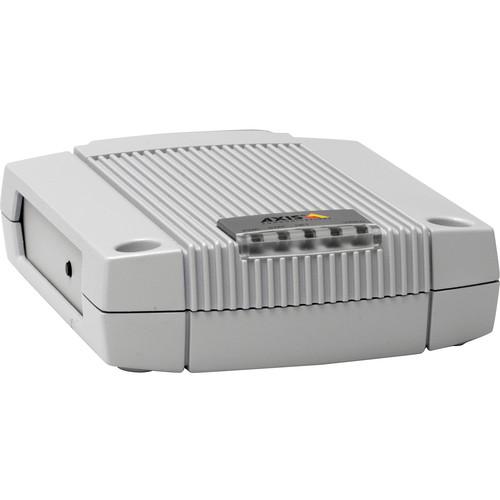

Axis Communications AXIS P7701 Video Decoder 0319-004
  • Manufacturer: Axis Communications
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders
  • Safety instructions
  • Startup and operation of the video encoders & decoders
  • Tips for setting up your Axis Communications
  • Settings and expert assistance
  • Contact Axis Communications service
  • Troubleshooting
  • Warranty information
  • Price: 436 USD
We recommend checking out our discussion threads on the Axis Communications AXIS P7701 Video Decoder 0319-004, which address similar problems with connecting and setting up Video Encoders & Decoders Axis Communications.



User manual for the Axis Communications AXIS P7701 Video Decoder 0319-004

The user manual for the Axis Communications AXIS P7701 Video Decoder 0319-004 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders.

The Axis Communications AXIS P7701 Video Decoder allows live video feeds received from Axis branded IP cameras over a network to be displayed on a conventional analog or digital monitor, this unit is not compatible with non Axis IP cameras. In addition to decoding video, this unit will decode high quality audio for playback on analog equipment.

This decoder uses H.264 to maintain a high degree of image quality while maximizing network resources. For added versatility, MPEG-4 and MJPEG compression are also supported.

Video is decoded at full frame rates and up to D1 resolution for H.264 and MPEG-4, and up to 720p (1280 x 720) resolution for MJPEG. This decoder also has the ability to scale the resolution to a maximum of 1280 x 720 pixels when using an LCD monitor.

This decoder can be programmed to display an unlimited number of video feeds in a timed sequence. By eliminating the need for a local PC at the monitoring site, this decoder offers a cost effective option in situations where the primary need is to display live video such as for public viewing at store entrances. Another money saving feature of this decoder is PoE, which will allow power to be routed over the camera's network cable.
If you own a Axis Communications video encoders & decoders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Axis Communications AXIS P7701 Video Decoder 0319-004 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Axis Communications AXIS P7701 Video Decoder 0319-004Download user manual for Axis Communications AXIS P7701 Video Decoder 0319-004
(PDF file, 1.18 MB)
Additional parameters of the Axis Communications AXIS P7701 Video Decoder 0319-004:
Compression Format H.264 (MPEG-4 Part 10/AVC)
MPEG-4 Part 2
Motion JPEG
Resolution H.264 and MPEG-4 Part 2: All resolutions up to D1 (720 x 480 NTSC, 720 x 576 PAL)

Motion JPEG: All resolutions up to 720p (1280 x 720)
Frame Rate 30/25 (NTSC/PAL) fps in up to D1 resolution for all compression standards. Up to 15 fps in 720p resolution in Motion JPEG
Video Streaming One stream
Supported Protocols IPv4/v6, HTTP, HTTPS, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SSL/TLS
Video Output RCA x1
DVI-I (analog/digital) x1
Audio Output 3.5 mm audio line output, mono
PTZ Control Via RS-485
Alarm VAPIX alarm API
Card Slot None
Network Interface RJ-45 10BASE-T/100BASE-TX PoE
Control Connector RS-485/ RS-422 terminal block
Power Requirements 8-20VDC (includes power adapter)
Power Consumption 8.3W
Operating Temperature 32 - 122°F (0 - 50°C)
Dimensions (WxHxD) Not specified
Weight 0.7 lbs (318g)
Packaging Info
Package Weight 1.81 lb
Box Dimensions (LxWxH) 9.8 x 7.4 x 4.1"
The user manual for the Axis Communications AXIS P7701 Video Decoder 0319-004 can be downloaded in .pdf format if it did not come with your new video encoders & decoders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Axis Communications users keep a unique electronic library for Axis Communications video encoders & decoderss, where you can use our link to download the user manual for the Axis Communications AXIS P7701 Video Decoder 0319-004.

The user manual lists all of the functions of the Axis Communications AXIS P7701 Video Decoder 0319-004, all the basic and advanced features and tells you how to use the video encoders & decoders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Axis Communications service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Axis Communications AXIS P7701 Video Decoder 0319-004. User manuals are also available on the Axis Communications website under Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders.
