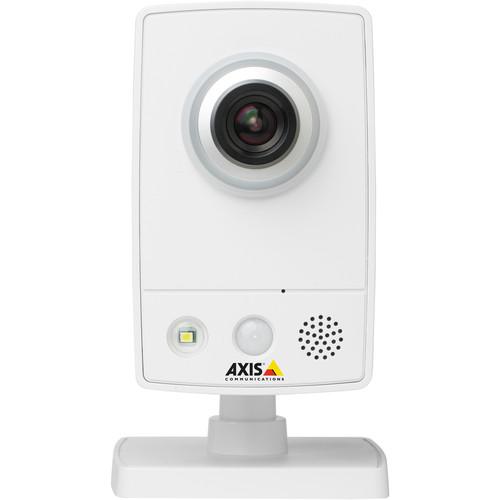

User manual for Axis Communications M1034-W Wireless Network Camera 0522-004
Overall Rating: 3.5
70% of respondents would recommend this to a friend.
- Manufacturer: Axis Communications
- Basic description and contents of package
- Product classification: Surveillance - Surveillance Video - Wireless Cameras
- Safety instructions
- Startup and operation of the wireless cameras
- Tips for setting up your Axis Communications
- Settings and expert assistance
- Contact Axis Communications service
- Warranty information
- Price: 239 USD
Click to enlarge image
We recommend checking out our discussion threads on the Axis Communications M1034-W Wireless Network Camera 0522-004,
which address similar problems with connecting and setting up Wireless Cameras Axis Communications.
User manual for the Axis Communications M1034-W Wireless Network Camera 0522-004
The user manual for the Axis Communications M1034-W Wireless Network Camera 0522-004 provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wireless Cameras.
Through either Wi-Fi or wired Ethernet connection individuals can quickly and easily setup a security system by picking up the M1034-W Wireless Network Camera from Axis Communications. Equipped with a 1MP progressive scan RGB CMOS sensor, the M1034-W can capture color video at up to HD 1280 x 800 resolution at 30 fps. It also features a 2.8mm f/2 lens with a wide 80° viewing angle that allows you to capture a large area. The H.264 and MJPEG compression will reduce bandwidth and storage requirements and the camera can have multiple individually-configured streams going simultaneously.
For added functionality, the camera has two-way audio support so you can hear and talk to individuals in range of the camera and it has a passive IR sensor with a 20' range to detect motion. There is also a white LED for low-light illumination and the camera has support for NAS systems for storage. Users can program alerts and alarms based on numerous features of this camera and optional management software.
If you own a Axis Communications wireless cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Axis Communications M1034-W Wireless Network Camera 0522-004 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Axis Communications M1034-W Wireless Network Camera 0522-004:
| Image Sensor || 1/4" progressive scan RGB CMOS |
| Lens || 2.8 mm: 80° horizontal angle of view, f/2.0, fixed iris, adjustable focus |
| Light Sensitivity || 1.2-100000 lux, f/2.0 |
0 lux with illumination LED
| Shutter Time || 1/8000 to 1/6 sec |
| Pan/Tilt/Zoom || Digital |
| Video Compression || H.264 Main Profile (MPEG-4 Part 10/AVC), MJPEG |
| Resolutions || 1280 x 800 to 320 x 240 |
| Frame Rate || H.264: 30 fps |
MJPEG: 30 fps
| Video Streaming || Multiple, individually configurable streams in H.264 and MJPEG |
| Image Settings || Mirroring, Axis' Corridor Format |
| Audio Streaming || Two-way |
| Audio Compression || AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz Configurable bit rate |
| Audio In/Out || Built-in microphone (can be disabled) and speaker |
| Wireless Interface || Internal antenna |
IEEE 802.11 b/g/n Wi-Fi
| Security || Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log |
WEP 64/128 bit, WPA/WPA2-PSK, WPA, WPA2 Enterprise
| Supported Protocols || IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, CIFS/SMB (not supported in AXIS M1011/M1011-W/M1031-W), SMTP, Bonjour, UPnP™, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS |
| Application Programming Interface || Open API for software integration, ONVIF compliant |
Support for AXIS Video Hosting System (AVHS)
| Intelligent Video || Video motion detection, active tampering alarm, Audio detection |
| Event Trigger || Intelligent video, External input, built-in PIR |
| Event Action || File Upload: FTP, HTTP, network share and email |
Notification: Email, HTTP and TCP
Pre- and post-alarm video buffering
Activation of illumination LED
Audio clip playback
External output activation
Video and audio recording to edge storage
| Streaming || Event data |
| Built-in || Installation Aids: Pixel counter |
| Casing || Polycarbonate |
| Memory || 256 MB RAM, 128 MB Flash |
| Power || 4.9 to 5.1 VDC, maximum 2.2 W |
| Connectors || 1 x DC power jack |
1 x RJ-45 10BASE-T/100BASE-TX
1 x Alarm input
1 x Alarm output
| Edge Storage || Support for recording to network share (Network Attached Storage or file server) |
| PIR Sensor || Passive infrared (PIR) motion sensor with configurable sensitivity |
Range: 19.6' / 6 m
| Illumination LED || White Illumination LED: 1 W, Class 1M |
| Operating Conditions || Temperature: 32 to 104˚F / 0 to 40˚C |
Humidity: 20 to 80%, relative non-condensing
| Approvals || EN 301489-1, EN 301489-17, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 55024, EN 62311:2008, EN 300 328, FCC Part 15 Subpart B and C Class B, VCCI Class B, C-tick AS/NZS CISPR 22, ICES-003 Class B, KCC Class B, IEC/EN 60950-1, SRRC, ANATEL, TELEC, RSS-210, AS/NZS 4771, EN/IEC 62741 (risk group 1) |
Power Supply: EN 60950-1, cCSAus
| Dimensions || Not specified by manufacturer |
| Weight || 4.16 oz / 118 g |
| Package Weight || 1.06 lb |
| Box Dimensions (LxWxH) || 7.1 x 6.9 x 3.9" |
