User manual Axis Communications M1144-L 1 MP High-Definition 0436-001

Operating instructions and pdf manual for use - Axis Communications M1144-L 1 MP High-Definition 0436-001 User manual, User manual Axis Communications M1144-L 1 MP High-Definition 0436-001, Axis, Communications, M1144-L, 1, MP, High-Definition, 043


User manual for Axis Communications M1144-L 1 MP High-Definition 0436-001

Axis Communications M1144-L 1 MP High-Definition 0436-001
  • Manufacturer: Axis Communications
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your Axis Communications
  • Settings and expert assistance
  • Contact Axis Communications service
  • Troubleshooting
  • Warranty information
  • Price: 399 USD
We recommend checking out our discussion threads on the Axis Communications M1144-L 1 MP High-Definition 0436-001, which address similar problems with connecting and setting up Wired IP Cameras Axis Communications.



User manual for the Axis Communications M1144-L 1 MP High-Definition 0436-001

The user manual for the Axis Communications M1144-L 1 MP High-Definition 0436-001 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

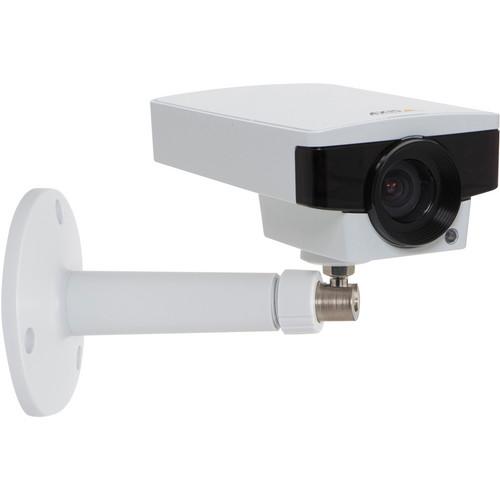

The Axis Communication M1144-L 1 MP High-Definition Network Camera is a small and compact professional surveillance device designed for day and night surveillance. This camera is ideal for use with small video surveillance systems used in boutiques, restaurants, hotels, and offices. The camera offers excellent image quality with progressive scan, providing crisp and clear images of moving objects. With its slim and compact design, the camera enables quick and easy installation, for any indoor applications where round-the-clock surveillance is required. Multiple H.264 streams, as well as Motion JPEG streams, can be provided at full frame rate, or each stream can be individually optimized for different quality requirements and bandwidth constraints.

The AXIS M1144-L Network Camera offers built-in IR-LED illumination for optimal day and night surveillance. The illumination can be adjusted to match a selected viewing angle and illuminates automatically in darkness, at an event or when requested. Power over Ethernet supplies power to the camera via the network, eliminating the need for power cables and reducing installation costs.
If you own a Axis Communications wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Axis Communications M1144-L 1 MP High-Definition 0436-001 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Axis Communications M1144-L 1 MP High-Definition 0436-001Download user manual for Axis Communications M1144-L 1 MP High-Definition 0436-001
(PDF file, 1.22 MB)
Additional parameters of the Axis Communications M1144-L 1 MP High-Definition 0436-001:
Image Sensor Progressive scan RGB CMOS 1/4"
Lens Varifocal 2.5-6 mm: 87 to 40° horizontal angle of view, F1.4
Minimum Illumination Color: 0,6 lux, F1.4, B/W: 0,08 lux, F1.4 0 lux with IR illumination ON
Shutter Time 1/8000 to 1/6 sec
Pan/Tilt/Zoom Digital PTZ
Video
Video Compression H.264 Main Profile (MPEG-4 Part 10 / AVC)Motion JPEG
Resolutions 1280 x 800 to 352 x 240
Frame Rate 30 fps in all resolutions
Frame Rate Motion JPEG 30 fps in all resolutions
Video Streaming Multiple, individually configurable streams in H.264 and Motion JPEG Controllable frame rate and bandwidth VBR/CBR H.264
Image Settings Compression, color, brightness, sharpness, contrast, white balance, exposure control
Rotation: 0°, 90°, 180°, 270°
Text and image overlay, privacy mask and mirroring of images Corridor Format
Network
Security Password protection, IP address filtering, HTTPS encryption, digest authentication, user access log
Supported Protocols IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
System Integration
Application Programming Interface Open API for software integration, including VAPIX from Axis Communications available at www.axis.com.
ONVIF specification available at www.onvif.orgSupport for AXIS Video Hosting System (AVHS) with One-Click Camera connection
Intelligent Video Video motion detection, active tampering alarm
Event Trigger Intelligent video, edge storage eventsExternal input
Event Action File upload: FTP, HTTP, network share and email; notification: email, HTTP and TCP; external output activation; video recording to edge storage; pre- and post-alarm video buffering
Data Streaming Event data
General
Casing Aluminum and PC/ABS
Memory 256 MB RAM, 128 MB Flash
Power Power over Ethernet IEEE 802.3af Class 2; max. 5.9 W PoE enabled switch or midspan required (not included)
Connectors RJ-45 10BASE-T/100BASE-TX1 alarm input and 1 output
IR Illumination Highly efficient IR LEDs with adjustable intensity and angle of illumination
Range up to 50' (15 m)
Edge Storage microSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included)
Support for recording to network share (network-attached storage or file server)
Operating Conditions 32 to 122°F (0 to 40°C)Humidity 20 - 80% RH (non-condensing)
Approvals EN 55022 Class B, EN 55024, EN 60950-1, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, FCC Part 15 Subpart B Class B, C-tick AS/NZS CISPR 22, ICES-003 Class B, VCCI Class B, KN22, KN24, IEC62471, EU-RoHS 2002/95/EC
Weight 8.81 oz (250 g)
Packaging Info
Package Weight 1.3 lb
Box Dimensions (LxWxH) 7.0 x 6.9 x 4.1"
The user manual for the Axis Communications M1144-L 1 MP High-Definition 0436-001 can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Axis Communications users keep a unique electronic library for Axis Communications wired ip camerass, where you can use our link to download the user manual for the Axis Communications M1144-L 1 MP High-Definition 0436-001.

The user manual lists all of the functions of the Axis Communications M1144-L 1 MP High-Definition 0436-001, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Axis Communications service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Axis Communications M1144-L 1 MP High-Definition 0436-001. User manuals are also available on the Axis Communications website under Surveillance - Surveillance Video - Wired IP Cameras.
