User manual for the Axis Communications M5014 PTZ Dome Network Camera 0399-001

The user manual for the Axis Communications M5014 PTZ Dome Network Camera 0399-001 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

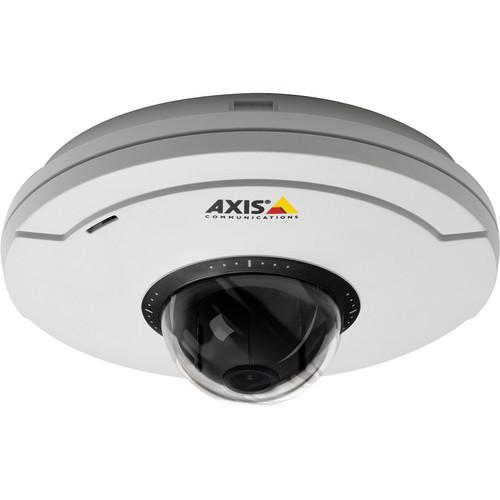

The Axis M5014 PTZ Dome Network Camera (Indoor) is designed for remote and discreet monitoring of indoor areas such as stores, banks, hotels, office lobbies, restaurants, and warehouses. This ceiling mount camera is equipped with a 3.6mm lens @ f/1.8 and a 1/4” progressive scan RGB CMOS imager.

Offering resolutions up to HDTV 720p (1280 x 720), the camera supports multiple individually configurable streams in H.264 and MJPEG. H.264 reduces the dependency on bandwidth and storage use without compromising image quality. A built-in microphone enables users to listen in remotely and audio to be recorded while the audio detection allows unusual sounds or noise to be detected during off-hours to trigger alarm events.

PoE (Power over Ethernet) supplies power to the camera from the network itself without any extra wiring for auxiliary power outlets. With IP51-rated plastic casing, the camera is dustproof and protected from dripping water, making it functional even during the operation of a sprinkler system.
If you own a Axis Communications wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Axis Communications M5014 PTZ Dome Network Camera 0399-001 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Axis Communications M5014 PTZ Dome Network Camera 0399-001Download user manual for Axis Communications M5014 PTZ Dome Network Camera 0399-001
(PDF file, 2.02 MB)
Additional parameters of the Axis Communications M5014 PTZ Dome Network Camera 0399-001:
Camera
Image Sensor 1/4" progressive scan RGB CMOS VGA
Lens 3.6 mm, F1.8
Horizontal angle of view: 60°
Minimum Illumination 1.4 lux, F1.8
Shutter Time 1/25000 s to 1/6 s
Pan/Tilt/Zoom 25 preset positions
Pan: ±180°, 100°/s
Tilt: 90°, 100°/s
Zoom: 3x digital
Video
Video Compression H.264 (MPEG-4 Part 10 / AVC), Motion JPEG
Resolutions HDTV 720p 1280 x 720 to 320 x 180
Frame Rate 30 fps in all resolutions
Video Streaming Multiple, individually configurable streams in H.264 and Motion JPEG, Controllable frame rate and bandwidth, VBR/CBR H.264
Image Settings Manual shutter time, compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, rotation, backlight compensation, fine tuning of behavior at low light, text overlay
Audio
Audio Streaming One-way
Audio Compression AAC LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Configurable bit rate
Audio Input Built-in microphone
Network
Security Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1X network access control, digest authentication, user access log

*This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit.

Supported Protocols IPv4/v6, HTTP, HTTPS*, SSL/TLS*, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS

*This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit.

System Integration
Application Programming Interface Open API for software integration, including VAPIX and Axis Camera Application Platform; Axis Video Hosting System (AVHS) with One-Click Camera connection
Intelligent Video Video motion detection, audio detection, Axis Camera Application Platform enabling installation of additional applications
Alarm Triggers Video motion detection, audio detection, Axis Camera Application Platform, PTZ preset, memory card full
Alarm Events File upload via FTP, HTTP and email; Notification via email, HTTP, and TCP; pre- and post-alarm video buffering; PTZ preset; local storage
Installation Aids in Software Pixel counter
General
Casing IP51-rated plastic casing, clear dome
Processors/Memory ARTPEC-3, 256 MB RAM, 128 MB Flash
Power Power over Ethernet IEEE 802.3af Class 3
Connectors RJ-45 10BASE-T/100BASE-TX PoE
Local Storage MicroSDHC memory card slot (card not included)
Operating Conditions 32 to 113°F (0 to 45°C)
Humidity: 20 - 80% RH (non-condensing)
Approvals EN 55022 Class A, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC Part 15 Subpart B Class B, ICES-003 Class A, VCCI Class B, C-tick AS/NZS CISPR 22, KC Class A, EN 60950-1, IEC 60529 IP51
Dimensions (Diam. x H) 5.1 x 2.2" (130 x 56 mm)
Weight 0.7 lb (330 g)
Packaging Info
Package Weight 1.3 lb
Box Dimensions (LxWxH) 7.2 x 7.1 x 4.2"
The user manual for the Axis Communications M5014 PTZ Dome Network Camera 0399-001 can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Axis Communications users keep a unique electronic library for Axis Communications wired ip camerass, where you can use our link to download the user manual for the Axis Communications M5014 PTZ Dome Network Camera 0399-001.

The user manual lists all of the functions of the Axis Communications M5014 PTZ Dome Network Camera 0399-001, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Axis Communications service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Axis Communications M5014 PTZ Dome Network Camera 0399-001. User manuals are also available on the Axis Communications website under Surveillance - Surveillance Video - Wired IP Cameras.
