User manual for the Axis Communications P1204 Mini HDTV Pinhole Indoor 0531-001
The user manual for the Axis Communications P1204 Mini HDTV Pinhole Indoor 0531-001 provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

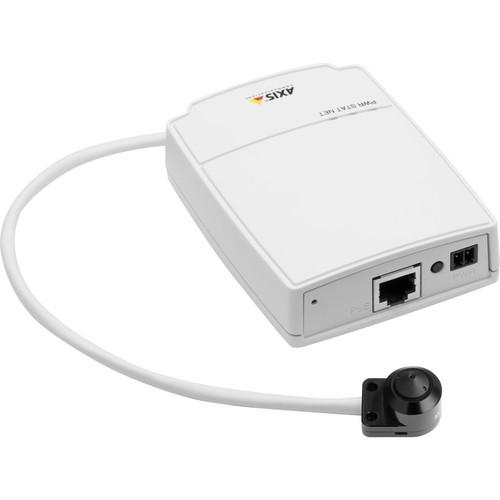

The Axis Communications P1204 Mini HDTV Pinhole Indoor Network Camera is a small-sized, high-performance device perfect for covert installations or where a discreet and compact surveillance solution is required.
This camera provides crystal-clear HDTV 720p image quality at full frame rate. It also delivers multiple, individually configurable video streams in H.264 compression, which optimizes bandwidth and storage needs without compromising image quality.
The form factor and small size offer excessive flexibility. The sensor unit and main unit are connected by a 26’ (8 m) cable, providing flexibility to place the sensor unit in one place and the main unit elsewhere.
This camera also offers powerful event management capabilities with intelligent video features such as tampering alarm and motion detection in addition to the AXIS Camera Application platform.
The camera can be powered either over Ethernet or by external power supply. Furthermore, the camera includes support for edge storage with the built-in microSD / microSDHC memory card slot.
The P1204 camera can be mounted flat or angled on any surface using the angled fastening bracket (included). The camera can also be mounted covertly behind a thin metal sheet in a doorway or an ATM.
If you own a Axis Communications wired ip cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Axis Communications P1204 Mini HDTV Pinhole Indoor 0531-001 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
H.264 & Motion JPEG: 25 fps with power line frequency 50 Hz 30 fps with power line frequency 60 Hz
Video Streaming
Multiple, individually configurable streams in H.264 and Motion JPEG Controllable frame rate and bandwidth VBR/CBR H.264
Image Settings
Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, rotation Text and image overlay, privacy mask and mirroring of images Axis' Corridor Format
Security
Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
Supported Protocols
Open API for software integration, including VAPIX and AXIS Camera Application Platform from Axis Communications ONVIF AXIS Video Hosting System (AVHS) with One-Click Camera Connection
Intelligent Video
Video motion detection, active tampering alarm AXIS Camera Application Platform enabling installation of additional applications
Event Trigger
Intelligent video, external inputs, video loss
Event Action
File upload: FTP, HTTP, network share and email Notification: email, HTTP and TCP External output: video recording to edge storage Pre- and post-alarm video buffering
Casing
Main Unit: Polycarbonate casing Sensor Unit: Aluminum casing
Memory
256 MB RAM, 128 MB Flash
Power
Power over Ethernet IEEE 802.3af Class 2 (maximum 6.49 W) 8 to 28 VDC maximum 4.7 W
Connectors
RJ-45 for 10BASE-T/100BASE-TX PoE RJ-12 for the sensor unit Terminal blocks for power, 1 alarm input and 1 output
Edge Storage
microSD / microSDHC memory card slot (card not included) Support for recording to network share (network-attached storage or file server)
Operating Conditions
-4 to 122 ºF (-20 to 50ºC) Humidity 10 to 85% RH (non-condensing)
Approvals
EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 55024, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22, KCC Class B, EN/IEC 60950-1, IEC 60068-2-6 (Vibration) class 4M4, IEC 60068-2-27 (shock) Class 4M3, IEC 60068-2-1. IEC 60068-2-2, 60068-2-78 Class 3K3
Dimensions
Main Unit: 4.1 x 3" (104 x 76 mm) Sensor Unit: 0.8 x 0.4" (21.5 x 11 mm)
Weight
Main Unit: 0.24 lb (0.1 kg) Sensor Unit: 0.49 lb (0.22 kg)
