User manual for the Axis Communications P1214 Mini HDTV Pinhole Indoor 0532-001
The user manual for the Axis Communications P1214 Mini HDTV Pinhole Indoor 0532-001 provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

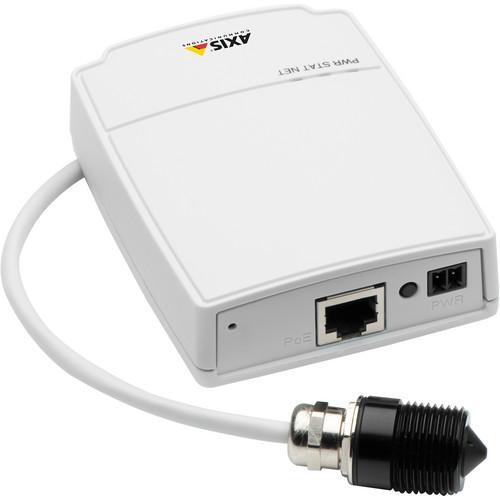

The Axis Communications P1214 Mini HDTV Pinhole Indoor Network Camera is a small-sized, high-performance device perfect for covert installations or where a discreet and compact surveillance solution is required.
This camera provides crystal-clear HDTV 720p image quality at full frame rate. It also delivers multiple, individually configurable video streams in H.264 compression, which optimizes bandwidth and storage needs without compromising image quality.
The form factor and small size offer excessive flexibility. The sensor unit and main unit are connected by a 26’ (8 m) cable, providing flexibility to place the sensor unit in one place and the main unit elsewhere.
This camera also offers powerful event management capabilities with intelligent video features such as tampering alarm and motion detection in addition to the AXIS Camera Application platform.
The camera can be powered either over Ethernet or by external power supply. Furthermore, the camera includes support for edge storage with the built-in microSD / microSDHC memory card slot.
P1214 can be mounted behind any wall, with just a small opening for the lens, or with the whole lens protruding from the wall.
|
If you own a Axis Communications wired ip cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Axis Communications P1214 Mini HDTV Pinhole Indoor 0532-001 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Axis Communications P1214 Mini HDTV Pinhole Indoor 0532-001:
| Image Sensor | 1/4" progressive scan RGB CMOS | | Lens | 3.7 mm: 57° horizontal angle of view, F2.5, fixed iris & focus | | Light Sensitivity | 1.2 to 10000 lux | | Shutter Time | 1/6 s to 1/24,500 s | | Video Compression | H.264 (MPEG-4 Part 10/AVC) Motion JPEG | | Resolution | 1280 x 720 to 320 x 180 | | Frame Rate | H.264 & Motion JPEG: 25 fps with power line frequency 50 Hz
30 fps with power line frequency 60 Hz | | Video Streaming | Multiple, individually configurable streams in H.264 and Motion JPEG
Controllable frame rate and bandwidth VBR/CBR H.264 | | Image Settings | Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, rotation
Text and image overlay, privacy mask and mirroring of images Axis' Corridor Format | | Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log | | Supported Protocols | Open API for software integration, including VAPIX and AXIS Camera Application Platform from Axis Communications
ONVIF
AXIS Video Hosting System (AVHS) with One-Click Camera Connection | | Intelligent Video | Video motion detection, active tampering alarm
AXIS Camera Application Platform enabling installation of additional applications | | Event Trigger | Intelligent video, external inputs, video loss | | Event Action | File upload: FTP, HTTP, network share and email
Notification: email, HTTP and TCP
External output: video recording to edge storage
Pre- and post-alarm video buffering | | Casing | Main Unit: Polycarbonate casing
Sensor Unit: Aluminum casing | | Memory | 256 MB RAM, 128 MB Flash | | Power | Power over Ethernet IEEE 802.3af Class 2 (maximum 6.49 W) 8 to 28 VDC maximum 4.7 W | | Connectors | RJ-45 for 10BASE-T/100BASE-TX PoE
RJ-12 for the sensor unit
Terminal blocks for power, 1 alarm input and 1 output | | Edge Storage | microSD / microSDHC memory card slot (card not included)
Support for recording to network share (network-attached storage or file server) | | Operating Conditions | -4 to 122 ºF (-20 to 50ºC)
Humidity 10 to 85% RH (non-condensing) | | Approvals | EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 55024, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22, KCC Class B, EN/IEC 60950-1, IEC 60068-2-6 (Vibration) class 4M4, IEC 60068-2-27 (shock) Class 4M3, IEC 60068-2-1. IEC 60068-2-2, 60068-2-78 Class 3K3 | | Dimensions | Main Unit: 4.1 x 3" (104 x 76 mm)
Sensor Unit: 1.5 x 1.6" (8.5 x 42 mm) | | Weight | Main Unit: 0.24 lb (0.1 kg)
Sensor Unit: 0.49 lb (0.22 kg) | | Package Weight | 1.46 lb | | Box Dimensions (LxWxH) | 9.4 x 6.5 x 2.4" | |
The user manual for the Axis Communications P1214 Mini HDTV Pinhole Indoor 0532-001 can be downloaded in .pdf
format if it did not come with your new wired ip cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Axis Communications users keep a unique electronic library
for Axis Communications wired ip camerass,
where you can use our link to download the user manual for the Axis Communications P1214 Mini HDTV Pinhole Indoor 0532-001.
The user manual lists all of the functions of the Axis Communications P1214 Mini HDTV Pinhole Indoor 0532-001,
all the basic and advanced features and tells you how to use the wired ip cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Axis Communications service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Axis Communications P1214 Mini HDTV Pinhole Indoor 0532-001. User manuals are also
available on the Axis Communications website under Surveillance - Surveillance Video - Wired IP Cameras.
