User manual Axis Communications P3346-V Vandal-resistant Indoor 0370-001

Operating instructions and pdf manual for use - Axis Communications P3346-V Vandal-resistant Indoor 0370-001 User manual, User manual Axis Communications P3346-V Vandal-resistant Indoor 0370-001, Axis, Communications, P3346-V, Vandal-resistant, Ind


User manual for Axis Communications P3346-V Vandal-resistant Indoor 0370-001

Axis Communications P3346-V Vandal-resistant Indoor 0370-001
  • Manufacturer: Axis Communications
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your Axis Communications
  • Settings and expert assistance
  • Contact Axis Communications service
  • Troubleshooting
  • Warranty information
  • Price: 800 USD
We recommend checking out our discussion threads on the Axis Communications P3346-V Vandal-resistant Indoor 0370-001, which address similar problems with connecting and setting up Wired IP Cameras Axis Communications.



User manual for the Axis Communications P3346-V Vandal-resistant Indoor 0370-001

The user manual for the Axis Communications P3346-V Vandal-resistant Indoor 0370-001 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

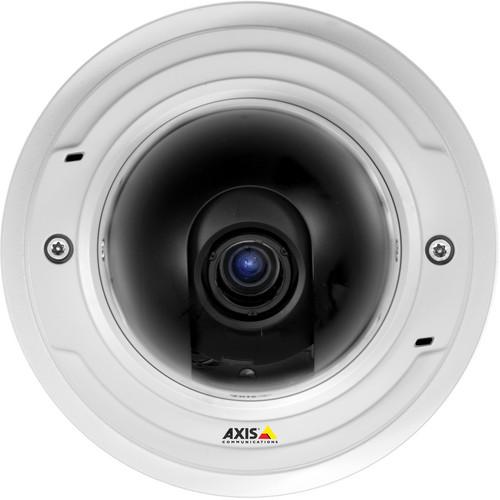

The Axis Communication P3346-V Vandal-resistant Indoor Network Camera (9mm Lens), with a 1/3" progressive scan RGB CMOS imager and a 9mm P-iris fixed lens, delivers high-quality images at a resolution up to 2048 x 1536 (3MP) at HDTV 1080p. The unique P-iris (Precise Iris) ensures consistent iris opening at an optimal level via specialized software, thus providing detailed imagery with optimal sharpness and applicable depth of field. It supports individually configurable multiple H.264 and Motion JPEG video streams at up to 20 fps. Additionally, multi-view streaming enables up to 8 individually cropped out view areas to be streamed simultaneously.
If you own a Axis Communications wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Axis Communications P3346-V Vandal-resistant Indoor 0370-001 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Axis Communications P3346-V Vandal-resistant Indoor 0370-001Download user manual for Axis Communications P3346-V Vandal-resistant Indoor 0370-001
(PDF file, 3.19 MB)
Additional parameters of the Axis Communications P3346-V Vandal-resistant Indoor 0370-001:
Camera
Image Sensor Device 1/3" Progressive scan RGB CMOS
Lens Varifocal with remote zoom and focus, IR corrected, megapixel resolution
9mm: 84-30° view, F1.2, P-Iris
Day/Night Automatically removable infrared-cut filter
Minimum Illumination Color: 0.5 lux, F1.2, B/W: 0.08 lux, F1.2
Shutter time 1/35500 s to 1/6 s
Angle Adjustment Range Pan 360°, tilt 160°, rotation 340°
Video
Video Compression H.264 (MPEG-4 Part 10/AVC)
Motion JPEG
Resolution 2048 x 1536 to 160 x 90
Frame Rate H.264 and Motion JPEG: 3MP mode: 20 fps in all resolutions, HDTV 1080p (1920x1080) and 2MP 4:3 (1600x1200) modes: 30 fps in all resolutions
Video Streaming Multiple, individually configurable streams in H.264 and Motion JPEG
Controllable frame rate and bandwidth
VBR/CBR H.264
Multi-stream Up to 8 individually cropped out view areas. When streaming 5 view areas in VGA resolution, the frame rate is 20 fps per stream in H.264/Motion JPEG (3 MP capture mode)
Digital PTZ, preset positions, guard tour
Image Settings Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, wide dynamic range - dynamic contrast, fine tuning of behavior at low light
Rotation: 0°, 90°, 180°, 270°, including Corridor Format
Text and image overlay, privacy mask, mirroring of images
Audio
Audio Streaming 2-way
Audio Compression AAC LC 8/16 kHz
G.711 PCM 8 kHz
G.726 ADPCM 8 kHz
Configurable bit rate
Audio Input/Output External microphone input or line input, line output
Built-in microphone
Network
Security Password protection, IP address filtering, digest authentication, user access log, IEEE 802.1X network access control, HTTPS encryption
Supported Protocols IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
System Integration
Application Programming Interface Open API for software integration, including the ONVIF
Application Platform from Axis Communication
Support for Axis Video Hosting System (AVHS) with One-Click Camera connection
Intelligent Video Video motion detection, active tampering alarm, audio detection
Support for Axis Camera Application Platform enabling installation of additional applications
Alarm Triggers Intelligent video, external input
Alarm Events File upload via FTP, HTTP and email
Notification via email, HTTP and TCP
External output activation
Video and audio recording to local storage
Pre- and post-alarm video buffering
Installation Software Remote zoom, remote focus, pixel counter
General
Casing Polycarbonate transparent cover
Aluminum inner camera module with encapsulated electronics
Color: white NCS S 1002-B
IK10 impact-resistant aluminum casing
Processor ARTPEC-3
Memory 256 MB RAM, 128 MB Flash
Power Class 2, Power over Ethernet IEEE 802.3af
Connectors RJ-45 10BASE-T/100BASE-TX PoE
Terminal block for 1 alarm input and 1 output
3.5 mm mic/line in, 3.5 mm line out
Local Storage SD/SDHC memory card slot (card not included)
Operating Conditions 32 to 122°F (0 to 50°C), humidity 15 - 85% RH (non-condensing)
Weight 1 lb (450 g)
Approvals EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-Tick AS/NZS CISPR 22, EN 60950-1, IEC 62262 IK10
Packaging Info
Package Weight 3.0 lb
Box Dimensions (LxWxH) 10.9 x 9.9 x 5.3"
The user manual for the Axis Communications P3346-V Vandal-resistant Indoor 0370-001 can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Axis Communications users keep a unique electronic library for Axis Communications wired ip camerass, where you can use our link to download the user manual for the Axis Communications P3346-V Vandal-resistant Indoor 0370-001.

The user manual lists all of the functions of the Axis Communications P3346-V Vandal-resistant Indoor 0370-001, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Axis Communications service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Axis Communications P3346-V Vandal-resistant Indoor 0370-001. User manuals are also available on the Axis Communications website under Surveillance - Surveillance Video - Wired IP Cameras.
