User manual for the Axis Communications P3346-VE Outdoor Network Camera 0371-001
The user manual for the Axis Communications P3346-VE Outdoor Network Camera 0371-001 provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

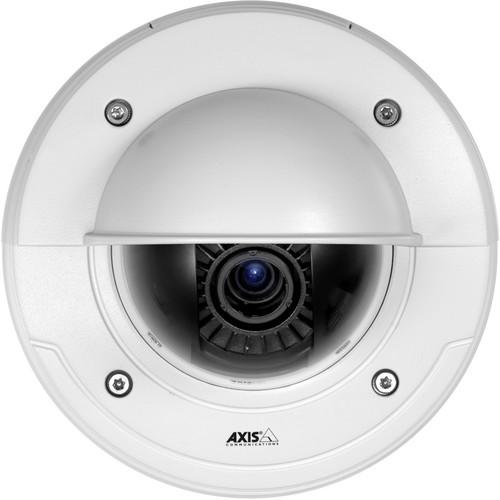

The Axis Communication P3346-VE Outdoor Network Camera (3-9mm Lens, Smoked), with a 1/3" progressive scan RGB CMOS imager and a 3-9mm P-iris varifocal lens, delivers high-quality images at a resolution up to 2048x1536 (HDTV 1080p). The unique P-iris (Precise Iris) ensures consistent iris opening at an optimal level via specialized software, thus providing detailed imagery with optimal sharpness and applicable depth of field. It supports individually configurable multiple H.264 and Motion JPEG video streams at up to 20 fps. Additionally, multi-view streaming enables up to 8 individually cropped out view areas to be streamed simultaneously.
A minimum illumination of 0.5 lux (color) and 0.08 lux (B&W) makes the camera suitable for low light surveillance. Defined by its D/N ICR (infrared cut filter removal) function, the camera switches between color and B&W as per changes in ambient lighting, ensuring accurate color reproduction in daylight and enhanced B&W images at night. While remote focus feature makes installations simpler by eliminating the need for hands-on focusing of the camera, the remote zoom optimizes the camera’s angle of view for the scene. With the pixel counter feature, the installer can ensure the pixel resolution of an object meets the regulatory or specific customer requirements. Besides that, the indoor camera includes features such as privacy masking, text and image overlay, exposure control, and mirroring of images.
With 2-way audio streaming, the camera enables you to communicate with the intruders from the operator's base station. Password protection restricts access to unauthorized persons and IP filtering restricts access to 1 or more user groups. User groups can be created with an IP address range being defined for each group.
Intelligent video capabilities include video motion detection, audio detection, and active tampering alarm. The camera supports an open API (Application Programming Interface) for software integration, including the ONVIF specification for interoperability between network video products. Power is supplied to the camera through PoE (IEEE 802.3af Class 3); hence the camera gets power from the network itself without any extra wiring for auxiliary power outlets.
Adhering to the IP-66 and NEMA 4x-rating, the camera housing is vandal-resistant ensuring uninterrupted surveillance in exposed and high-risk locations.
If you own a Axis Communications wired ip cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Axis Communications P3346-VE Outdoor Network Camera 0371-001 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
H.264 and Motion JPEG: 3MP mode: 20 fps in all resolutions, HDTV 1080p (1920x1080) and 2MP 4:3 (1600x1200) modes: 30 fps in all resolutions
Video Streaming
Multiple, individually configurable streams in H.264 and Motion JPEG Controllable frame rate and bandwidth VBR/CBR H.264
Multi-stream
Up to 8 individually cropped out view areas. When streaming 5 view areas in VGA resolution, the frame rate is 20 fps per stream in H.264/Motion JPEG (3 MP capture mode) Digital PTZ, preset positions, guard tour
Image Settings
Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, wide dynamic range - dynamic contrast, fine tuning of behavior at low light Rotation: 0°, 90°, 180°, 270°, including Corridor Format Text and image overlay, privacy mask, mirroring of images
Open API for software integration, including the ONVIF Application Platform from Axis Communication Support for Axis Video Hosting System (AVHS) with One-Click Camera connection
Intelligent Video
Video motion detection, active tampering alarm, audio detection Support for Axis Camera Application Platform enabling installation of additional applications
Alarm Triggers
Intelligent video, external input
Alarm Events
File upload via FTP, HTTP and email Notification via email, HTTP and TCP External output activation Video and audio recording to local storage Pre- and post-alarm video buffering
Polycarbonate smoked transparent cover Aluminum inner camera module with encapsulated electronics Color: white NCS S 1002-B IP66- and NEMA 4X-rated, IK10 impact-resistant aluminum casing with integrated dehumidifying membrane
Processor
ARTPEC-3
Memory
256 MB RAM, 128 MB Flash
Power
Class 3, Power over Ethernet IEEE 802.3af
Connectors
RJ-45 10BASE-T/100BASE-TX PoE Terminal block for 1 alarm input and 1 output 3.5 mm mic/line in, 3.5 mm line out
Local Storage
SD/SDHC memory card slot (card not included)
Operating Conditions
-40 to 131° F (-40 to 55° C), humidity 15 - 100% RH (condensing)
Approvals
EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-Tick AS/NZS CISPR 22, EN 60950-1, IEC 62262 IK10, IEC 60529 IP66, NEMA 250 Type 4X, IEC 62262 IK10
The user manual for the Axis Communications P3346-VE Outdoor Network Camera 0371-001 can be downloaded in .pdf
format if it did not come with your new wired ip cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Axis Communications users keep a unique electronic library
for Axis Communications wired ip camerass,
where you can use our link to download the user manual for the Axis Communications P3346-VE Outdoor Network Camera 0371-001.
The user manual lists all of the functions of the Axis Communications P3346-VE Outdoor Network Camera 0371-001,
all the basic and advanced features and tells you how to use the wired ip cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Axis Communications service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Axis Communications P3346-VE Outdoor Network Camera 0371-001. User manuals are also
available on the Axis Communications website under Surveillance - Surveillance Video - Wired IP Cameras.
