User manual for the Axis Communications P3364-VE Tamper-Resistant Outdoor 0482-001
The user manual for the Axis Communications P3364-VE Tamper-Resistant Outdoor 0482-001 provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

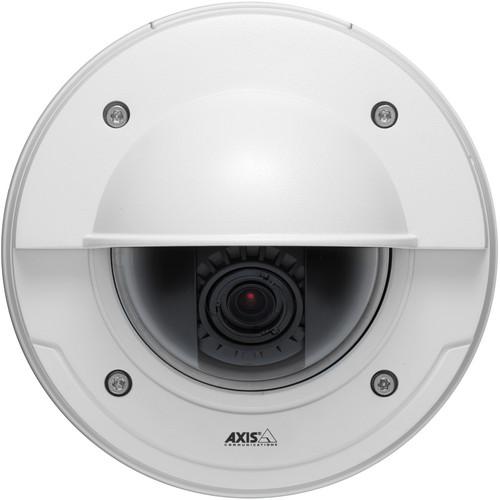

The Axis Communications P3364-VE Tamper-Resistant Outdoor Fixed Dome Camera (6mm Lens) is housed in a casing that is strong enough to withstand up to 20 Joules, which is equivalent to a 5 kg weight being dropped on the camera from a height of 40 cm. Furthermore, the camera’s aluminum casing is IP66- and NEMA 4X-rated. This means that camera is well-protected against corrosion, windblown dust and rain, splashing water, hose-directed water, and damage from external ice formation. It can also operate in harsh conditions ranging from -40 to 131°F (-40 to 55°C). Additionally, the P3364-VE camera has a built-in heater and fan assembly and an integrated dehumidifying membrane that eliminates any humidity caught in the camera casing during installation.
Equipped with a 1/3" RGB CMOS sensor, delivers clear and crisp images in HDTV resolution. Featuring progressive scan technology, rest assured that you will get smooth image capture for scenes with fast moving objects. For video compression, this network camera transmits multiple streams in H.264 and MJPEG video formats at either full frame rates or individually optimized for different quality needs and bandwidth constraints.
Defined by its Day/Night ICR (infrared cut filter removal) function, the network camera switches between color and B&W as per changes in ambient lighting, ensuring accurate color reproduction in daylight and enhanced B&W images at night. While remote focus feature makes installations simpler by eliminating the need for hands-on focusing at the camera, the remote zoom optimizes the camera’s angle of view for the scene. With the pixel counter feature, the installer can ensure the pixel resolution of an object meets the regulatory or specific customer requirements. Besides, the outdoor camera includes features such as privacy masking, text and image overlay, exposure control, and mirroring of images.
This camera features digital pan, tilt, and zoom capabilities for enlarging portions of the image so that they can be inspected closely. The weather shield provides a greater tilt range, making the camera suitable for ceiling-mount installations such as in a cold storage room or under a porch. PTZ operation can be automated with preset positions and guard tours.
Intelligent video capabilities include video motion detection, audio detection, and active tampering alarm. The camera supports an open API (Application Programming Interface) for software integration, including the ONVIF specification for interoperability between network video products. Power is supplied to the camera through PoE (IEEE 802.3af); hence the camera gets power from the network itself without any extra wiring for auxiliary power outlets.
If you own a Axis Communications wired ip cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Axis Communications P3364-VE Tamper-Resistant Outdoor 0482-001 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
H.264 baseline and main profile (MPEG-4 Part 10/AVC) Motion JPEG
Resolution
1280 x 960 (approximately 1.3 MP) to 160 x 90
Frame Rate H.264
25 fps with power line frequency 50 Hz30 fps with power line frequency 60 Hz
Frame Rate Motion JPEG
25 fps with power line frequency 50 Hz30 fps with power line frequency 60 Hz
Video Streaming
Multiple, individually configurable streams in H.264 and Motion JPEG Controllable frame rate and bandwidth VBR/CBR H.264
Pan/Tilt/Zoom
Digital PTZ, preset positions, guard tour
Image Settings
Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, wide dynamic range - dynamic contrast, fine tuning of behavior at low light Rotation: 0°, 90°, 180°, 270°, including Corridor Format Text and image overlay, privacy mask, mirroring of images
Open API for software integration, including the ONVIF Application Platform from Axis Communication Support for Axis Video Hosting System (AVHS) with One-Click Camera connection
Intelligent Video
Video motion detection, active tampering alarm, audio detection Support for Axis Camera Application Platform enabling installation of additional applications
File upload via FTP, HTTP and email Notification via email, HTTP and TCP External output activation Video and audio recording to local storage Pre- and post-alarm video buffering
PTZ preset, guard tour,play audio clip
Edge storage is a technology that allows a network video device to create, control, and manage recordings either locally to an SD/SDHC card, or to network shares such as Network Attached Storage (NAS)
Polycarbonate transparent cover Aluminum inner camera module with encapsulated electronics Color: white NCS S 1002-B Tamper-resistant polycarbonate casing
IP66- and NEMA 4X-rated, IK10 impactresistant aluminum casing with integrated dehumidifying membrane
Processor
ARTPEC-4
Memory
256 MB RAM, 128 MB Flash
Power
Power over Ethernet IEEE 802.3afClass 3; maximum 12.1 W
Connectors
RJ-45 10BASE-T/100BASE-TX PoE Terminal block for 1 alarm input and 1 output 3.5 mm mic/line in, 3.5 mm line out
Edge Storage
SD/SDHC memory card slot (card not included)
Edge storage is a technology that allows a network video device to create, control, and manage recordings either locally to an SD/SDHC card, or to network shares such as Network Attached Storage (NAS)
Approvals
EN 55022:2006+A1 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, IEC/EN 60950-1, VCCI-2008 Class B ITE C-tick AS/NZS CISPR 22, ICES-003 Class B digital, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78IEC 62262 IK10IEC/EN 60950-22, IEC 60068-2-30, IEC 60529 IP66, NEMA 250 Type 4X, EN 50121-4, IEC 62236-4
Operating Conditions
-40 to 131°F (-40 to 55°C), humidity 10 - 100% RH (non-condensing)
