User manual Axis Communications P3364-VE Tamper-Resistant Outdoor 0484-001

Operating instructions and pdf manual for use - Axis Communications P3364-VE Tamper-Resistant Outdoor 0484-001 User manual, User manual Axis Communications P3364-VE Tamper-Resistant Outdoor 0484-001, Axis, Communications, P3364-VE, Tamper-Resistant


User manual for Axis Communications P3364-VE Tamper-Resistant Outdoor 0484-001

Axis Communications P3364-VE Tamper-Resistant Outdoor 0484-001
  • Manufacturer: Axis Communications
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your Axis Communications
  • Settings and expert assistance
  • Contact Axis Communications service
  • Troubleshooting
  • Warranty information
  • Price: 867 USD
We recommend checking out our discussion threads on the Axis Communications P3364-VE Tamper-Resistant Outdoor 0484-001, which address similar problems with connecting and setting up Wired IP Cameras Axis Communications.



User manual for the Axis Communications P3364-VE Tamper-Resistant Outdoor 0484-001

The user manual for the Axis Communications P3364-VE Tamper-Resistant Outdoor 0484-001 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

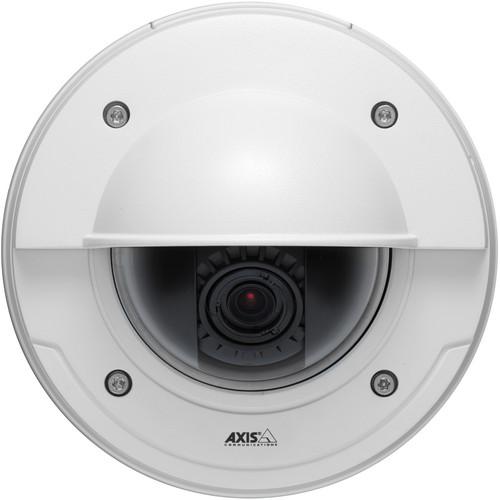

The Axis Communications P3364-VE Tamper-Resistant Outdoor Fixed Dome Camera (12mm Lens) is housed in a casing that is strong enough to withstand up to 20 Joules, which is equivalent to a 5 kg weight being dropped on the camera from a height of 40 cm. Furthermore, the camera’s aluminum casing is IP66- and NEMA 4X-rated. This means that camera is well-protected against corrosion, windblown dust and rain, splashing water, hose-directed water, and damage from external ice formation. It can also operate in harsh conditions ranging from -40 to 131°F (-40 to 55°C). Additionally, the P3364-VE camera has a built-in heater and fan assembly and an integrated dehumidifying membrane that eliminates any humidity caught in the camera casing during installation.

Equipped with a 1/3" RGB CMOS sensor, delivers clear and crisp images in HDTV resolution. Featuring progressive scan technology, rest assured that you will get smooth image capture for scenes with fast moving objects. For video compression, this network camera transmits multiple streams in H.264 and MJPEG video formats at either full frame rates or individually optimized for different quality needs and bandwidth constraints.

Defined by its Day/Night ICR (infrared cut filter removal) function, the network camera switches between color and B&W as per changes in ambient lighting, ensuring accurate color reproduction in daylight and enhanced B&W images at night. While remote focus feature makes installations simpler by eliminating the need for hands-on focusing at the camera, the remote zoom optimizes the camera’s angle of view for the scene. With the pixel counter feature, the installer can ensure the pixel resolution of an object meets the regulatory or specific customer requirements. Besides, the outdoor camera includes features such as privacy masking, text and image overlay, exposure control, and mirroring of images.

This camera features digital pan, tilt, and zoom capabilities for enlarging portions of the image so that they can be inspected closely. The weather shield provides a greater tilt range, making the camera suitable for ceiling-mount installations such as in a cold storage room or under a porch. PTZ operation can be automated with preset positions and guard tours.

Intelligent video capabilities include video motion detection, audio detection, and active tampering alarm. The camera supports an open API (Application Programming Interface) for software integration, including the ONVIF specification for interoperability between network video products. Power is supplied to the camera through PoE (IEEE 802.3af); hence the camera gets power from the network itself without any extra wiring for auxiliary power outlets.
If you own a Axis Communications wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Axis Communications P3364-VE Tamper-Resistant Outdoor 0484-001 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Axis Communications P3364-VE Tamper-Resistant Outdoor 0484-001Download user manual for Axis Communications P3364-VE Tamper-Resistant Outdoor 0484-001
(PDF file, 1.2 MB)
Additional parameters of the Axis Communications P3364-VE Tamper-Resistant Outdoor 0484-001:
Camera
Image Sensor Device 1/3" Progressive scan RGB CMOS
Lens Remote zoom and focus, IR corrected, P-Iris control, megapixel resolution
3.3 - 12 mm varifocal lens at F/1.4; 82 - 24° horizontal angle of view
Day/Night Automatically removable infrared-cut filter
Minimum Illumination Color: 0.15 lux at F/1.4
B&W: 0.03 lux at F/1.4
Shutter time 1/24500 s to 2 s with power line frequency 50 Hz 1/29500 s to 2 s with power line frequency 60 Hz
Angle Adjustment Range Pan 360°, tilt 170°, rotation 340°
Video
Video Compression H.264 baseline and main profile (MPEG-4 Part 10/AVC)
Motion JPEG
Resolution 1280 x 960 (approximately 1.3 MP) to 160 x 90
Frame Rate H.264 25 fps with power line frequency 50 Hz30 fps with power line frequency 60 Hz
Frame Rate Motion JPEG 25 fps with power line frequency 50 Hz30 fps with power line frequency 60 Hz
Video Streaming Multiple, individually configurable streams in H.264 and Motion JPEG
Controllable frame rate and bandwidth
VBR/CBR H.264
Pan/Tilt/Zoom Digital PTZ, preset positions, guard tour
Image Settings Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, wide dynamic range - dynamic contrast, fine tuning of behavior at low light
Rotation: 0°, 90°, 180°, 270°, including Corridor Format
Text and image overlay, privacy mask, mirroring of images
Audio
Audio Streaming Two-way
Audio Compression AAC LC 8/16 kHz
G.711 PCM 8 kHz
G.726 ADPCM 8 kHz
Configurable bit rate
Audio Input/Output External microphone input or line input, line output
Built-in microphone
Network
Security Password protection, IP address filtering, digest authentication, user access log, IEEE 802.1X network access control, HTTPS encryption
Supported Protocols IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
System Integration
Application Programming Interface Open API for software integration, including the ONVIF
Application Platform from Axis Communication
Support for Axis Video Hosting System (AVHS) with One-Click Camera connection
Intelligent Video Video motion detection, active tampering alarm, audio detection
Support for Axis Camera Application Platform enabling installation of additional applications
Alarm Triggers Intelligent video, edge storage events, external input
Alarm Events File upload via FTP, HTTP and email
Notification via email, HTTP and TCP
External output activation
Video and audio recording to local storage
Pre- and post-alarm video buffering

PTZ preset, guard tour,play audio clip

Edge storage is a technology that allows a network video device to create, control, and manage recordings either locally to an SD/SDHC card, or to network shares such as Network Attached Storage (NAS)

Installation Software Remote zoom, remote focus, pixel counter
General
Casing Polycarbonate transparent cover
Aluminum inner camera module with encapsulated electronics
Color: white NCS S 1002-B
Tamper-resistant polycarbonate casing

IP66- and NEMA 4X-rated, IK10 impactresistant aluminum casing with integrated dehumidifying membrane

Processor ARTPEC-4
Memory 256 MB RAM, 128 MB Flash
Power Power over Ethernet IEEE 802.3afClass 3; maximum 12.1 W
Connectors RJ-45 10BASE-T/100BASE-TX PoE
Terminal block for 1 alarm input and 1 output
3.5 mm mic/line in, 3.5 mm line out
Edge Storage SD/SDHC memory card slot (card not included)

Edge storage is a technology that allows a network video device to create, control, and manage recordings either locally to an SD/SDHC card, or to network shares such as Network Attached Storage (NAS)

Approvals EN 55022:2006+A1 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, IEC/EN 60950-1, VCCI-2008 Class B ITE C-tick AS/NZS CISPR 22, ICES-003 Class B digital, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78IEC 62262 IK10IEC/EN 60950-22, IEC 60068-2-30, IEC 60529 IP66, NEMA 250 Type 4X, EN 50121-4, IEC 62236-4
Operating Conditions -40 to 131°F (-40 to 55°C), humidity 10 - 100% RH (non-condensing)
Dimensions (DxWxH) 3.8 x 5.8 x 3.8" (96 x 148 x 96 mm)
Weight 3.3 lb (1.5 kg)
Packaging Info
Package Weight 6.25 lb
Box Dimensions (LxWxH) 16.1 x 11.9 x 6.5"
The user manual for the Axis Communications P3364-VE Tamper-Resistant Outdoor 0484-001 can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Axis Communications users keep a unique electronic library for Axis Communications wired ip camerass, where you can use our link to download the user manual for the Axis Communications P3364-VE Tamper-Resistant Outdoor 0484-001.

The user manual lists all of the functions of the Axis Communications P3364-VE Tamper-Resistant Outdoor 0484-001, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Axis Communications service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Axis Communications P3364-VE Tamper-Resistant Outdoor 0484-001. User manuals are also available on the Axis Communications website under Surveillance - Surveillance Video - Wired IP Cameras.
