User manual Axis Communications P8221 Network I/O Audio Module 0321-004

Operating instructions and pdf manual for use - Axis Communications P8221 Network I/O Audio Module 0321-004 User manual, User manual Axis Communications P8221 Network I/O Audio Module 0321-004, Axis, Communications, P8221, Network, I/O, Audio, Modu


User manual for Axis Communications P8221 Network I/O Audio Module 0321-004

Axis Communications P8221 Network I/O Audio Module 0321-004
  • Manufacturer: Axis Communications
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Additional Accessories - Interface Modules
  • Safety instructions
  • Startup and operation of the interface modules
  • Tips for setting up your Axis Communications
  • Settings and expert assistance
  • Contact Axis Communications service
  • Troubleshooting
  • Warranty information
  • Price: 346 USD
We recommend checking out our discussion threads on the Axis Communications P8221 Network I/O Audio Module 0321-004, which address similar problems with connecting and setting up Interface Modules Axis Communications.



User manual for the Axis Communications P8221 Network I/O Audio Module 0321-004

The user manual for the Axis Communications P8221 Network I/O Audio Module 0321-004 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Additional Accessories - Interface Modules.

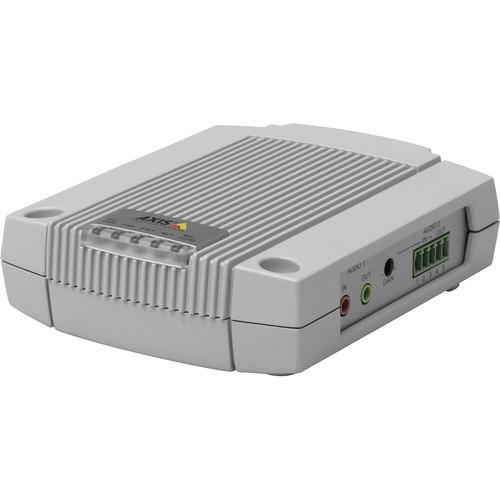

The Axis Communications P8221 Network I/O Audio Module is a compact solution to provide or supplement network surveillance systems with input and output ports along with audio coverage.
If you own a Axis Communications interface modules and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Axis Communications P8221 Network I/O Audio Module 0321-004 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Axis Communications P8221 Network I/O Audio Module 0321-004Download user manual for Axis Communications P8221 Network I/O Audio Module 0321-004
(PDF file, 1.61 MB)
Additional parameters of the Axis Communications P8221 Network I/O Audio Module 0321-004:
Specifications
    Digital I/O I/O Interface
    Ports: 8 configurable I/O ports
    Input ports: min -40 V DC, max 40 V DC
    Output ports: open-drain, max load 100 mA, max voltage 40 V DC

    I/O Functionality
    Input trigger, output toggle/pulse
    Audio Audio Streaming
    Two-way, full and half duplex

    Audio Encoding
    AAC-LC 8, 16 or 32 kHz 8-128 kbit/s
    G.711 PCM 8 kHz 64 kbit/s
    G.726 ADPCM 8 kHz 32 or 24 kbit/s

    Audio Decoding
    G.711 PCM 8 kHz 64 kbit/s
    G.711 PCM 16 kHz 128 kbit/s
    G.726 ADPCM 8 kHz 32 or 24 kbit/s

    Audio Input
    Microphone/Line in
    48 V phantom powered balanced microphone

    Audio Output
    Line out
    Speaker: 0.5 W RMS at 4 Ω

    Audio Functionality
    Audio streaming, play uploaded (WAV, AU) and record (AU) clips
    AU (G.711 μ-law 8-bit 8/16 kHz Mono), WAV (PCM 16-bit 8/16/32 kHz Mono)
    Audio detection trigger
    Network Security
    Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log

    Supported Protocols
    IPv4/v6, HTTP, HTTPS, QoS layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
    System Integration Application Programming Interface
    Open API for software integration, including VAPIX from Axis

    Web Browser
    Configuration and management
    I/O monitor/control
    Two-way audio, synchronize audio with external video source
    Record (video and/or audio) to file (ASF)

    System Requirements
    Windows XP, Vista, 2000, Server 2003
    DirectX 9c or higher, Internet Explorer required for audio support

    Alarm Triggers
    Audio detection, external inputs, on boot

    Alarm Events
    Notification via email, HTTP and TCP
    External output port
    Play audio clip
    General Casing
    Metal casing. Standalone or wall mount

    Processor and Memory
    ARTPEC-3, 64 MB RAM, 128 MB Flash

    Power
    8-34 V DC, max. 8.2 W or
    20-24 V AC, max 13.7 VA or
    Power over Ethernet IEEE 802.3af Class 3

    Connectors
    Ethernet: RJ-45 10BASE-T/100BASE-TX PoE

    Terminal Blocks
    Power (8-34 V DC/ 20-24 V AC)
    I/O
    Balanced microphone
    Speaker out
    RS-232/RS-485/ RS-422 serial port
    3.5mm mic/line in
    3.5mm line out
    Operating Temperature 32 ~ 122°F (0 ~ 50°C)
    Operating Temperature Humidity 20-80% RH (non-condensing)
    Dimensions (HxWxD) 1.3 x 3.9 x 4.6" (32 x 99 x 118mm)
    Weight 0.7 lbs (335g)
    Packaging Info
    Package Weight 1.9 lb
    Box Dimensions (LxWxH) 9.9 x 7.3 x 4.2"
    The user manual for the Axis Communications P8221 Network I/O Audio Module 0321-004 can be downloaded in .pdf format if it did not come with your new interface modules, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Axis Communications users keep a unique electronic library for Axis Communications interface moduless, where you can use our link to download the user manual for the Axis Communications P8221 Network I/O Audio Module 0321-004.

    The user manual lists all of the functions of the Axis Communications P8221 Network I/O Audio Module 0321-004, all the basic and advanced features and tells you how to use the interface modules. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Axis Communications service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Axis Communications P8221 Network I/O Audio Module 0321-004. User manuals are also available on the Axis Communications website under Surveillance - Surveillance Video - Additional Accessories - Interface Modules.
