User manual Axis Communications Q7411 1-Channel Video Encoder 0518-004

Operating instructions and pdf manual for use - Axis Communications Q7411 1-Channel Video Encoder 0518-004 User manual, User manual Axis Communications Q7411 1-Channel Video Encoder 0518-004, Axis, Communications, Q7411, 1-Channel, Video, Encoder,


User manual for Axis Communications Q7411 1-Channel Video Encoder 0518-004

Axis Communications Q7411 1-Channel Video Encoder 0518-004
  • Manufacturer: Axis Communications
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders
  • Safety instructions
  • Startup and operation of the video encoders & decoders
  • Tips for setting up your Axis Communications
  • Settings and expert assistance
  • Contact Axis Communications service
  • Troubleshooting
  • Warranty information
  • Price: 450 USD

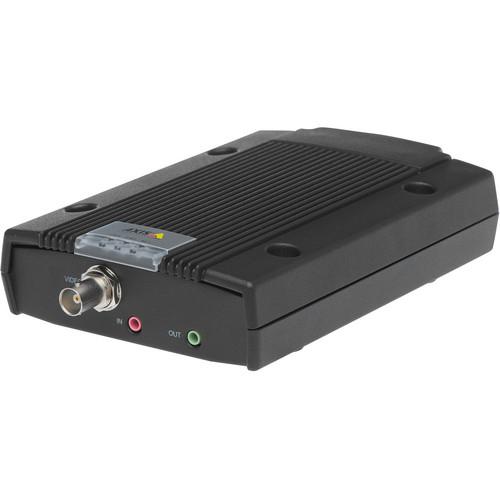

Axis Communications Q7411 1-Channel Video Encoder 0518-004 Axis Communications Q7411 1-Channel Video Encoder 0518-004
Click to enlarge image

We recommend checking out our discussion threads on the Axis Communications Q7411 1-Channel Video Encoder 0518-004, which address similar problems with connecting and setting up Video Encoders & Decoders Axis Communications.



User manual for the Axis Communications Q7411 1-Channel Video Encoder 0518-004

The user manual for the Axis Communications Q7411 1-Channel Video Encoder 0518-004 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders.

Bring your analog cameras into the digital age with the Q7411 1-Channel Video Encoder from Axis Communications. It is a fully-featured solution offering H.264 and MJPEG compression for D1 resolutions up to a fast 60 fps. This speedy frame rate guarantees smooth, clear videos in scene with a lot of motion as well as monitor minute changes and details. The device supports multiple streams with independent settings for each and has an RS-485/422 port for PTZ camera control. This model also extends camera control to its coaxial connection, which is compatible with Coaxitron by Pelco.

For intelligent video features the Q7411 has video motion detection and a tampering alarm, as well as audio detection thanks to inputs and outputs that support two-way audio communication. Along with this it has a microSD card slot and NAS support for edge storage and an RJ-45 Ethernet port for networking. Additionally, it has support for 802.3 PoE and it is ONVIF compliant.
If you own a Axis Communications video encoders & decoders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Axis Communications Q7411 1-Channel Video Encoder 0518-004 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Axis Communications Q7411 1-Channel Video Encoder 0518-004Download user manual for Axis Communications Q7411 1-Channel Video Encoder 0518-004
(PDF file, 1.69 MB)
Additional parameters of the Axis Communications Q7411 1-Channel Video Encoder 0518-004:
Specifications
    Video Compression H.264 (MPEG-4 Part 10/AVC) Baseline and Main profile
    Motion JPEG
    Resolutions 176 x 120 to 720 x 576
    Frame Rate 60 fps in all resolutions
    Video Streaming Multiple, individually configurable streams in H.264 and Motion JPEG
    Controllable frame rate and bandwidth, VBR/CBR H.264
    Pan/Tilt/Zoom Wide range of analog PTZ cameras supported
    100 presets / camera, guard tour, PTZ control queue
    Supports Windows compatible joysticks
    Image Settings Compression, color, brightness, contrast
    Rotation: 90°, 180°, 270°
    Aspect ratio correction, mirroring of images, text and image overlay, privacy mask, enhanced de-interlace filter, video termination, anti-aliasing, temporal noise filtering
    Audio
    Audio Streaming Two-way, full duplex and half duplex
    Audio Compression AAC-LC 8 / 16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz Configurable bit rate
    Audio Input / Output 1 x 3.5mm microphone or line input
    1 x 3.5mm line output
    Network
    Security Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
    Supported Protocols IPv4/v6, HTTP, HTTPS, QoS layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
    System Integration
    Application Programming Interface Open API for software integration, including VAPIX and AXIS Camera Application
    Platform from Axis Communications
    ONVIF
    AXIS Video Hosting System (AVHS) with One-Click Camera Connection
    Intelligent Video Video motion detection, active tampering alarm
    AXIS Camera Application Platform enabling installation of additional applications
    Event Trigger Intelligent video, external inputs, video loss, audio detection
    Event Action File Upload: FTP, HTTP, network share and email
    Notification: email, HTTP and TCP
    PTZ preset
    External output activation
    Play audio clip
    Video and audio recording to edge storage
    Pre- and post-alarm video buffering
    Status LED
    Data Streaming Event data
    General
    Casing Aluminum
    Memory 128 MB flash
    RAM 256 MB
    Power Power over Ethernet IEEE 802.3af Class 2
    8 to 28 VDC input, maximum 5.3 W
    Connectors 1 x Analog composite video BNC input
    1 x RJ-45 10BASE-T/100BASE-TX PoE
    1 x Terminal block for four configurable external inputs/outputs
    1 x Terminal block for RS-485/422 (full duplex)
    1 x 3.5 mm jack for microphone or line input (mono)
    1 x 3.5 mm jack for audio output (mono)
    Edge Storage 1 x microSD/SDHC/SDXC memory card slot (supports cards up to 64 GB)
    Support for recording to network share (NAS or file server)
    Operating Conditions Temperature: 32 to 140°F / 0 to 60°C
    Temperature with Power Supply: 32 to 122°F / 0 to 50°C
    Humidity: 10 to 85%, non-condensing
    Approvals EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 50121-4, EN61000-6-1, EN61000-6-2, EN60950-1, FCC Part 15 Subpart B ITE Class B, ICES-003 Class B, VCCI Class B ITE, C-tick AS/NZS CISPR 22, KN22, KN 24, KCC Class B, UL/IEC/EN 60950-1
    Dimensions 6.8 x 4.3 x 1.5" / 172 x 109 x 37 mm
    Weight 1.1 lb / 520 g
    Packaging Info
    Package Weight 2.05 lb
    Box Dimensions (LxWxH) 9.5 x 8.2 x 3.0"
    The user manual for the Axis Communications Q7411 1-Channel Video Encoder 0518-004 can be downloaded in .pdf format if it did not come with your new video encoders & decoders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Axis Communications users keep a unique electronic library for Axis Communications video encoders & decoderss, where you can use our link to download the user manual for the Axis Communications Q7411 1-Channel Video Encoder 0518-004.

    The user manual lists all of the functions of the Axis Communications Q7411 1-Channel Video Encoder 0518-004, all the basic and advanced features and tells you how to use the video encoders & decoders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Axis Communications service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Axis Communications Q7411 1-Channel Video Encoder 0518-004. User manuals are also available on the Axis Communications website under Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders.
