User manual Axis Communications T96A05-V Vandal-Resistant Dome 5032-051

Operating instructions and pdf manual for use - Axis Communications T96A05-V Vandal-Resistant Dome 5032-051 User manual, User manual Axis Communications T96A05-V Vandal-Resistant Dome 5032-051, Axis, Communications, T96A05-V, Vandal-Resistant, Dome


User manual for Axis Communications T96A05-V Vandal-Resistant Dome 5032-051

Axis Communications T96A05-V Vandal-Resistant Dome 5032-051
  • Manufacturer: Axis Communications
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Mounts & Housings - Housings
  • Safety instructions
  • Startup and operation of the housings
  • Tips for setting up your Axis Communications
  • Settings and expert assistance
  • Contact Axis Communications service
  • Troubleshooting
  • Warranty information
  • Price: 129 USD

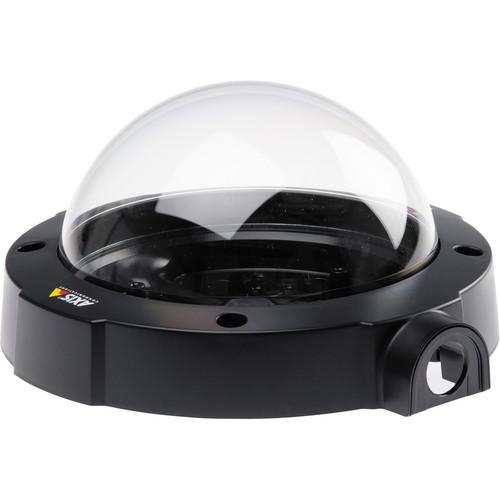

Axis Communications T96A05-V Vandal-Resistant Dome 5032-051 Axis Communications T96A05-V Vandal-Resistant Dome 5032-051
Click to enlarge image

We recommend checking out our discussion threads on the Axis Communications T96A05-V Vandal-Resistant Dome 5032-051, which address similar problems with connecting and setting up Housings Axis Communications.



User manual for the Axis Communications T96A05-V Vandal-Resistant Dome 5032-051

The user manual for the Axis Communications T96A05-V Vandal-Resistant Dome 5032-051 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Mounts & Housings - Housings.

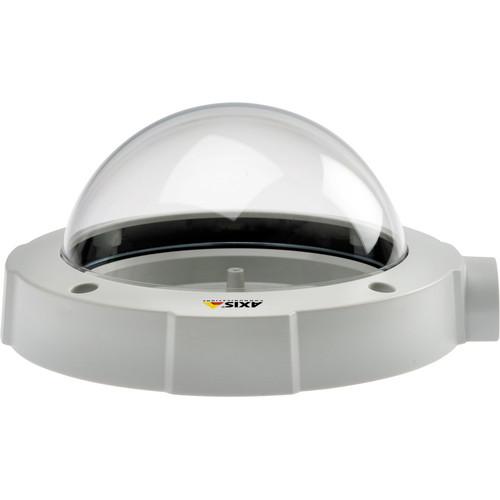

The white T96A05-V Vandal-Resistant Dome Housing for AXIS M50 Series from Axis Communications is designed to protect the Axis M50 (M5013 & M5014) network camera series, which require the mini PTZ cameras to be protected. It has a IK10 rating for protection against impact and vandal acts, as well as IP66 protection rating against the ingress of dust and high pressure water jets from any direction. The T96A05-V Dome Housing finds its best applications in those installations where AXIS M50 cameras are already installed on a hard ceiling, but need to be converted into vandal-resistant cameras. The Axis M50 series cameras feature a bracket, which facilitates the installation of the camera inside this dome housing.

The housing allows the network cable to be routed in 3 different ways: routing the cable through a conduit, along the ceiling; wrapping the cable around a designated cable track; and routing the cable through the ceiling. The network cable is further protected in the ceiling mount for tamper protection. The network cable coupler indoor slim can also be used to extend the network cable while maintaining the IP66 rating of the vandal-resistant housing. The coupler fits inside the housing and the extended cable is routed through the conduit.

While the T96A05-V Dome Housing does not provide any electronic components, it offers a protection rating to defend the cameras in those indoor and semi-outdoor environments where temperature management is not a demand, such as in subways or schools. Quick and easy-to-install, this dome housing is designed for hard ceiling mount and also comes with PoE (Power over Ethernet) connection.
If you own a Axis Communications housings and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Axis Communications T96A05-V Vandal-Resistant Dome 5032-051 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Axis Communications T96A05-V Vandal-Resistant Dome 5032-051:
Supported Cameras M5013 & M5014 PTZ dome network cameras
Casing Base & Cover: Polycarbonate
Dome: Polycarbonate
Elastic Pad & Gaskets: Silicone rubber
Metal Ring: Steel with zinc plating
Environment Indoor
Mounting Hard ceiling
Operating Conditions 32 to 104°F (0 to 40°C)
Humidity 10 to 85% RH (non-condensing)
Protection Rating IEC 60529 IP66, IEC 62262 IK10
Dimensions L x W x Diameter: 6.1 x 1.5 x 8.3" (154.9 x 38.1 x 210.8 mm)
Weight 0.9 lb (0.40 kg )
The user manual for the Axis Communications T96A05-V Vandal-Resistant Dome 5032-051 can be downloaded in .pdf format if it did not come with your new housings, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Axis Communications users keep a unique electronic library for Axis Communications housingss, where you can use our link to download the user manual for the Axis Communications T96A05-V Vandal-Resistant Dome 5032-051.

The user manual lists all of the functions of the Axis Communications T96A05-V Vandal-Resistant Dome 5032-051, all the basic and advanced features and tells you how to use the housings. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Axis Communications service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Axis Communications T96A05-V Vandal-Resistant Dome 5032-051. User manuals are also available on the Axis Communications website under Surveillance - Surveillance Video - Mounts & Housings - Housings.
