User manual Azden SMX-10 Stereo Microphone SMX-10

Operating instructions and pdf manual for use - Azden SMX-10 Stereo Microphone SMX-10 User manual, User manual Azden SMX-10 Stereo Microphone SMX-10, Azden, SMX-10, Stereo, Microphone, SMX-10, Video


User manual for Azden SMX-10 Stereo Microphone SMX-10

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Azden  SMX-10 Stereo Microphone SMX-10
  • Manufacturer: Azden
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Stereo & Specialty
  • Safety instructions
  • Startup and operation of the stereo & specialty
  • Tips for setting up your Azden
  • Settings and expert assistance
  • Contact Azden service
  • Troubleshooting
  • Warranty information
  • Price: 79 USD
We recommend checking out our discussion threads on the Azden SMX-10 Stereo Microphone SMX-10, which address similar problems with connecting and setting up Stereo & Specialty Azden.



User manual for the Azden SMX-10 Stereo Microphone SMX-10

The user manual for the Azden SMX-10 Stereo Microphone SMX-10 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Stereo & Specialty.

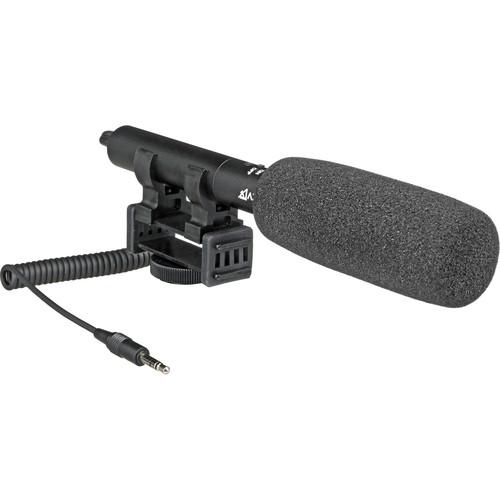

The Azden SMX-10 is a directional stereo microphone for use with standard consumer video cameras. The microphone delivers professional stereo placement and overall audio quality at an affordable price. The SMX-10 measures 6.96" (177mm) in length and includes a windscreen and camera hot-shoe mount. The light weight electret condenser microphone is powered with a single AAA alkaline battery (not included) for up to 400 hours. The coiled cable features a stereo 1/8" (3.5mm) TRS mini connector.
If you own a Azden stereo & specialty and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Azden SMX-10 Stereo Microphone SMX-10 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Azden SMX-10 Stereo Microphone SMX-10:
Transducer Stereo Electret Condenser
Polar Pattern Dual Unidirectional
Frequency Response 100Hz - 18kHz
Dynamic Range (Typical) 66dB
Signal-to-Noise Ratio 60dB (1kHz, 1 Pa.)
Maximum Input Sound Level 100dB
Power Requirements 1.5VDC (AAA size battery) - not included
Output Impedance 1.5kΩ @ 1kHz
Output Connectors 1/8" 3.5mm Connector
Pad No
Low Frequency Roll-Off Built-in (non switchable)
Dimensions 6.96 x .71" (177 x 18.2mm) (Length x Diameter)
Weight 1.83 oz (52g)
Packaging Info
Package Weight 0.35 lb
Box Dimensions (LxWxH) 7.9 x 4.1 x 1.9"
The user manual for the Azden SMX-10 Stereo Microphone SMX-10 can be downloaded in .pdf format if it did not come with your new stereo & specialty, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Azden users keep a unique electronic library for Azden stereo & specialtys, where you can use our link to download the user manual for the Azden SMX-10 Stereo Microphone SMX-10.

The user manual lists all of the functions of the Azden SMX-10 Stereo Microphone SMX-10, all the basic and advanced features and tells you how to use the stereo & specialty. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Azden service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Azden SMX-10 Stereo Microphone SMX-10. User manuals are also available on the Azden website under Pro Audio - Location Sound - Stereo & Specialty.
