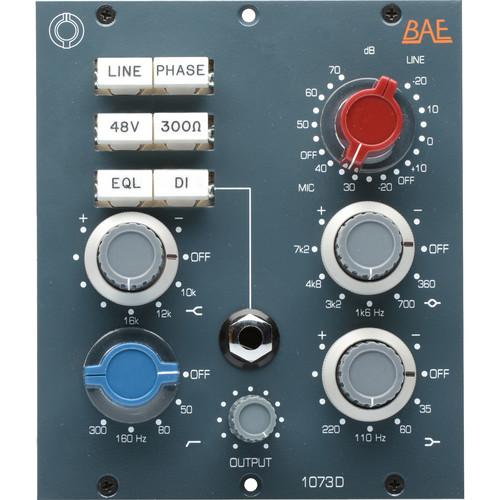

The 1073D from BAE is a hand-wired mic preamp using Canford wire, with St. Ives (Carnhill) transformers, and Elma switches. It can be used by engineers, producers, and musicians for applications such as recording, broadcast TV, sound reinforcement, and more.
If you own a BAE microphone preamps and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the BAE 1073D Deluxe Mic Pre 500 Series Module 1073D in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the BAE 1073D Deluxe Mic Pre 500 Series Module 1073D:
| Input/Output || 1/4" (6.3 mm) DI input |
| Frequency Response || 10 Hz to -3 dB at 55 kHz |
| 3-Band Equalizer || HF: +/-16 dB fixed frequency shelving at 10 kHz, 12 kHz and 16 kHz |
LF: +/-16 dB shelving with selectable frequencies of 35 Hz, 60 Hz, 110 Hz & 220 Hz
MF: +/-18 dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36 kHz, 0.7 kHz, 1.6 kHz, 3.2 kHz, 4.8 kHz & 7.2 kHz
| High Pass Filter || 50 Hz, 80 Hz, 160 Hz, and 300 Hz |
| Mic Input Impedance || 1200/300 ohms |
| Line Input Impedance || 10 kOhms |
| DI Input Impedance || 150 kOhms |
| Output Impedance || 35 ohms |
| Common Mode Rejection Ratio || 100 dB min @ 60 Hz |
| Maximum Output Level || +27.4 dBu @ 600 ohms |
| Power Requirements || 115/230 VAC, 28 W |
| Gain || 0 to 70 dB |
| Equivalent Input Noise || -110 dBu; unweighted 300 kHz bandwidth |
| Dimensions (W x H x D) || 4.5 x 5.25 x 5.5" (11 x 13 x 14 cm) |
| Weight || 5 lb (2.72 kg) |
