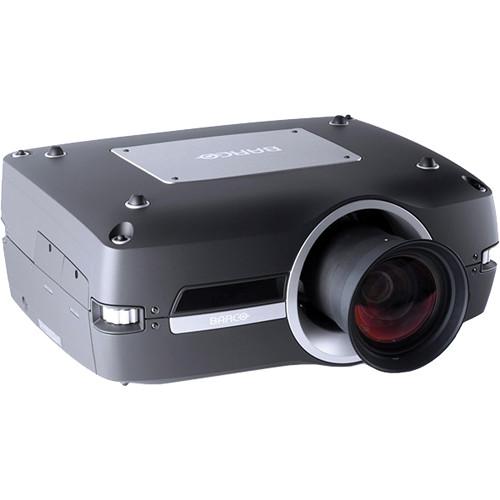

Click to enlarge image
We recommend checking out our discussion threads on the Barco F85 11,000-Lumen WUXGA DLP Projector R9023111,
which address similar problems with connecting and setting up Multimedia Projectors Barco.
User manual for the Barco F85 11,000-Lumen WUXGA DLP Projector R9023111
The user manual for the Barco F85 11,000-Lumen WUXGA DLP Projector R9023111 provides
necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.
Bring versatility to your rental or fixed installation with the pearl white Barco F85 11,000-Lumen WUXGA DLP Projector. It uses separately-sold interchangeable lenses for a variety of throw ratios, image sizes, and zoom ranges. Its component, S-Video, composite, 5-BNC, two VGA, two DVI-D, and three HDMI video inputs will allow you to show images from a number of different sources. It is controllable via Ethernet, RS-232C, or the included IR remote.
If you own a Barco multimedia projectors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Barco F85 11,000-Lumen WUXGA DLP Projector R9023111 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Barco F85 11,000-Lumen WUXGA DLP Projector R9023111:
3x HDMI Video (Input) 1x RCA Component Video (Input) 1x S-Video Video (Input) 1x RCA Composite Video (Input) 2x DVI-D Video (Input) 2x 15-pin VGA Video (Input) 1x 5-BNC Video (Input) 1x Ethernet Control (Input) 1x RS-232C Control (Input) 1x USB Control (Input) 2x 12 V Trigger Control (Output) 1x Proprietary Video (Input) 1x Proprietary Video (Output)
English French German Italian Japanese Korean Norwegian Portuguese Russian Simplified Chinese Spanish Swedish Traditional Chinese
Power Requirements
100-240 VAC
Battery
Not Specified By Manufacturer
Input Current
Not Specified By Manufacturer
DC Output
Not Specified By Manufacturer
Heat Dissipation
3520 BTU
Power Consumption
Maximum: 1080 W
Altitude
0 - 9842' (0 - 3000 m)
Temperature
Operating 50 to 104°F (10 to 40°C) Storage -4 to 140°F (-20 to 60°C)
Dimensions (WxHxD)
23.8 x 9.8 x 248.8" / 60.4 x 25.0 x 632.0 cm
Weight
53.13 lb / 24.1 kg
The user manual for the Barco F85 11,000-Lumen WUXGA DLP Projector R9023111 can be downloaded in .pdf
format if it did not come with your new multimedia projectors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Barco users keep a unique electronic library
for Barco multimedia projectorss,
where you can use our link to download the user manual for the Barco F85 11,000-Lumen WUXGA DLP Projector R9023111.
The user manual lists all of the functions of the Barco F85 11,000-Lumen WUXGA DLP Projector R9023111,
all the basic and advanced features and tells you how to use the multimedia projectors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Barco service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Barco F85 11,000-Lumen WUXGA DLP Projector R9023111. User manuals are also
available on the Barco website under A/V Presentation - Projectors - Multimedia Projectors.
Question and answer discussion forum concerning user instructions and resolving problems with the Barco F85 11,000-Lumen WUXGA DLP Projector R9023111 - no comments have been made yet - be the first to add a comment
