User manual Barco RLM-W8 3-Chip DLP WUXGA Projector w/ RLD R9006311B1

Operating instructions and pdf manual for use - Barco RLM-W8 3-Chip DLP WUXGA Projector w/ RLD R9006311B1 User manual, User manual Barco RLM-W8 3-Chip DLP WUXGA Projector w/ RLD R9006311B1, Barco, RLM-W8, 3-Chip, DLP, WUXGA, Projector, w/, RLD, R90

User manual for Barco RLM-W8 3-Chip DLP WUXGA Projector w/ RLD R9006311B1

Barco RLM-W8 3-Chip DLP WUXGA Projector w/ RLD R9006311B1
  • Manufacturer: Barco
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Barco
  • Settings and expert assistance
  • Contact Barco service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Barco RLM-W8 3-Chip DLP WUXGA Projector w/ RLD R9006311B1, which address similar problems with connecting and setting up Multimedia Projectors Barco.


User manual for the Barco RLM-W8 3-Chip DLP WUXGA Projector w/ RLD R9006311B1

The user manual for the Barco RLM-W8 3-Chip DLP WUXGA Projector w/ RLD R9006311B1 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

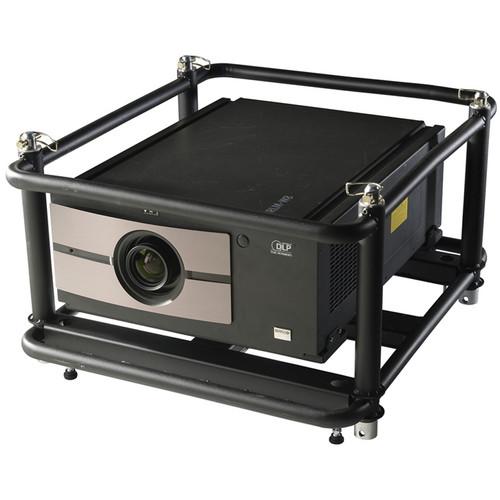

The RLM-W8 3-Chip DLP WUXGA Projector with RLD (0.77:1) Fixed Focal Lens from Barco is best suited for fixed installations and public display venues including independent cinema, live events, educational institutions, staging, and public advertising as well as premium home-theater applications. The projector offers exceptional brightness, and near-silent operation make it perfect for that special occasion where quality and high brightness cannot be compromised.
If you own a Barco multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Barco RLM-W8 3-Chip DLP WUXGA Projector w/ RLD R9006311B1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Barco RLM-W8 3-Chip DLP WUXGA Projector w/ RLD R9006311B1Download user manual for Barco RLM-W8 3-Chip DLP WUXGA Projector w/ RLD R9006311B1
(PDF file, 21.59 MB)
Additional parameters of the Barco RLM-W8 3-Chip DLP WUXGA Projector w/ RLD R9006311B1:
Specifications
    Image Display
    Display System 3-Chip 0.67" / 17.02 mm DLP
    Native Resolution WUXGA - 1920 x 1200
    Supported Resolutions UXGA - 1600 x 1200
    Format NTSC
    HDTV Compatibility 1080p
    Pixels 6,912,000
    Brightness 8000 Lumens
    Uniformity 95%
    Aspect Ratio 16:10
    Contrast Ratio 2200:1
    DLP Link 3D Yes
    Lens
    Lens Not Specified By Manufacturer
    Lens Shift Vertical: 0 ±100%
    Horizontal: 30 ±30%
    Zoom Not Specified By Manufacturer
    Throw Distance Not Specified By Manufacturer
    Throw Ratio 0.77:1
    Features
    Picture-in-Picture Yes
    Ceiling Mountable Yes
    Rear Screen Projection Yes
    Projection Tilt Option Yes
    Built-in Speaker None
    Input/Output Connectors
    Inputs/Outputs 2x HDMI Audio/Video
    5x BNC Composite Video
    1x 3G-SDI Video
    1x SDI Video
    1x 15-pin VGA Video
    1x RCA Composite Audio/Video
    1x S-Video Video
    1x Mini HDMI Audio/Video
    1x Ethernet LAN
    1x RS-232C Control
    General
    Lamp (Bulb) 2x UHP
    Watts 330 W
    Life Normal Mode: 1500 Hours
    Bright Mode: 2000 Hours
    Fan Noise Normal Mode: 39 dB
    Maximum Pixel Clock 165 MHz
    Remote Control Yes
    Power Requirements 90-240 VAC, 50/60 Hz

    90-240V / 50-60Hz Max. power consumption850W STBY <2W
    Power Consumption Normal Mode: 850 W
    Standby Mode: <2 W
    Altitude Not Specified By Manufacturer
    Temperature Operating
    32 to 104°F (0 to 40°C)
    Humidity: 0 - 80%
    Dimensions (WxHxD) 26.0 x 15.0 x 32.3" / 659.9 x 380.0 x 819.9 mm
    Weight 66.1 lb / 29.98 kg
    The user manual for the Barco RLM-W8 3-Chip DLP WUXGA Projector w/ RLD R9006311B1 can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Barco users keep a unique electronic library for Barco multimedia projectorss, where you can use our link to download the user manual for the Barco RLM-W8 3-Chip DLP WUXGA Projector w/ RLD R9006311B1.

    The user manual lists all of the functions of the Barco RLM-W8 3-Chip DLP WUXGA Projector w/ RLD R9006311B1, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Barco service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Barco RLM-W8 3-Chip DLP WUXGA Projector w/ RLD R9006311B1. User manuals are also available on the Barco website under A/V Presentation - Projectors - Multimedia Projectors.
