User manual for the Behringer EUROCOM CL2296 Loudspeaker (Black) CL2296
The user manual for the Behringer EUROCOM CL2296 Loudspeaker (Black) CL2296 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

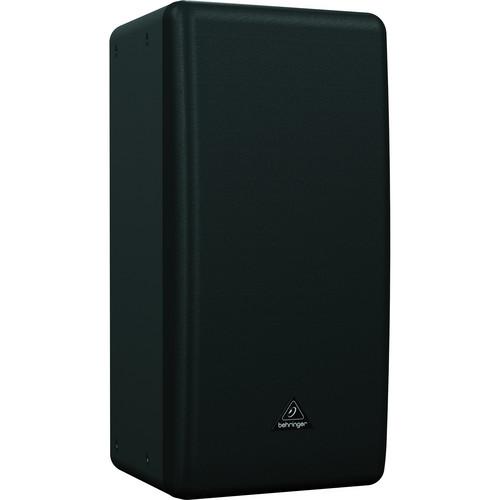

The black EUROCOM CL2296 Loudspeaker from Behringer features a 12" woofer and a 1.35" high-frequency driver. They are designed to provide an even response across the audible spectrum with a continuous sound pressure level (SPL) handling of 119 dB. It can be used in a variety of venues that require fixed speaker installations such as theaters, auditoriums, houses of worship, themed entertainment venues, and sporting venues or for fill and delay systems in large rooms.
The CL2296 has a rotatable waveguide with a 90° by 60° coverage pattern, which allows you to change the speaker orientation from vertical to horizontal. The passive crossover can be bypassed for operation in a bi-amped configuration.
|
If you own a Behringer pa speakers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Behringer EUROCOM CL2296 Loudspeaker (Black) CL2296 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Behringer EUROCOM CL2296 Loudspeaker (Black) CL2296:
| Speakers | 1x 12.0" (304.8 mm) woofer
1x 1.35" (34.29 mm) high-frequency driver | | Horn Waveguide | 90º H x 60º V HF, rotatable | | Inputs | 2x NL4 Speakon connectors
1x 4-position terminal strip | | Frequency Range | 41 Hz to 20 kHz (@ -10 dB) | | Frequency Response | 46 Hz to 18 kHz (+/- 3 dB) | | Crossover | Mode: Bypassable
Frequency: 2 kHz | | Maximum SPL | Continuous: 119 dB
Peak: 125 dB | | Sensitivity | 96 dB (1 W @ 1 m) | | Power Handling | 200 W RMS @ 40 V
Low Frequency Driver: 250 W
High Frequency Driver: 30 W | | Impedance | 8 Ω | | Directivity | Factor: 8.7 (Q)
Index: 9.4 dB | | Dispersion | 90º H x 60º V (Nominal) | | Overload Protection | Full range power limiting to protect drivers and crossovers | | Enclosure | Trapezoidal 15° side angle | | Construction | Laminated birch plywood
Steel grille | | Rigging Points | 23 x M10 threaded points
4 x M8 threaded inserts for OmniMount 60 series | | Dimensions (H x W x D) | 29.5 x 15.4 x 16.9" (74.9 x 39.0 x 42.9 cm) | | Weight | 55.2 lb (25.1 kg) | |
